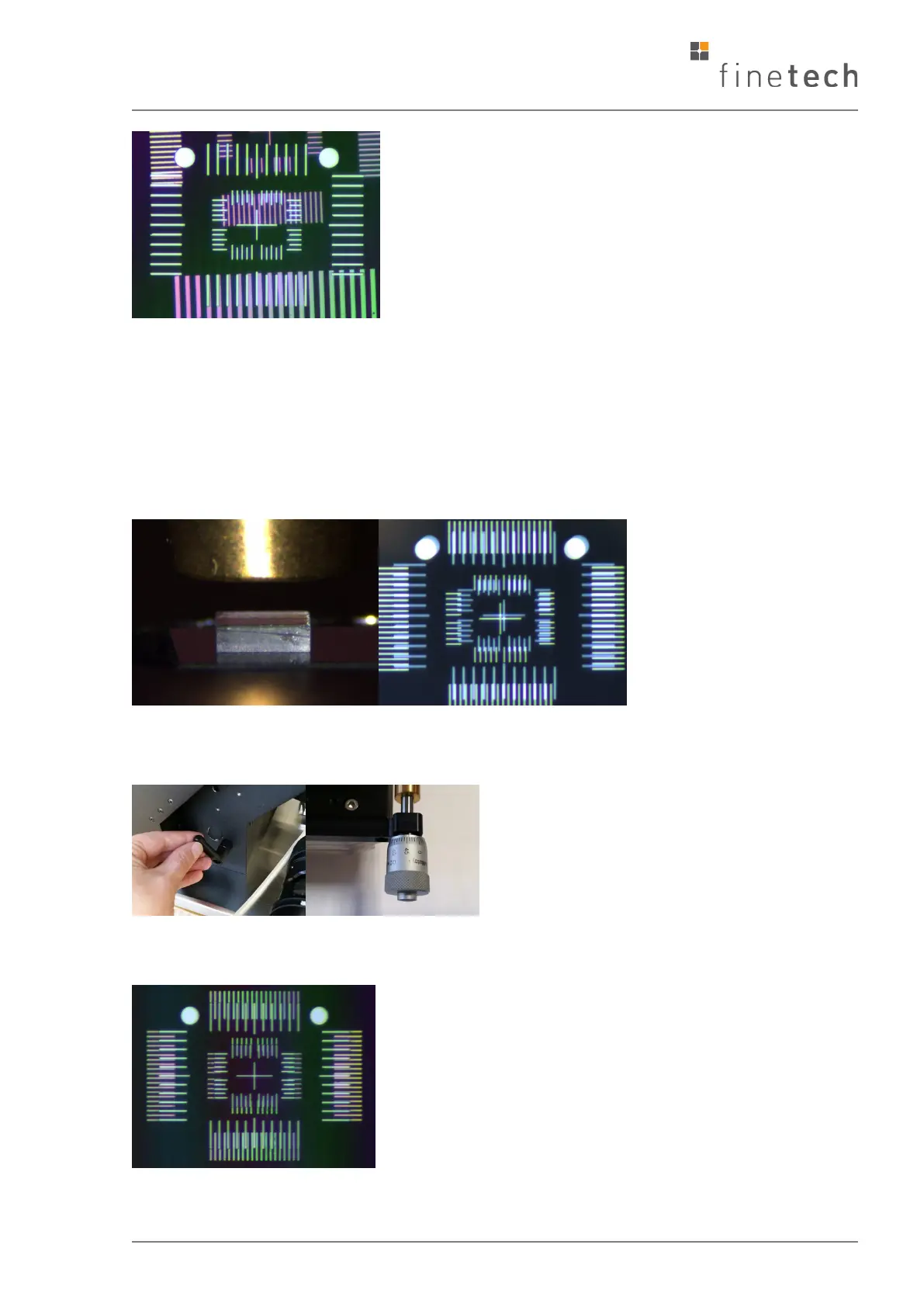

4. Pick up the nonius
Align the center of the nonius glass to the middle of the field of view using a large
magnification. Turn off the vacuum on the placer arm using the foot switch.
Select a low force at the Bonding Force Module.
Pick up the nonius.
Adjust the back focus of the nonius in the placement plate as well as the one of the
picked up nonius.
Align both nonius glasses to each other and place the picked-up one onto the other.
