5.3. Turret

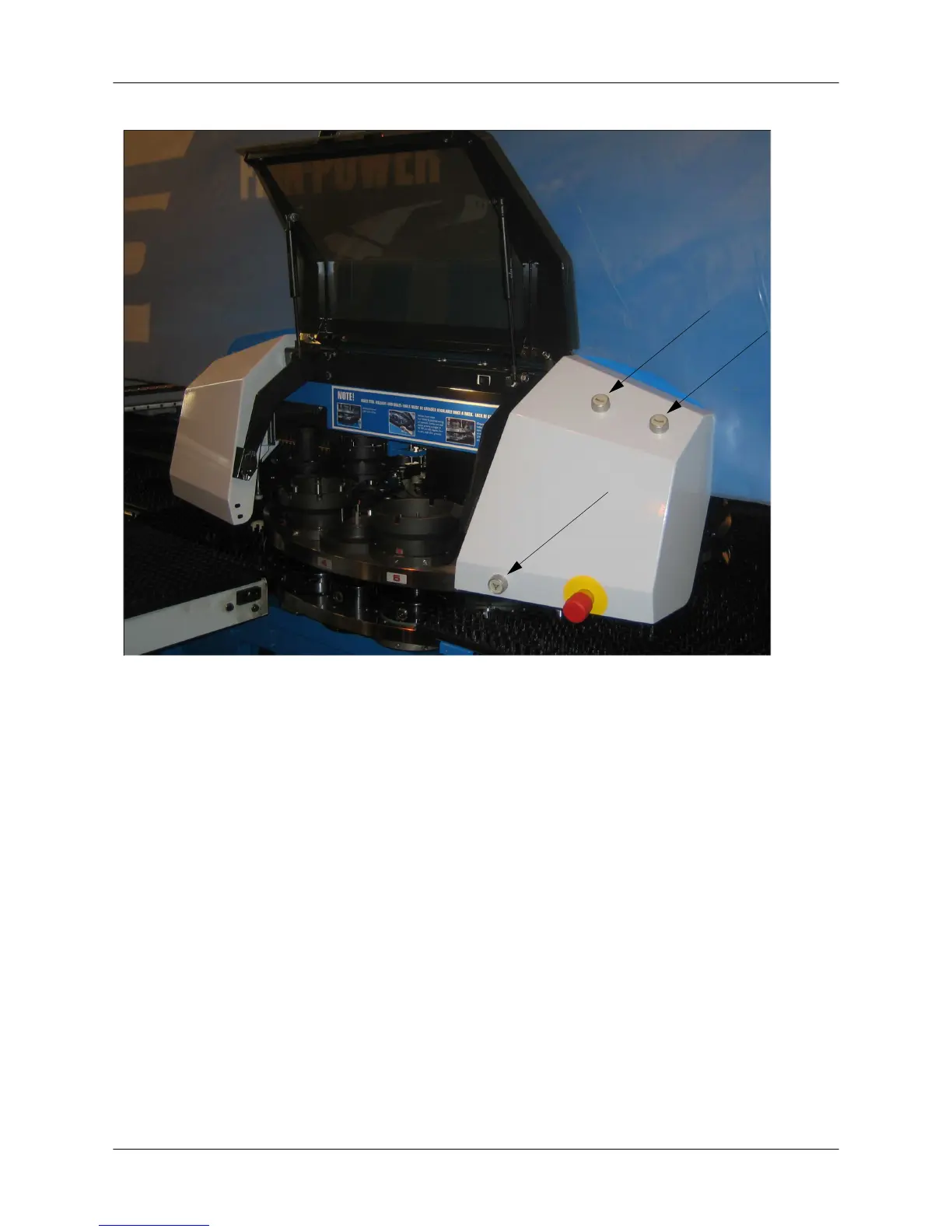

Figure: Turret
• The machine comes with a 20-station turret.
• The turret is completely protected by cover plates.
• The turret comes with separate tool holders, which allows making the turret layout to customer
specification.
• The tool holders are easy to change.
• There is a service door in the brush table to give access to the turret.
• The turret can be rotated manually by pressing the buttons in the turret cover when the turret
service door is open.
• The buttons are operational only in JOG mode.
• When the turret service door is open, other axes cannot be moved.
User Guide - E5 Turret Punch Press
18 (46)
