Finn-Power E5x - Clamps, Brush Tables, and Sheet Handling

7
3
4
11
1
5
10
2
6
9
8

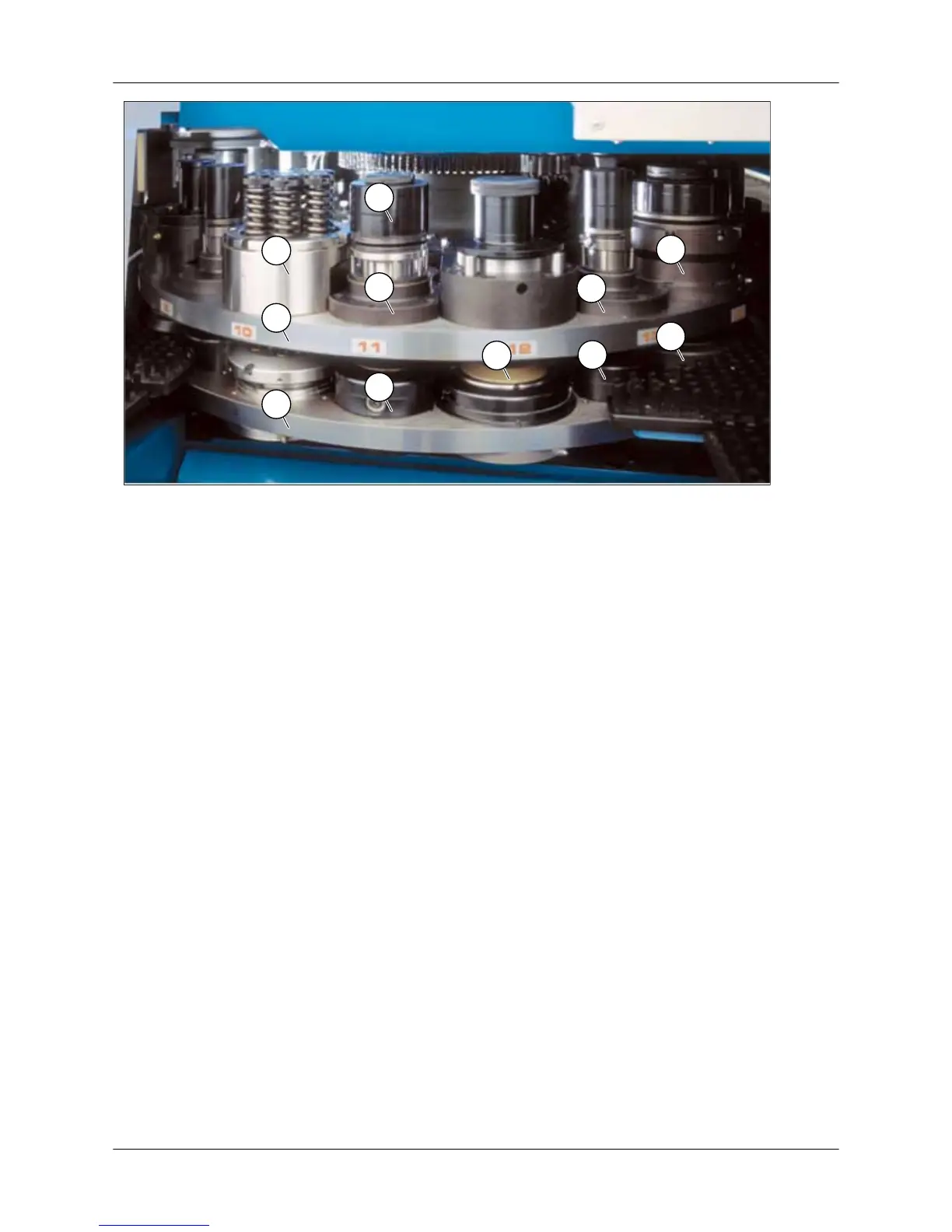

Figure: Turret tools
1. Upper turret plate
2. Lower turret plate
3. Tool holder, upper (B)
4. Tool holder, lower (B)
5. Tool holder, upper (C)
6. Tool holder, lower (C)
7. Index tool holder, upper (Di)
8. Index tool holder, lower (Di)
9. MT6-A/135
Interchangeable tools
10. Tool assembly
11. Die
5.4. Clamps
• The clamps are equipped with a pneumatic central locking system.
• All punch presses have connectors for the installation of an additional clamp (option).
• The programmable clamp setting system (PCS) positions and locks the clamps in the positions
defined in the NC program.
• NC control measures the clamp positions and controls automatically that the clamps do not
collide with anything.
5.5. Brush tables
• The brush table damps sheet vibration and noise, and it does not damage the underside of the
sheet.
• The table on the loading side is equipped with sheet support rollers which rise when a sheet is
being loaded. Thanks to the rollers, it is easy to load sheets and insert them between the clamps.
When the clamps are closed, the sheet support rollers retract automatically.
• The brush table can be equipped with a work chute (option) in front of the turret through which
the parts are dropped from the table to be sorted.
