Finn-Power E5x - Base Machine Safety Devices and Functions

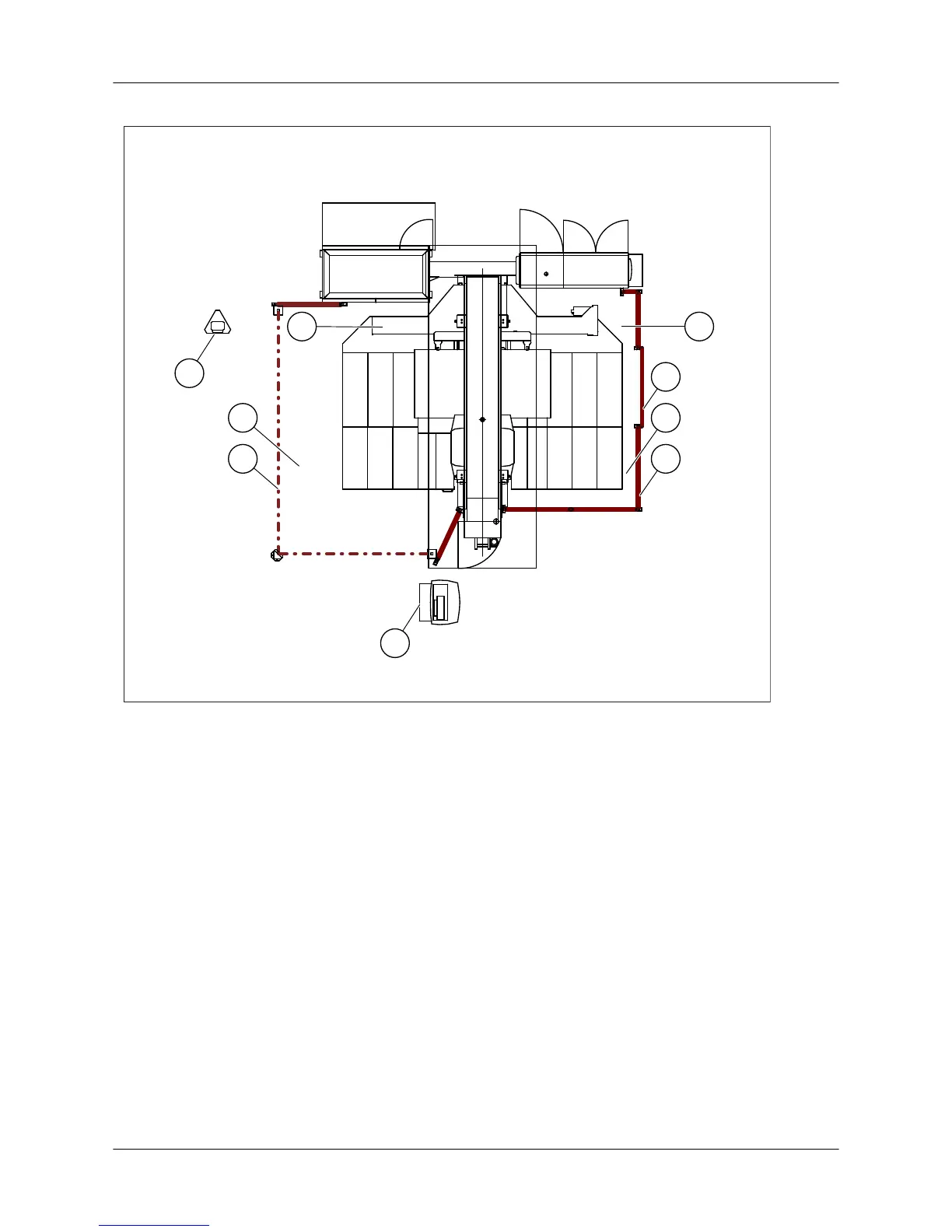

Operation stations and safety zones (E5/C5)
1
2
BA
4
6
3
5
3
Machine operating sides A and B
1. Control desk (operation station 1)
2. Remote control panel (operation station 2)
3. Safety zone
4. Safety fence
5. Safety light beam
6. Service door
2.4. Safety devices and functions of the base machine
The machine delivery includes the following safety devices and functions that trigger alarms and stop
the machine when necessary:
• Emergency stop buttons
• Safety limit switch for the turret service door
• Safety limit switch for the service door (option)
• Safety light beams
In addition, the machine is equipped with the following safety functions to protect it from damage:
1. Central locking and protection area control for clamps
2. Sheet detectors in clamps
