Finn-Power E5x - SU Sorting Unit Control Panel and Modes

Weight SU3: 680 kg
SU3L: 780 kg
630 kg SU9: 680 kg
SU9L: 780 kg
Length of movement SU3: 4140 mm
SU3L: 5300 mm
7224 mm SU9: 4140 mm
SU9L: 5300 mm
10.2. Control panel
Regardless of the machine's safety systems, the control panel of the SU is always similar. Any buttons
related to safety systems not installed on the SU have no function.
1
2 3
4
5
6
4

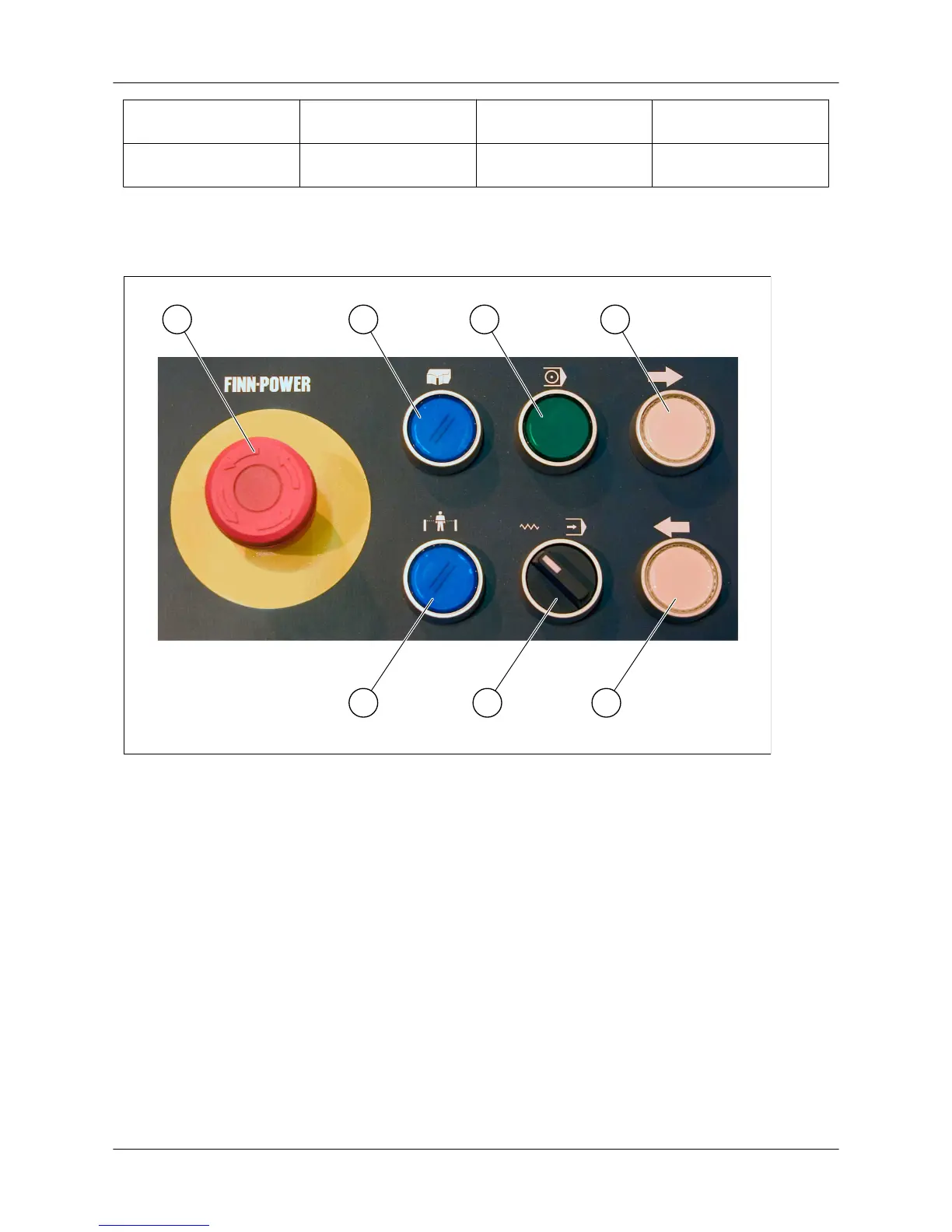

Figure: 4982 SU control panel
1. Emergency stop button
2. SU safety door reset button
3. Automatic mode starting button + SU mode
indicator light
4. Chain manual operation buttons
5. SU safety circuit reset button
6. Manual/automatic mode selector switch
10.2.1. Manual mode
Select the manual mode with the manual/automatic mode selector switch on the SU control panel.
In manual mode, you can operate the chain in either direction by using the chain manual operation
buttons.
