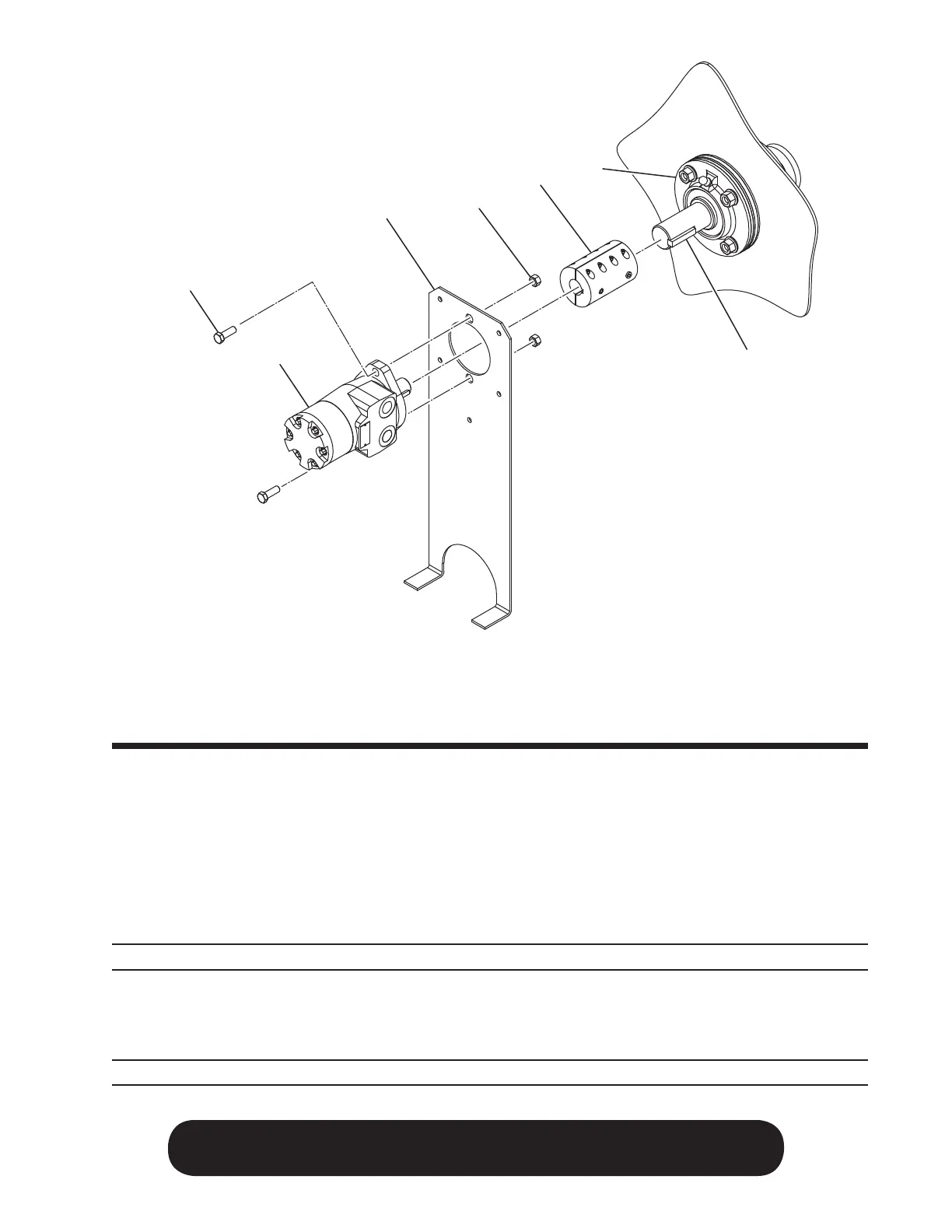

HYDRAULIC AGITATOR DRIVE ASSEMBLY
Ref.
No. Part Number Description No. Req’d
1 1/2 X 1-1/2 in. Lg. Bolt 2
2 080482 Hydraulic Motor 1
3 F60-0016-01 Torque Arrestor Plate 1
4 1/2 Hex Nut 2
5 080523 Rigid Coupling Assembly 1
6 007420 Bearing and Seal Assembly (See Bearing / Agitator Assembly) 2
7 005081-02 Agitator Drive Stub Shaft with 3/8 Keyway 1
NOT SHOWN
F60-0022-02 Agitator Coupling Guard 1
080583 Torque Arrestor Pad 1
080582 Worm Gear Clamp 2
KITS AND MARKERS
Standard Hardware Item - Available at your local hardware store.
To Next Page
