Finn T75 HydroSeeder - Trailer Wiring

T75 MN0929
59
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

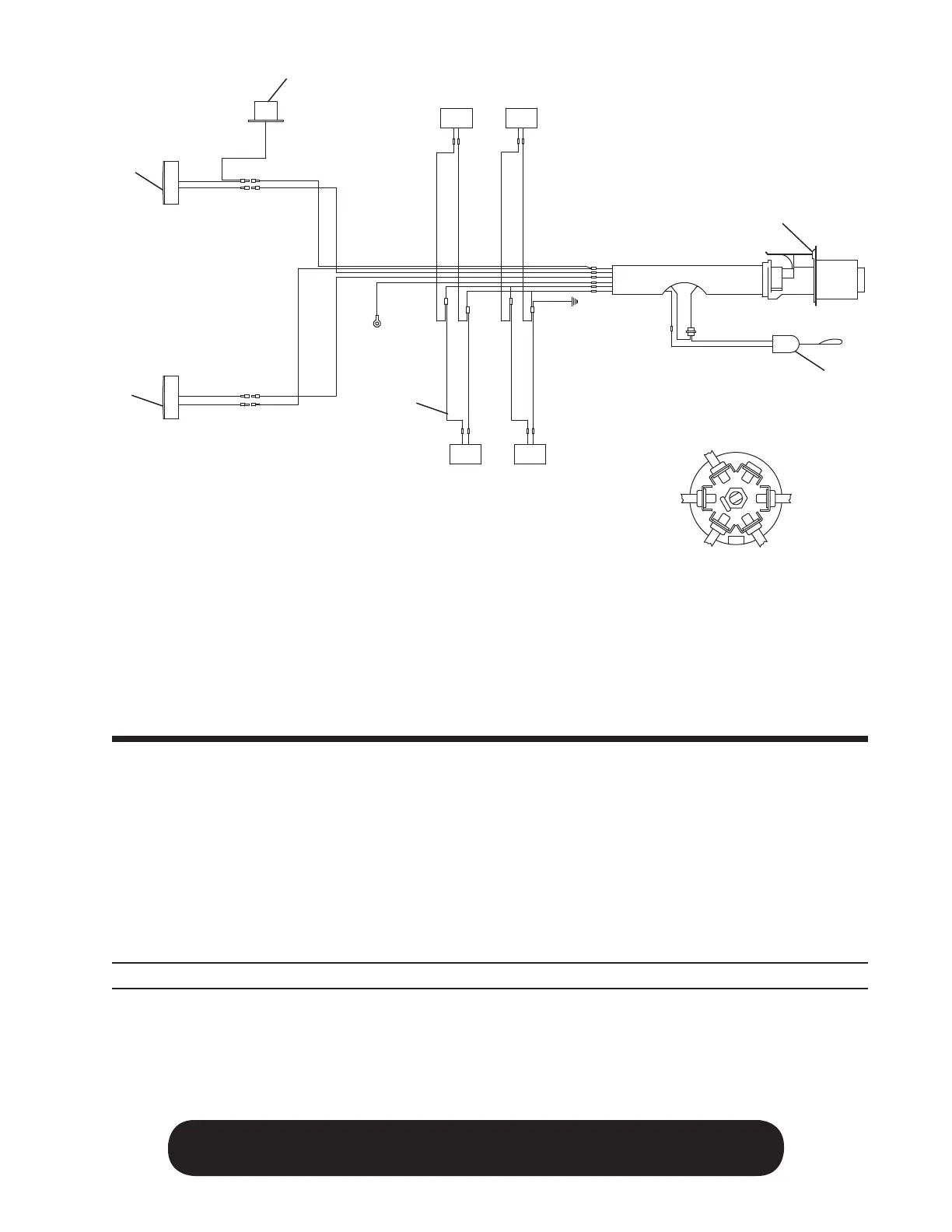

TRAILER WIRING
Ref.
No. Part Number Description No. Req’d
1 075592 7-Blade Trailer Plug 1
2 023424 Breakaway Switch 1
3 005137 Taillight - Left-Hand Side 1
005137-A Lens 1
4 005138 Taillight - Right-Hand Side 1
005137-A Lens 1
5 005436 License Plate Light 1
6 005585-04 Brake Wiring Harness 1
NOT SHOWN
190029 Chain 3.5 ft
005016 "S" Hook 2
005017 Snap Hook 1
004720 License Plate Bracket 1
080715 Trailer Wiring Harness 1
RED
RED
BLACK
BROWN
GREEN
YELLOW
STARTER
BLACK
BROWN
BROWN
1
2
BROWN
BROWN
RED
RED
4
3
5
TAIL LIGHTS
(Brown)
NOT USED
RIGHT TURN
(Green)
ELECTRIC BRAKES
(Black)
GROUND
(White)
LEFT TURN
(Yellow)
TRAILER PLUG CONNECTIONS
WHITE
BLACK
WHITE
WHITE
BLACK
BLACK
WHITE
WHITE
BLACK
6
