Finn T75 HydroSeeder - Control Panel Wiring

T75 MN0929
58
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
IGNITION
SWITCH
M
B
S
A
HOURMETER
SWITCH
CLUTCH
BUTTON
CLUTCH
BUTTON
HORN
CLUTCH
HORN
PLUG
ENGINE
BLACK
WHITE
RED
WHITE
RED
YELLOW
WHITE
BLACK
BLUE
GREEN ORANGE BLACK BLUE
WHITE
6
7
8
1
2
3
4
9
5

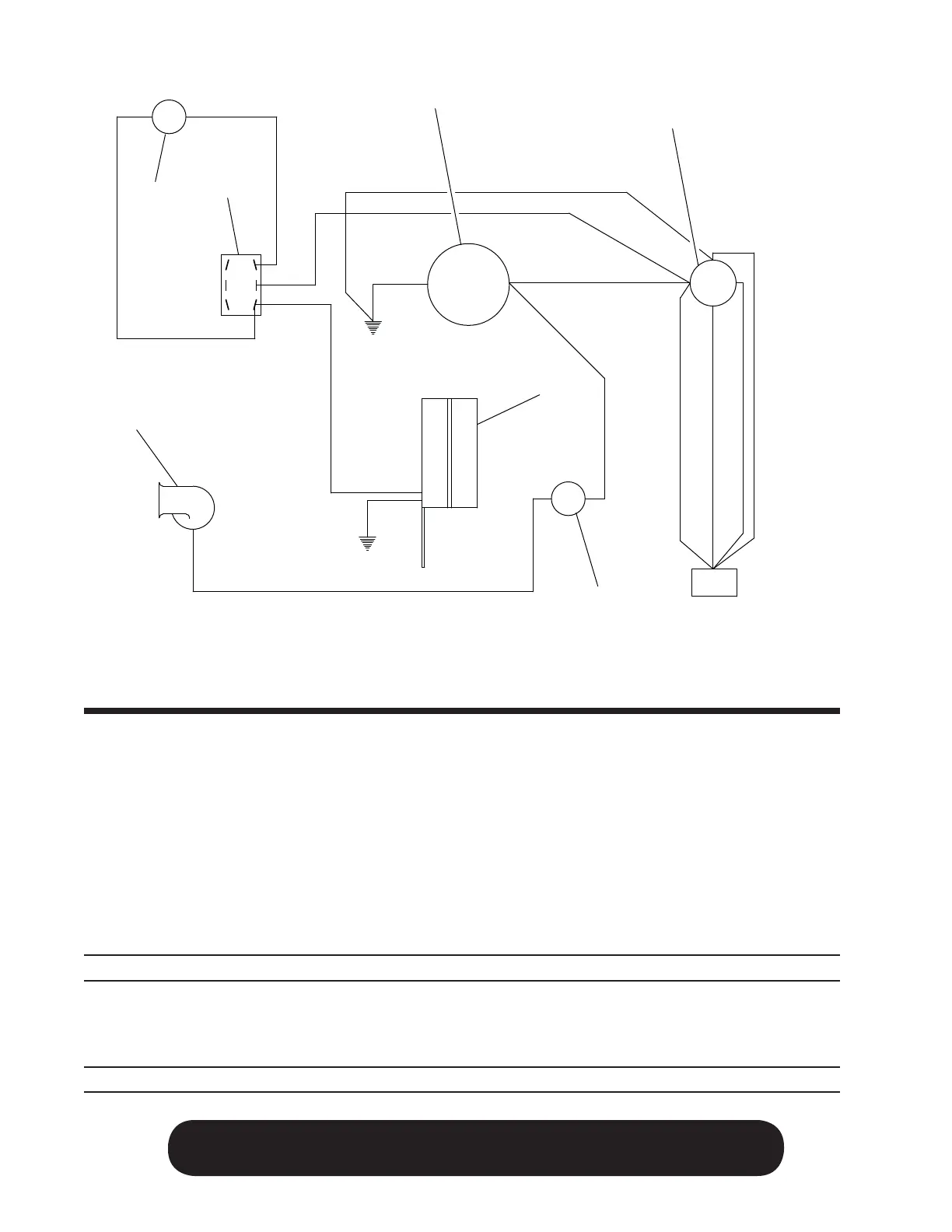

CONTROL PANEL WIRING
Ref. Kit
No. Ref. Part Number Description No. Req’d
1  007274 Hour Meter 1
2
 080654 Ignition Switch 1
3 080654-K Ignition Key 1
4 020886 Horn Button 1
5 006499 Horn 1
6 020886 Clutch Button
(Same pn as Horn Button) 1
7
 080525 Clutch Toggle Switch 1
8
 080526 Clutch Toggle Switch Dust Boot 1
9 035084 Electric Clutch 1
NOT SHOWN
170028 Fuse and Holder 1
080607-03 Control Panel Wiring Harness 1
 F60-0012-01 Control Panel 1
KITS AND MARKERS
080603-01 Control Panel Assembly
