411 Communicator Document #50921 Rev. E 12/09/2008 P/N 50921:E 17
Output Circuits
Channel Labels
Note that space is provided for labeling the function of each channel. Write the function that has been programmed
for each channel in the white boxes located to the right of the channel designator.
2.4 Output Circuits
Relays
The 411 provides one Form-C relay rated for 2.0 amps @ 30 VDC (resistive). The relay is programmable for acti-
vation on fire alarm, host panel trouble, fire supervisory, total communication failure, AC loss and DACT trouble.
Relay Label
Note that space is provided for labeling the function of the relay. Write the function that has been programmed for the
relay in the white box located below the relay designator.

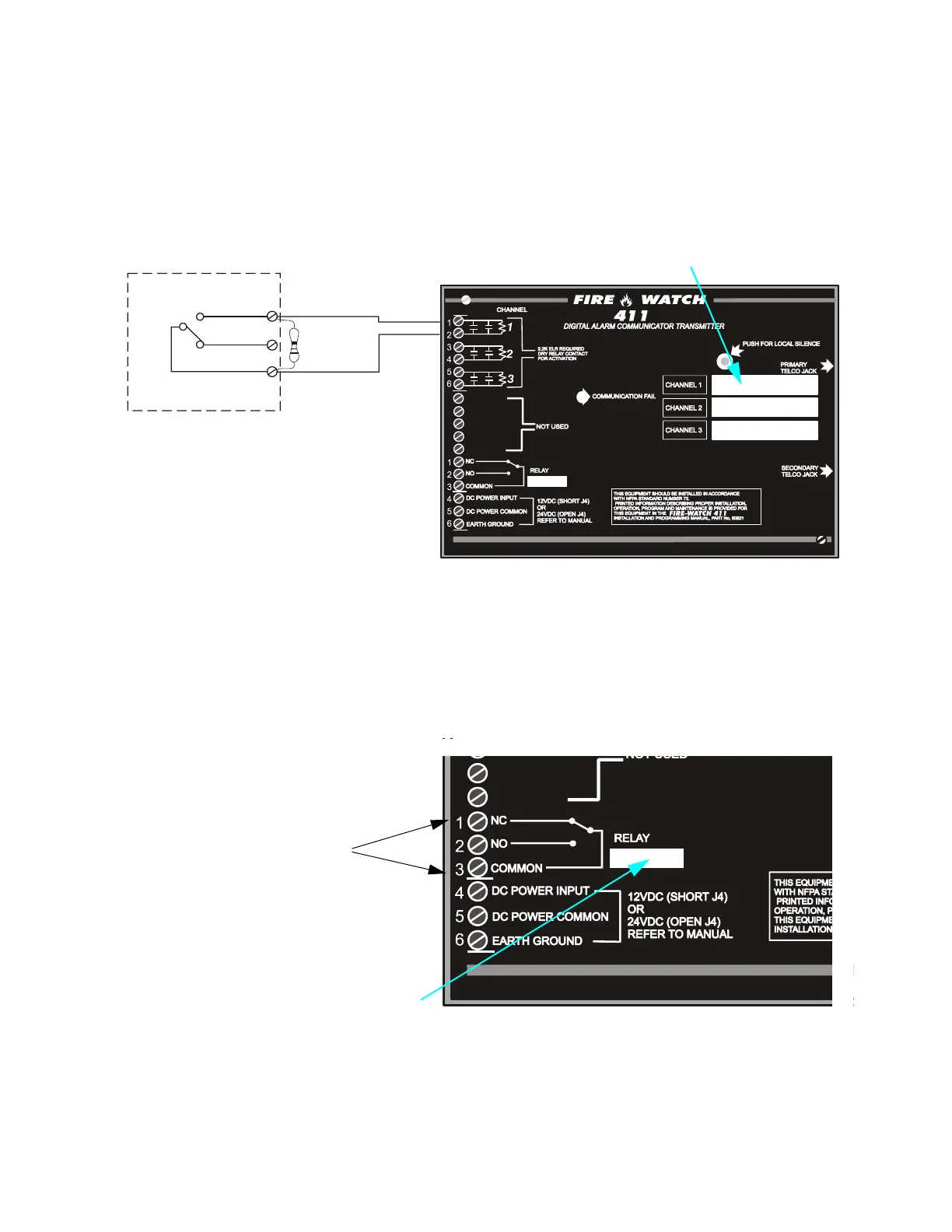

FIGURE 2-3:Style B Channel Connections
Normally Open Contact Device
2.2K EOL Resistor
P/N 27070
Channel/Input Labels
411_CHL.CDR
Inputs are power-limited,
supervised
FIGURE 2-4:Programmable Relay
Relay Label
One Form-C Relay
(nonsupervised)
411udcvr.cdr
