Normal Mode
22
411 Communicator Document #50921 Rev. E 12/09/2008 P/N 50921:E
The 411 can be switched from Normal Mode to any other Mode, provided no channel programmed for fire alarm or
fire supervisory is active, that is, in alarm (shorted). The Fire-Watch 411 Series DACT Programmer must be con-
nected to the 411 in order to change from mode to mode.
3.1.1 Programmer Key Functions
MODE KEY
Pressing the MODE key followed by a valid 4-digit numerical code and the [ENTER/STORE] key selects one of
the five modes of operation. To enter Normal Mode from any other mode, press the MODE key followed by
6676 and then [ENTER/STORE].
6676 spells NORM on a Touch-Tone
®
phone.
If an incorrect key is entered, reenter the proper 4-digit code before
pressing the [ENTER/STORE] key. Note that as
information is entered into the 411, the digits will scroll across the Programmer display from right to left.
___6
__66
_667
6676
A pause of up to 10 seconds between each number is allowed while entering the code.
LAMP TEST KEY
Pressing the Lamp Test key on the Programmer, while the digital communicator is in Normal Mode, will cause the
front panel LED and all segments of the four 7-segment display on the programmer to light. Lamp Test works
only in Normal Mode.

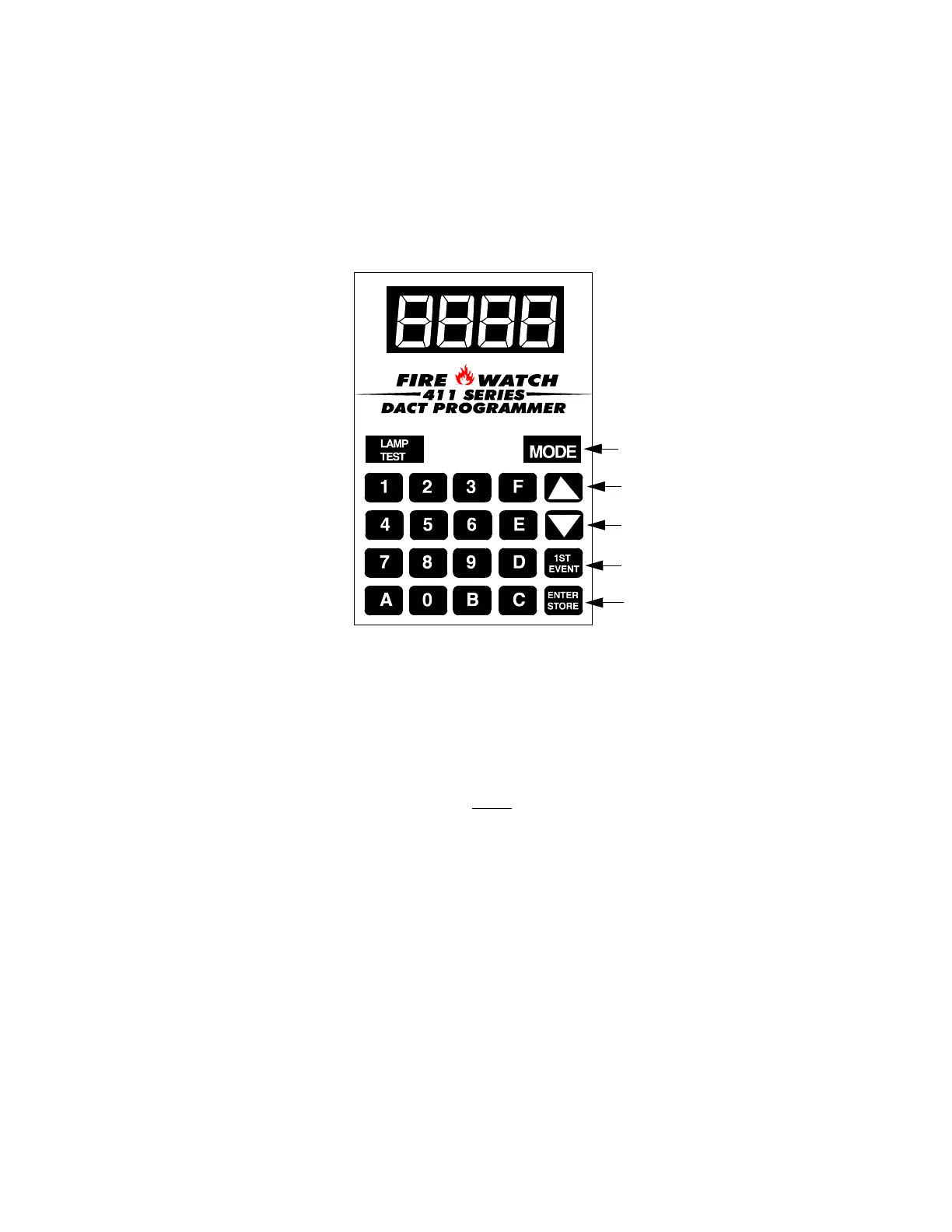

FIGURE 3-1:Programmer Keypad
Select operating mode
Increment memory address
Decrement memory address
One press = first memory address
Two presses = type any address
Save data, go to next address
Address entry keys are 0 to 9
Data entry keys are 0 to 9 and A to F
PR411KEY.CDR
