CHAPTER 1 Product Description
The 411 is a three input/channel, dual line, digital alarm communicator transmitter which can be used as a slave com-
municator with UL listed fire and nonfire control panels. The three inputs are compatible with normally open relay
contacts, require End-Of-Line (EOL) resistors, are supervised and are fully programmable. The 411 interfaces with
the public switched telephone network and is compatible with most central station receivers. A total of fifteen popu-
lar communications formats are supported, including Ademco Contact ID. The communicator also contains a unique
DACT option that eliminates 'dialer runaway'. It restricts the transmission of any trouble event to 10 attempts in a 24
hour period. Power supplied must be 12 or 24 volts, filtered and nonresettable. The Fire-Watch 411 Series DACT
Programmer is available for 411 programming. The 411 comes in a small 6.841" (17.376 cm) X 4.595" (11.671 cm)
X 1.00" (2.54 cm) metal enclosure, providing a variety of mounting options.
1.1 Product Features
• Three input channels
• Dual telephone lines
Dual telephone line voltage detect
Alternating phone lines for 24 hour
test messages
• Program locations for entering up to
20-digit central station and service terminal
telephone numbers
• Surface mount technology
• Compact in size
• Separate external keypad and display
provides means of programming dig-
ital communicator in program mode
provides means of testing phone circuits in troubleshoot mode
• 6.841" (17.376 cm) X 4.595" (11.671 cm) X 1.0" (2.54 cm) metal enclosure facilitates internal and external
control panel mounting
• Communicates vital status of monitored control panel:
fire alarm
host control panel trouble
fire supervisory
AC (mains) power loss (programmable)
other
• Communicates vital status of 411 digital communicator:
digital communicator troubles
telephone Line 1 and 2 voltage fault
Primary Central Station number communication fault
Secondary Central Station number communication fault
system off-normal (local Program Mode entered)
24 Hour normal test
24 Hour abnormal test (24 hour test message with previously reported alarm or trouble still active)
• Trouble Resound - if a trouble is silenced and the cause of the trouble is not cleared, the panel will resound the
trouble buzzer every midnight, until the trouble is cleared.

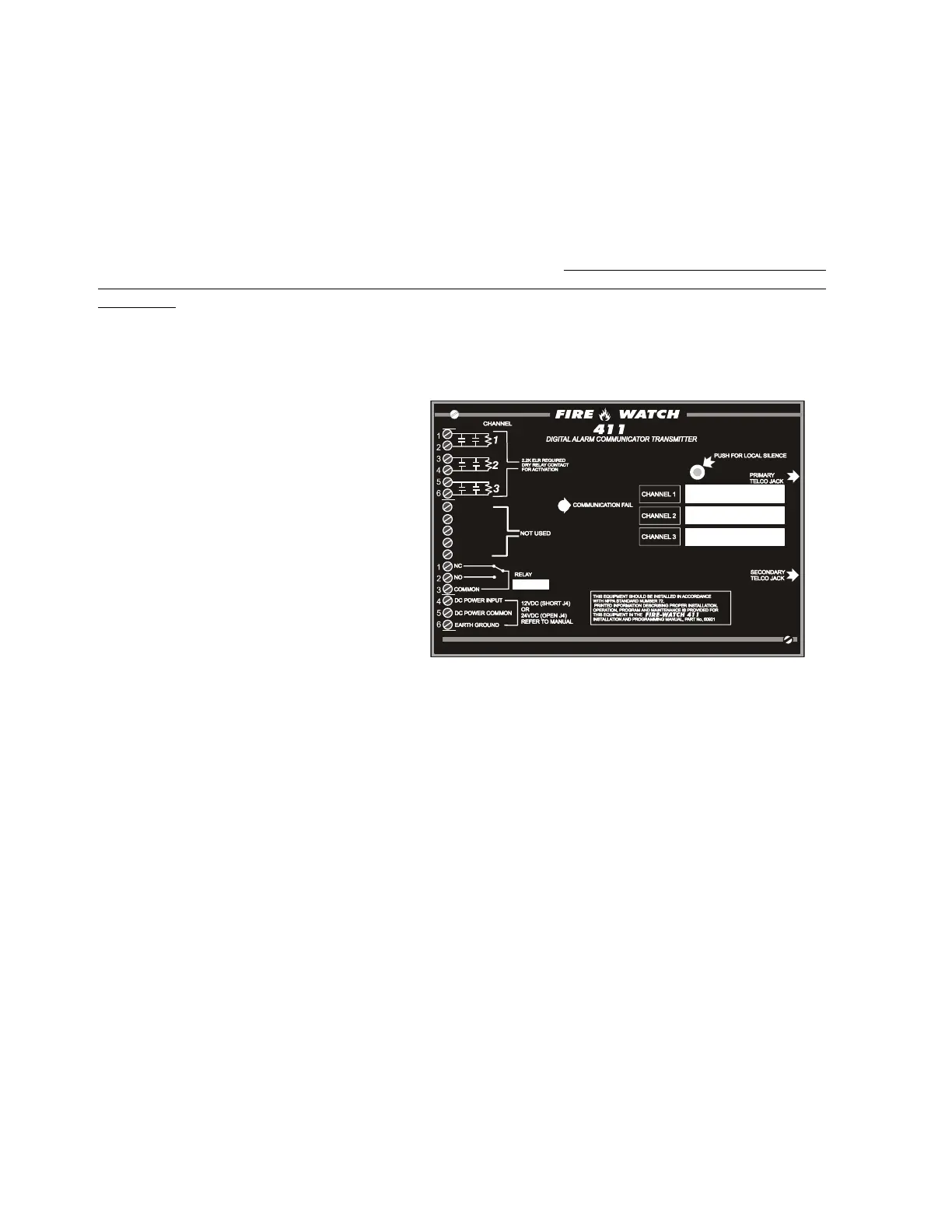

FIGURE 1-1:411 Digital Communicator
