MS-9600LS Series Manual — P/N 52646:B8 11/20/2015 53
Optional Modules and Devices Installation

ANN-I/O Board Layout

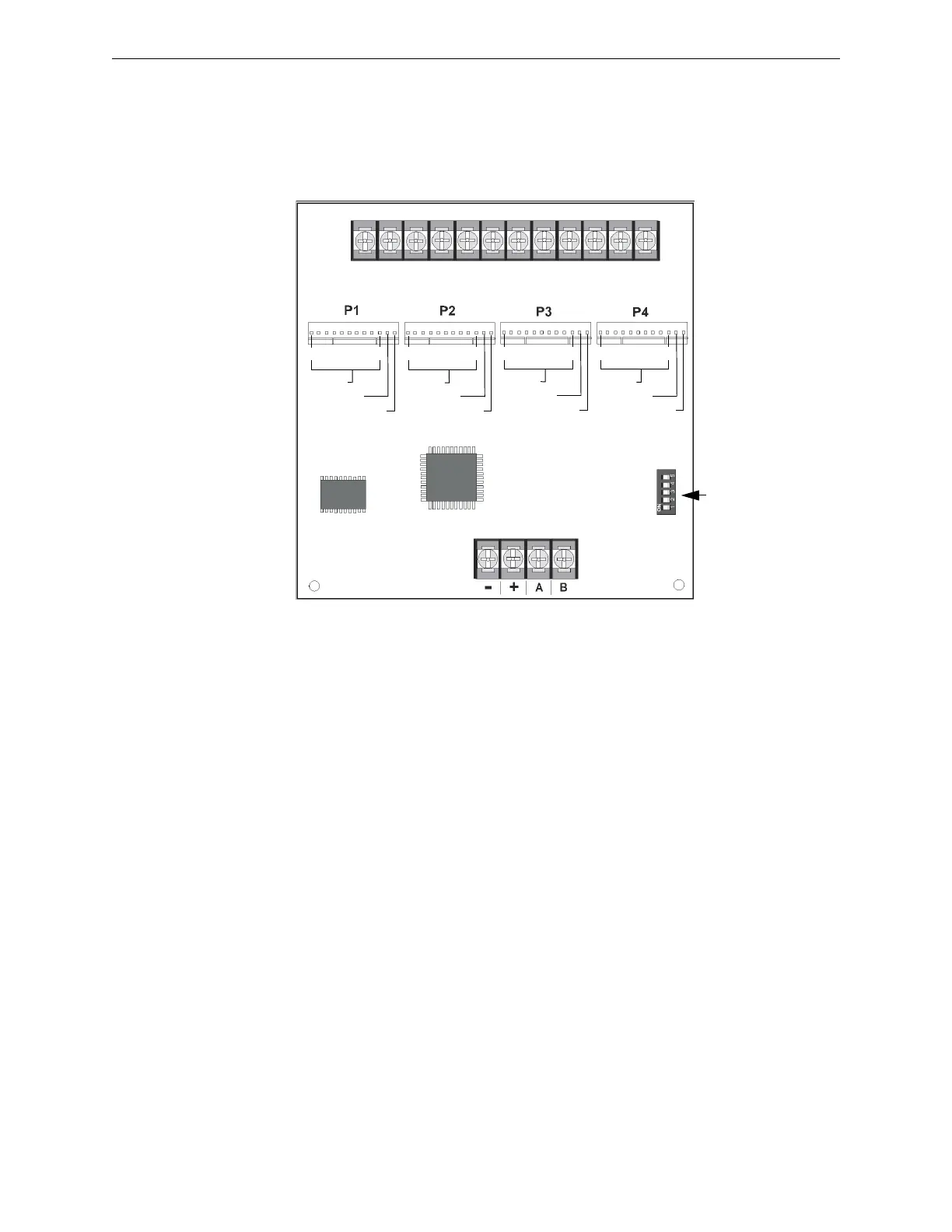

Figure 2.24 illustrates the ANN-I/O board showing locations of screw terminals for connection to
the FACP, pin connectors for connecting LEDs and the DIP switch for selecting the ANN-BUS ID
number.
 Specifications
• Max. ANN-BUS Voltage: 28 VDC
• Max. Current:
• Alarm: 200 mA
• Standby: 35 mA
• Each LED: 10 mA
• Operating Temperature: 32
o
F to 120
o
F (0
o
C to 49
o
C)
• For indoor use in a dry location only
ANN-BUS (ID#)
Address DIP
switch
ANN-BUS Connector
Terminals not used (future)
ann-IObrd2.wmf
LED Out
LED Power
Not Used
LED Out
LED Power
Not Used
LED Out
LED Power
Not Used
LED Out
LED Power
Not Used
Figure 2.24 ANN-I/O Board Layout
1
10
11
20
21
30
31
40
