Below some captures of triggered acquisitions with the following parameters, showing the FPS_Tint_in
(1/Yellow) and the resulting FSYNC_out (2/Blue) signals.
The acquisitions are performed using the following parameters:
- Framerate set to 100 fps
- Tint set to 0.479749 ms
- 4 frames per trigger
- Standard synchronization polarity

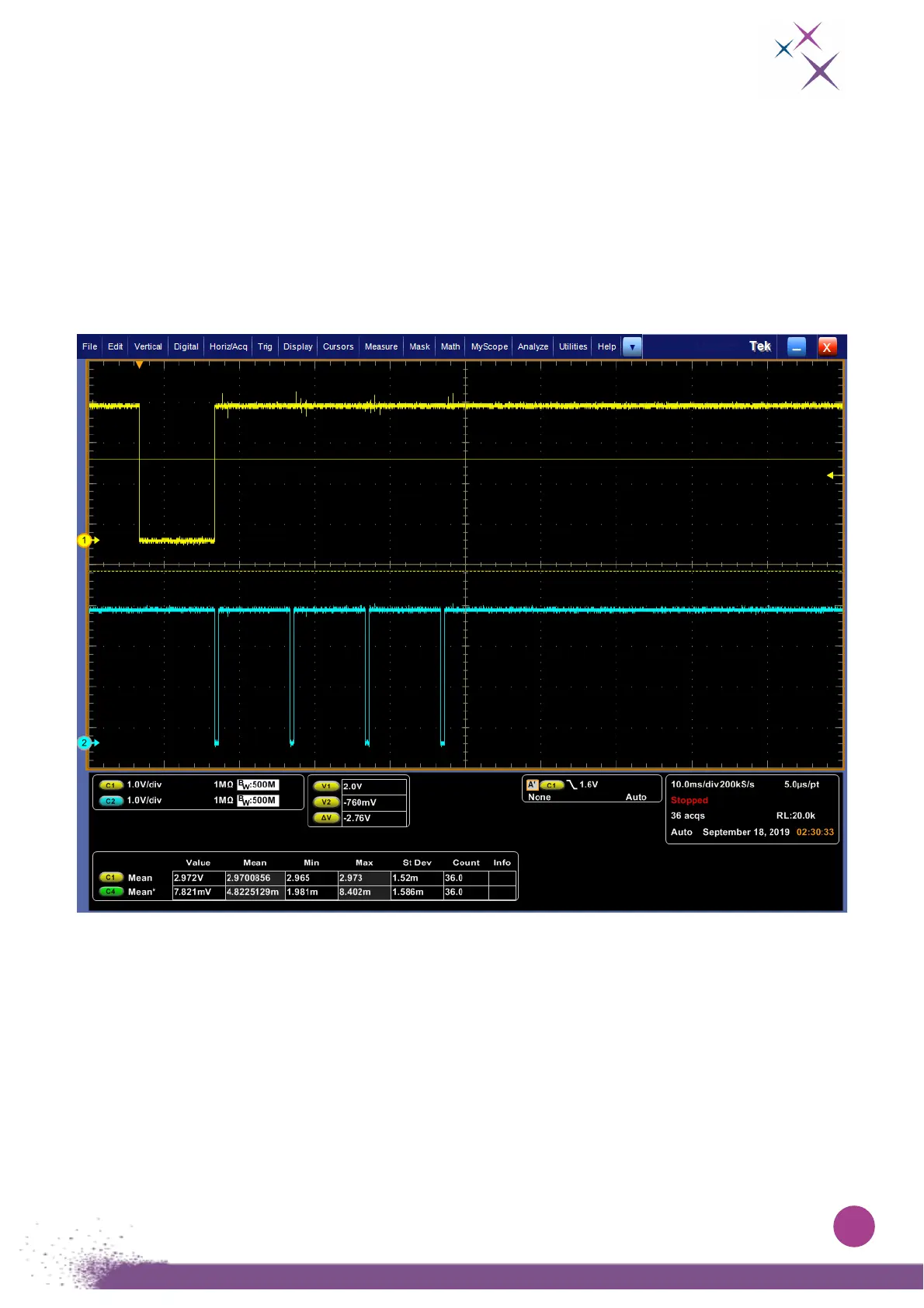

Figure 27:
Full acquisition of 4 frames in triggered acquisition mode
The integration period of the first frame of the burst starts on the rising edge of the FPS_Tint_in
signal (in yellow). The frames are then generated at a framerate of 100 fps. The acquisition ends when
4 frames have been generated.
