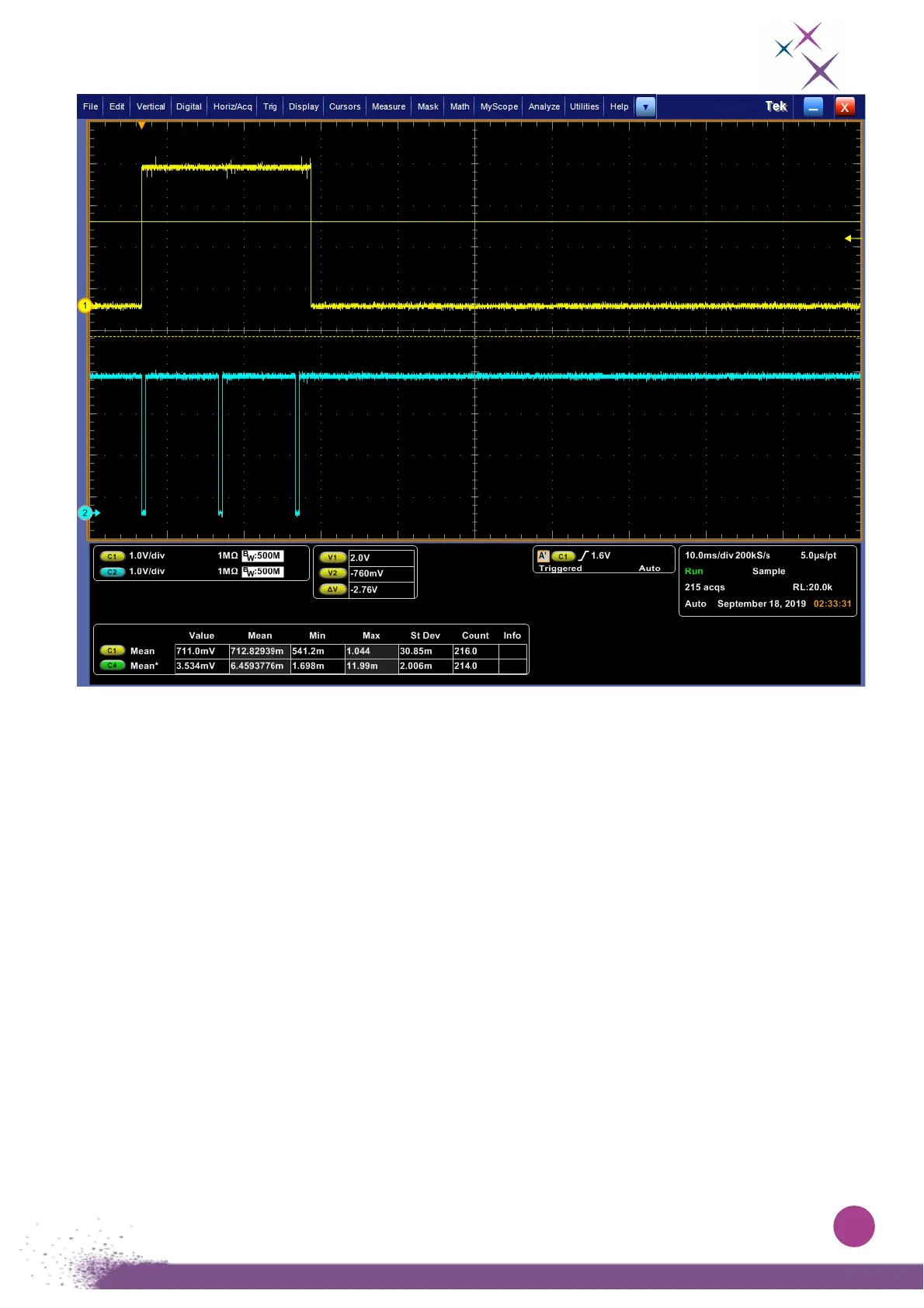

Figure 28:
Aborted acquisition of 4 frames in triggered acquisition mode
The integration period of the first frame of the burst starts on the rising edge of the FPS_Tint_in signal
(in Yellow). The frames are then generated at a framerate of 100 fps. On this figure, the acquisition is
aborted after 3 frames have been produced, due to FPS_Tint_in signal going low before the end of the
acquisition.
Abort of the acquisition is delayed after the current frame of the burst has been complete (integration
time + reading). This ensure that all frames sent by the camera have valid integration times.
