METHOD OF THREADING , ADJUSTMENT AND TENSION .
WARNING !!!
Always disconnect the machine from it’s power source
before threading or adjustment .
Threading .

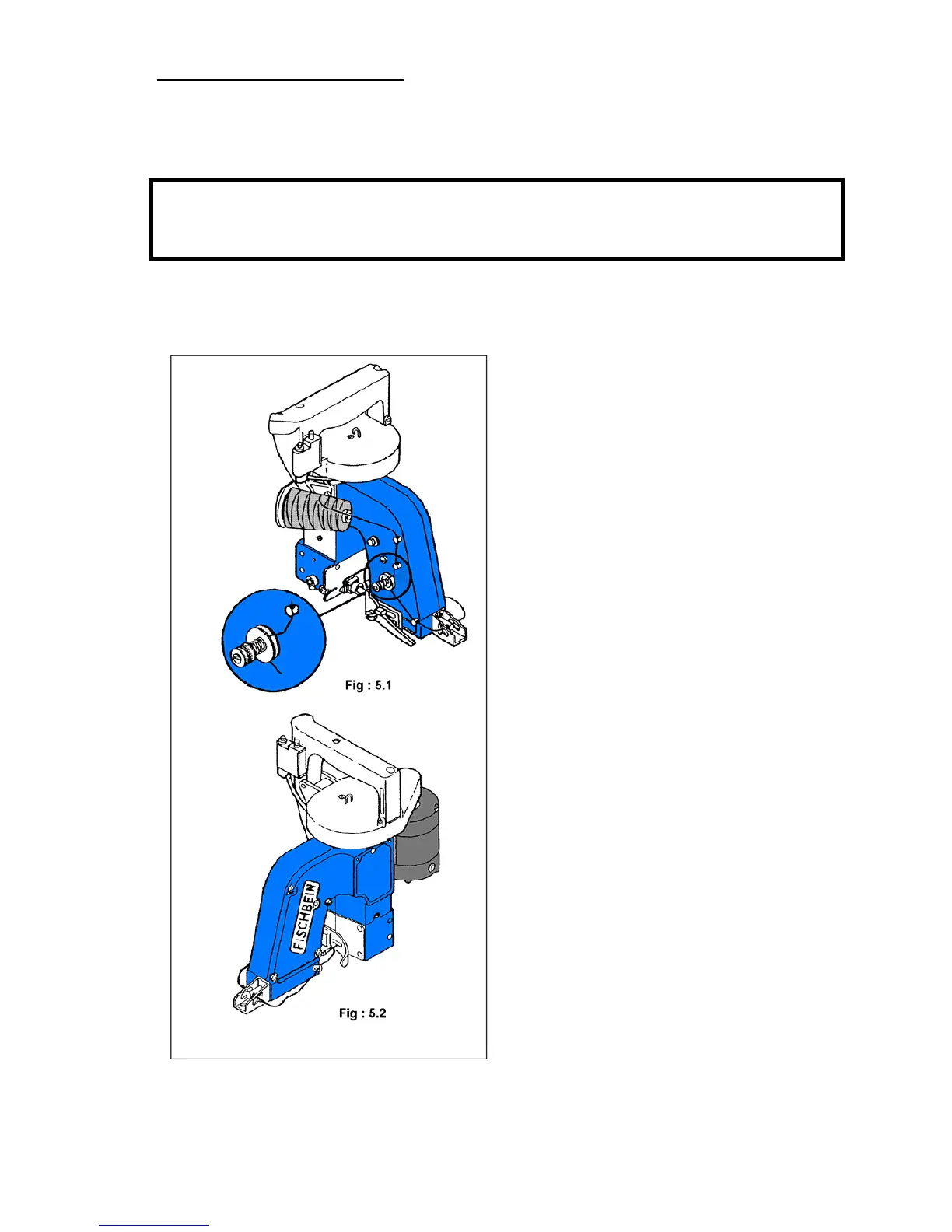

To thread the machine follow the thread path indicated in Fig:5.1 &5.2 .
1. Pass the thread through the first
and second eyelet ( 11109 ) .
2.Take the thread around the
tensioner stud inserting it between
the two tension discs (11114 ) .
3. Pass it through the thirth eyelet
( 11109 ) close to the needle bar
guarding ( 11101 ) .
4. It should then be passed through the
slotted opening in the needle bar
guard , through the needle bar
( 11500 ) and finally through the
opposite side of the needle bar
guard .
5. Then push the thread through the
eyelet ( 11109 ), to reach the needle
front side .
6. Push the thread through the needle
eye from the front side and pull it
through for about 8 cm .
7. Take a bag or small test piece and
introduce it between the throat plate
and the presser foot , making sure
that the needle is up . Start the
machine and sew it through . This
will provide a “ thread chain “ .
8. The machine is now ready to be
used .
