FISCHBEINCOMPANY
The Leader in Bag Closing Technology
REF : 14810F-GB
ED.A10/2001
24
MACHINE ADJUSTMENTS .
In order for your machine to perform to it’s fullest capabilities it is
important to maintain the machine timing and to be sure that the key
components in the sewing operation are in good repair .
Basic components important to the sewing operation are the :
* Needle - it should be sharp and correctly oriented .
* Feed Dog - the teeth should be sharp and the height should be
correct .
* Looper - it should be smooth and correctly adjusted .
* Before any adjustment to the machine , it is important that
you respect following basic rules .
1. Unplug the machine .
2. Always rotate the pulley in the direction of machine operation .
3. Install a new needle .
4. Adjust the machine in a 3-step procedure , followed by a running
test .
5. It is important to follow these steps in order .

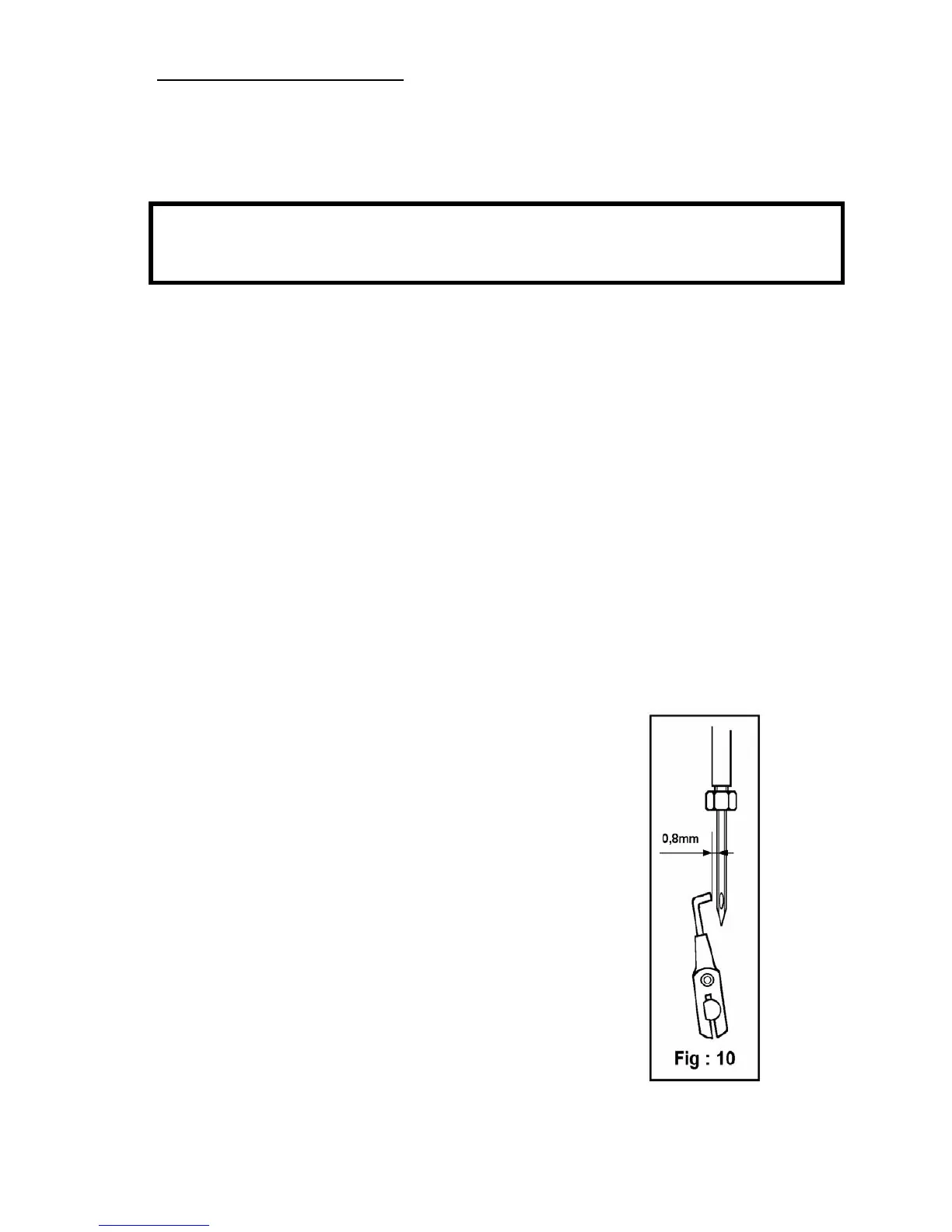

LOOPER STROKE ADJUSTMENTS .
1. Put the machine on a flat surface , with the
looper cover (11102) facing you .
2. The needle bar guard will be pointing up
and the motor will be underneath , Fig : 4 .
3. Raise the presser foot (11400) with the
lifting lever (11654) until the presser foot
is no longer touching the throat plate
(11210) , see Fig : 6 .
4. Remove the looper cover (11102) .
5. Remove the pulley guard (11801) .
6. Remove the throat plate (11210) , Fig : 7 .
7. Remove the feed dog (11203) , Fig : 3 .
