FISCHBEIN F - Replacing the Belt

FISCHBEINCOMPANY
The Leader in Bag Closing Technology
REF : 14810F-GB
ED.A10/2001
23
Note : If this assembly moves the machine must be re - timed , tighten
it if necessary .
14. Check the clamp screw on the cam follower assembly (40317) .
15. Check the hex head screw attaching the connecting rod assembly
(11079) to the needle arm assembly (40099) , tighten it if necessary .
16. Replace the housing cover .

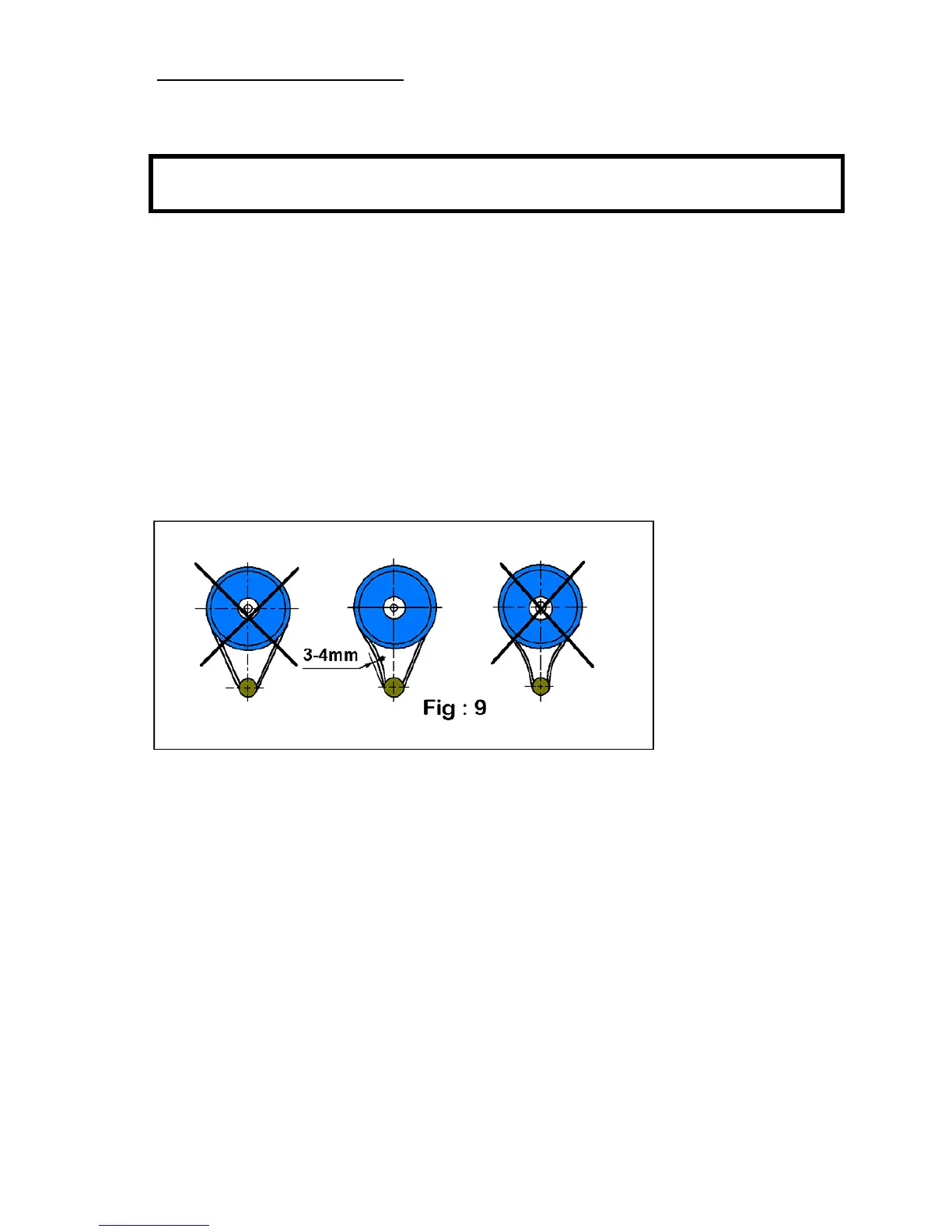

17. Finish by checking the throat plate screws and checking and
adjusting the belt tension .
18. Reassemble the machine and it is ready to sew .
REPLACING THE BELT .
1. Unplug the machine .
2. Remove
the thread cone
from the thread
cone holder
(11815) .
3. Remove
the handle
assembly by
unscrewing two
screws
(SC142034)
4. Loosen the two set screws (11908) on the hinged motor mount ,11906
5. Press the motor mount completely closed to allow slack for removal
of the used belt and to allow the new belt to be installed .
6. Install a new belt (11909) around both pulleys .
7. Apply tension to the belt by opening the motor mount hinge and
tightening the two set screws . The belt must remain slightly flexible .
8. Reattach the handle assembly , and the thread cone holder + thread
cone back on the machine .
9. Your machine is now ready to use .
