FISCHBEINCOMPANY
The Leader in Bag Closing Technology
REF : 14810F-GB
ED.A10/2001
17
REPLACEMENT OF PARTS : HOW TO PROCEED ?

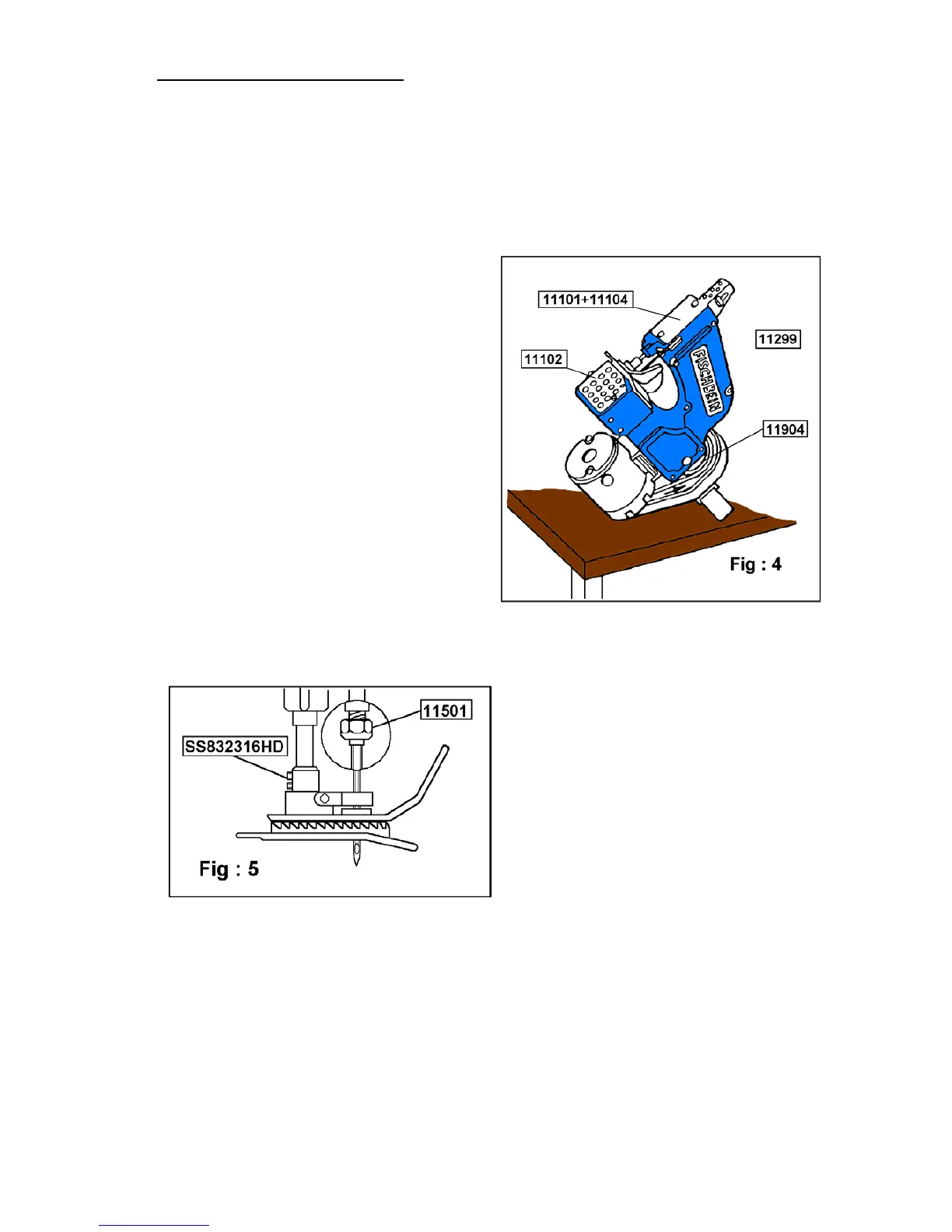

Placement of the machine for parts replacement .
Place the machine so that it rests on
the motor and the machine handle is flat
against the table .
It should be sitting so that you are
looking into the looper cavity and
at the needle bar guard .
How to replace a needle ?
The needle is held in the needle bar
by using the special nut (11501) .
The nut should be adjusted with a
3/8 open end wrench or suitable
adjustable tool (11645) .
Be careful not to strip the threads or
the hex surface .
Do not use pliers .
1. Unplug the machine .
2. Remove the pulley guard (11801) .
3. Raise the presser foot to it’s detent
position and rotate the machine
manually until the needle bar is at
it’s highest position .
4. Loosen the needle bar clamping
screw (11501) with the wrench
provided with the machine (11645) .
5. Remove the needle .(D5)
6. Place the new needle in the needle bar making sure that it is fully inserted and
that the long grove faces you and the needle scarf is to the back .
The groove lips should match the base of the machine as close as possible and
the eye should be facing you .
