FISCHBEINCOMPANY
The Leader in Bag Closing Technology
REF : 14810F-GB
ED.A10/2001
19

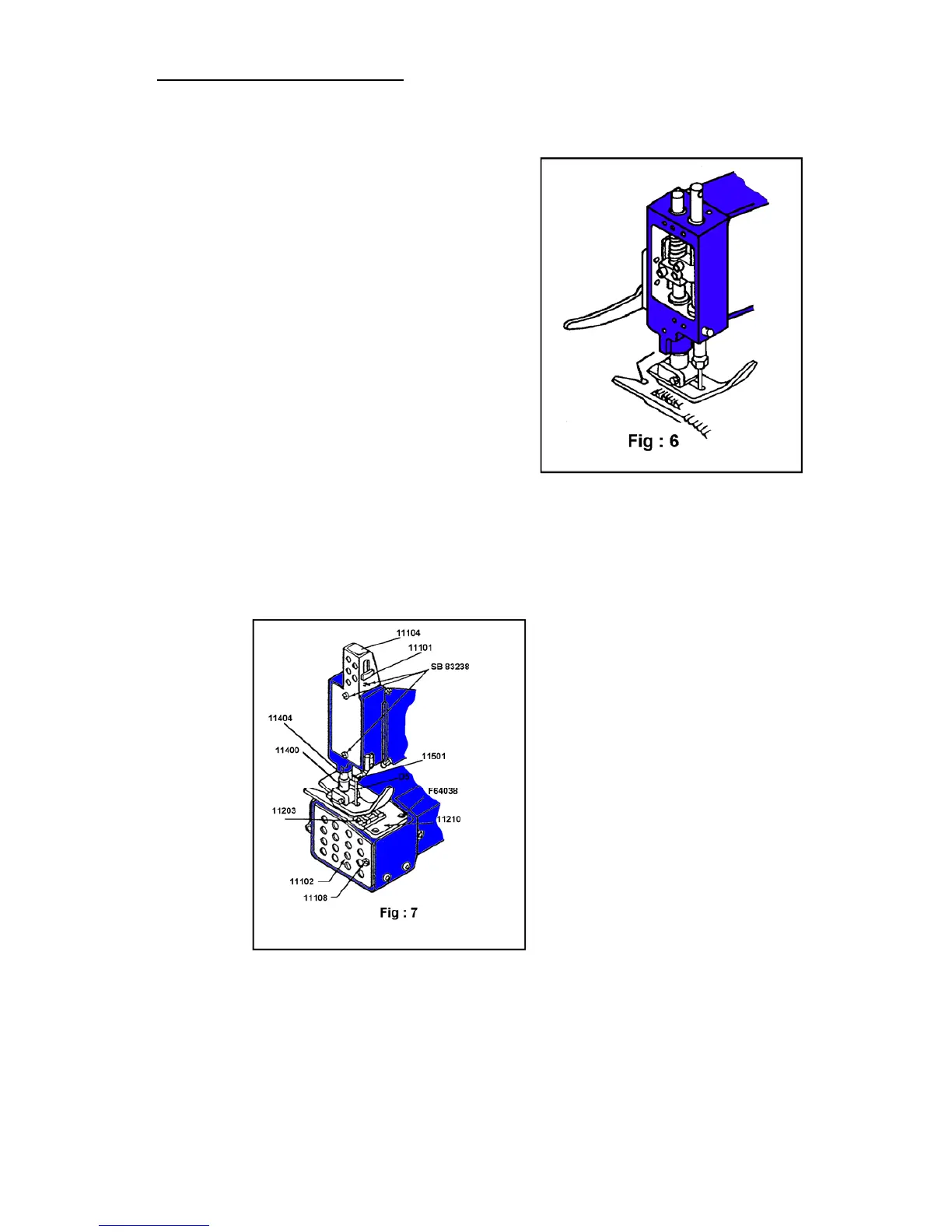

How to replace the looper , 11300 ?
1. Unplug the machine .
2. Place the machine in the
position described above .
3. Raise the presser foot to
it’s detent position .
See Fig : 6 .
4. Remove the pulley guard
(11801) and rotate the
machine manually until the
feed dog is at it’s lowest
position .
5. It’s advisable to remove the
needle (D5) for safety
purposes .
6. Remove the looper cover
(11102) by unscrewing screw ( 11108) .
7. Remove the throat plate
(11210) by unscrewing
the 3 screws ( F64038) .
8. Remove the feed dog
(11203) by removing
screw (SC8321) and the
washer ( WS8) .
9. Remove the looper
(11300) from the looper
holder (11301) by loos-
ening the set screw
(SS832316HD) .
10.Install the new looper
(11300) into the looper
holder (11301) . Make
sure that : the flat side of the
looper is faces the set screw (SS832316HD) The looper is inserted
completely to the bottom of the looper holder (11301) .This is very
important for the adjustment of the machine .
