OIPERATION
Clutch Operation
Baffle Adjustment
1 Start the engine.
2. Adjust the speed to slightly above idle.
3. Move the clutch switch to ON.
Spread pattern and the amount of material
dispensed depends on engine RPM, gate position,
and baffle settings.
.Decreasing RPM and/or gate-opening will
decrease the amount of material coming to
the spinner-
.Increasing RPM and/or gate-opening will
increase the amount of material coming to
the spinner .

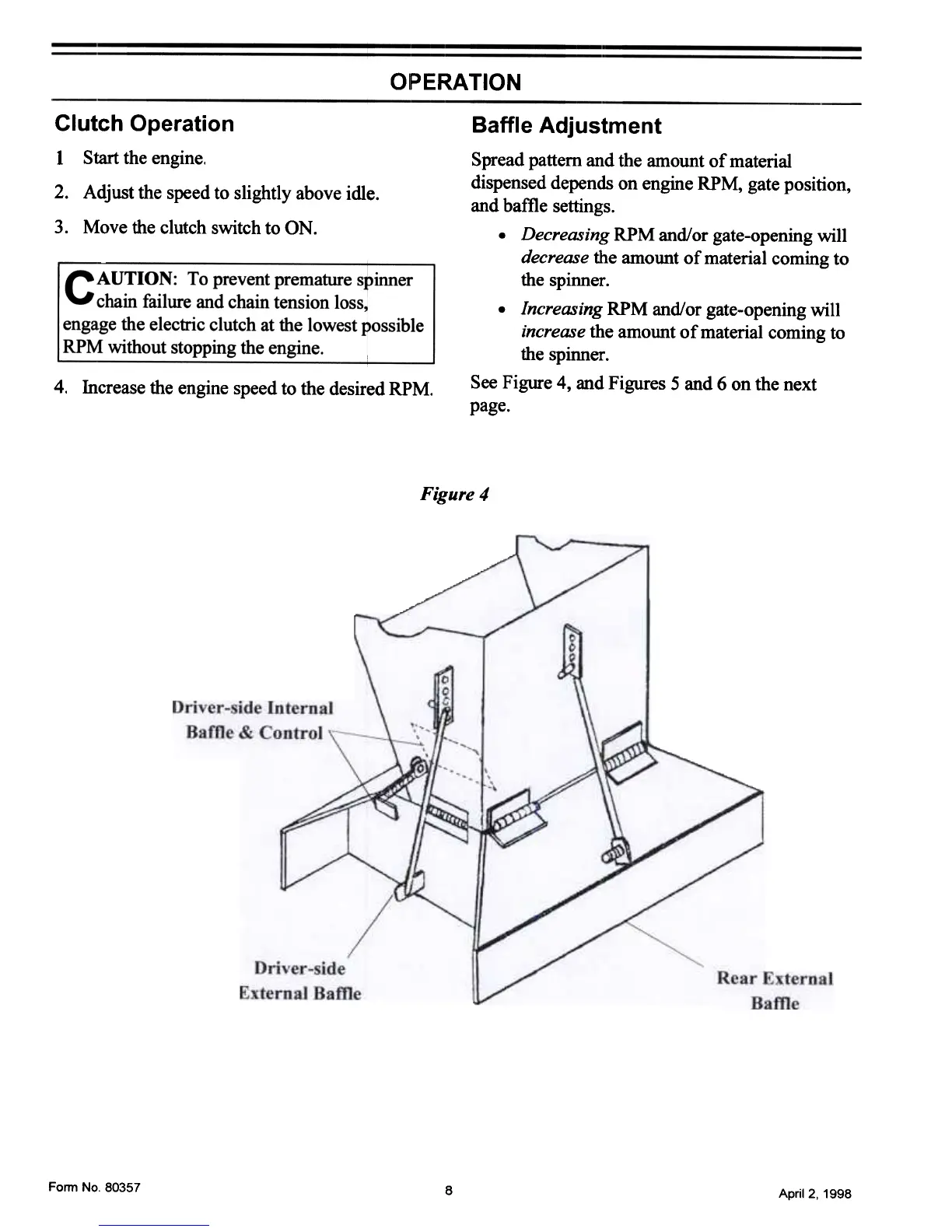

See Figure 4, and Figures 5 and 6 on the next
page.
4.
Increase the engine speed to the desired RPM.
Figure 4
Fonn No.80357
8
April 2, 1998
