Fisher Hopper - Feed Gate -High Capacity; Labels -Regular and High Capacity

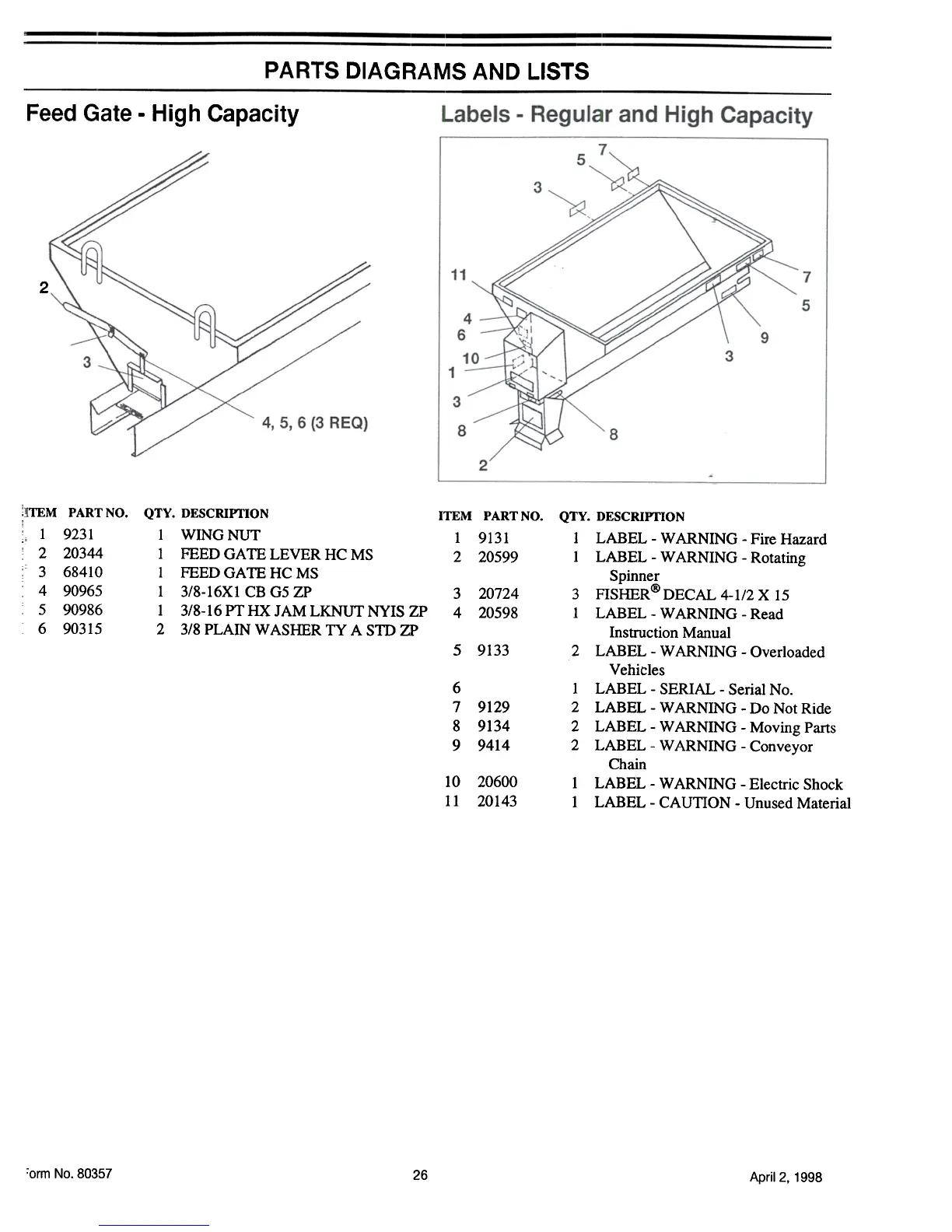

PARTS DIAGRAMS AND LISTS
Feed Gate -High Capacity
2
:!TEM PART NO.
:' 1 9231
, 2 20344
" 3 68410
4 90965
5 90986
6 90315
ITEM PART NO.
1 9131
2 20599
QTY. DESCRIPTION
I WING NUT
I FEED GA 1E LEVER HC MS
I FEED GA 1E HC MS
I 3/8-16XI CB G5 ZP
I 3/8-16 PT HX JAM LKNUT NYIS ZP
2 3/8 PLAIN WASHER TY A sm ZP
3 20724
4 20598
5
9133
10 20600
11 20143
QTY. DESCRIPrION
1 LABEL -W ARNING -Fire Hazard
1 LABEL -W ARNING -Rotating
Spinner
3 FISHER@ DECAL 4-1/2 X 15
1 LABEL -W ARNING -Read
Instruction Manual
2 LABEL -W ARNING -Overloaded
Vehicles
I LABEL -SERIAL -Serial No.
2 LABEL -W ARNING -Do Not Ride
2 LABEL -W ARNING -Moving Parts
2 LABEL -W ARNING -Conveyor
Chain
1 LABEL -W ARNING -Electric Shock
1 LABEL -CAUTION -Unused Material
-orm No.80357
26
April 2, 1998
6
7 9129
8 9134
9 9414
