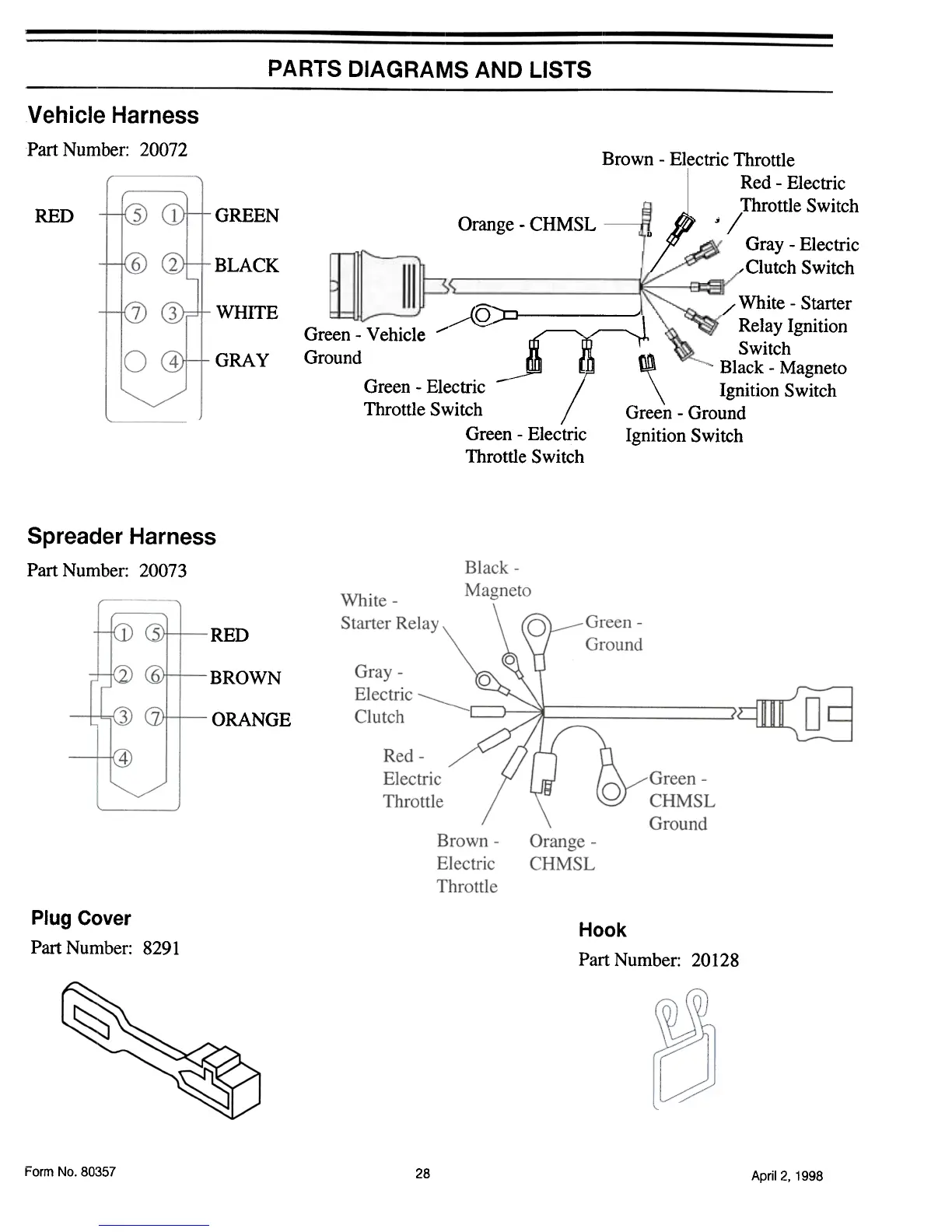

PARTS DIAGRAMS AND LISTS
Vehicle Harness
Part Number: 20072
Brown -Electric Throttle
Red -Electric
Throttle Switch
-'1
RED
GREEN
Orange -CHMSL
,/
Gray -Electric
/Clutch Switch
BLACK
WHITE
Green -Vehicle /
Ground
GRAY
/ White -Starter
~0-::O '
~ :;=;1 Relay IgnitionSwitch
~ ~ .Black -Magneto
\ Ignition Switch
Green -Ground
Ignition Switch
~
Green -Electric ~
/Throttle Switch
Green -Electric
Throttle Switch
Spreader Harness
Part Number: 20073
RED
BROWN
ORANGE
Plug Cover
Part Number: 8291
Hook
Part Number: 20128
Form No.80357
28
April 2, 1998
