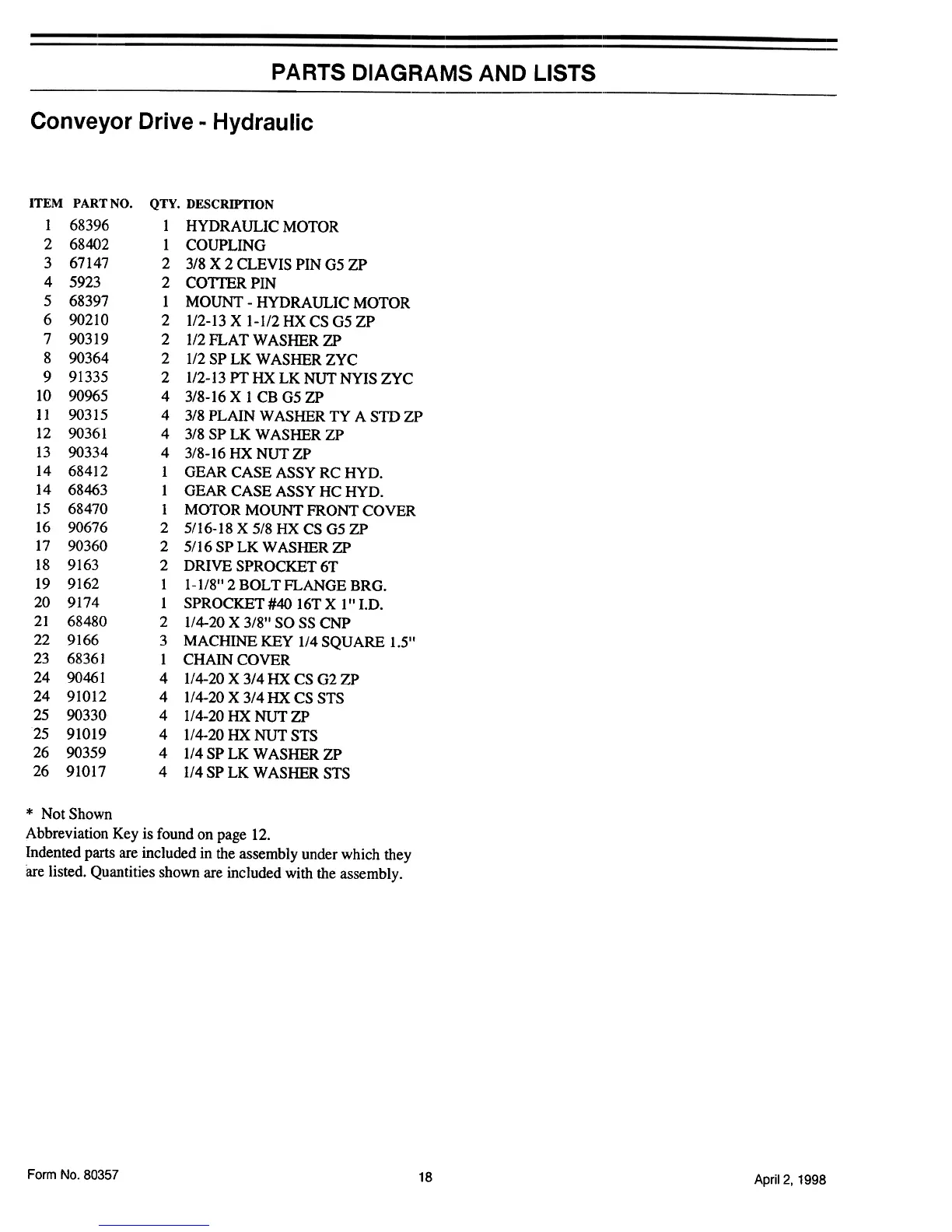

PARTS DIAGRAMS AND LISTS
Conveyor Drive -Hydraulic
ITEM PARTNO.
I 68396
2 68402
3 67147
4 5923
5 68397
6 90210
7 90319
8 90364
9 91335
10 90965
II 90315
12 90361
13 90334
14 68412
14 68463
15 68470
16 90676
17 90360
18 9163
19 9162
20 9174
21 68480
22 9166
23 68361
24 90461
24 91012
25 90330
25 91019
26 90359
26 91017
QTY. DESCRIPTION
1 HYDRAULIC MOTOR
1 COUPLING
2 318 X 2 CLEVIS PIN G5 ZP
2 COTIER PIN
1 MOUNT -HYDRAULIC MOTOR
2 112-13 X 1-1/2 HX CS G5 ZP
2 112FLATWASHERZP
2 112 SP LK W ASHER ZYC
2 112-13 PT HX LK NUT NYIS ZYC
4 318-16 X 1 CB G5 ZP
4 318 PLAIN WASHER TY A sm ZP
4 318 SP LK W ASHER ZP
4 318-16HXNUTZP
1 GEAR CASE ASSY RC HYD.
1 GEAR CASE ASSY HC HYD.
1 MOTOR MOUNT FRONT COVER
2 5116-18 X 518 HX CS G5 ZP
2 5116SPLKWASHERZP
2 DRIVE SPROCKET 6T
1 1-1/8"2 BOLTFLANGE BRG.
1 SPROCKET #40 16T X 1" I.D.
2 114-20 X 318" SO SS CNP
3 MACHlNEKEY 114SQUARE 1.5'1
1 CHAIN COVER
4 114-20 X 314HX CS G2 ZP
4 114-20 X 314 HX CS STS
4 114-20 HX NUT ZP
4 114-20 HX NUT STS
4 114 SP LK WASHER ZP
4 114 SP LK WASHER STS
* Not Shown
Abbreviation Key is found on page 12.
Indented parts are included in the assembly under which they
are listed. Quantities shown are included with the assembly.
Form No.80357
18
April 2, 1998
