5.6 Control unit

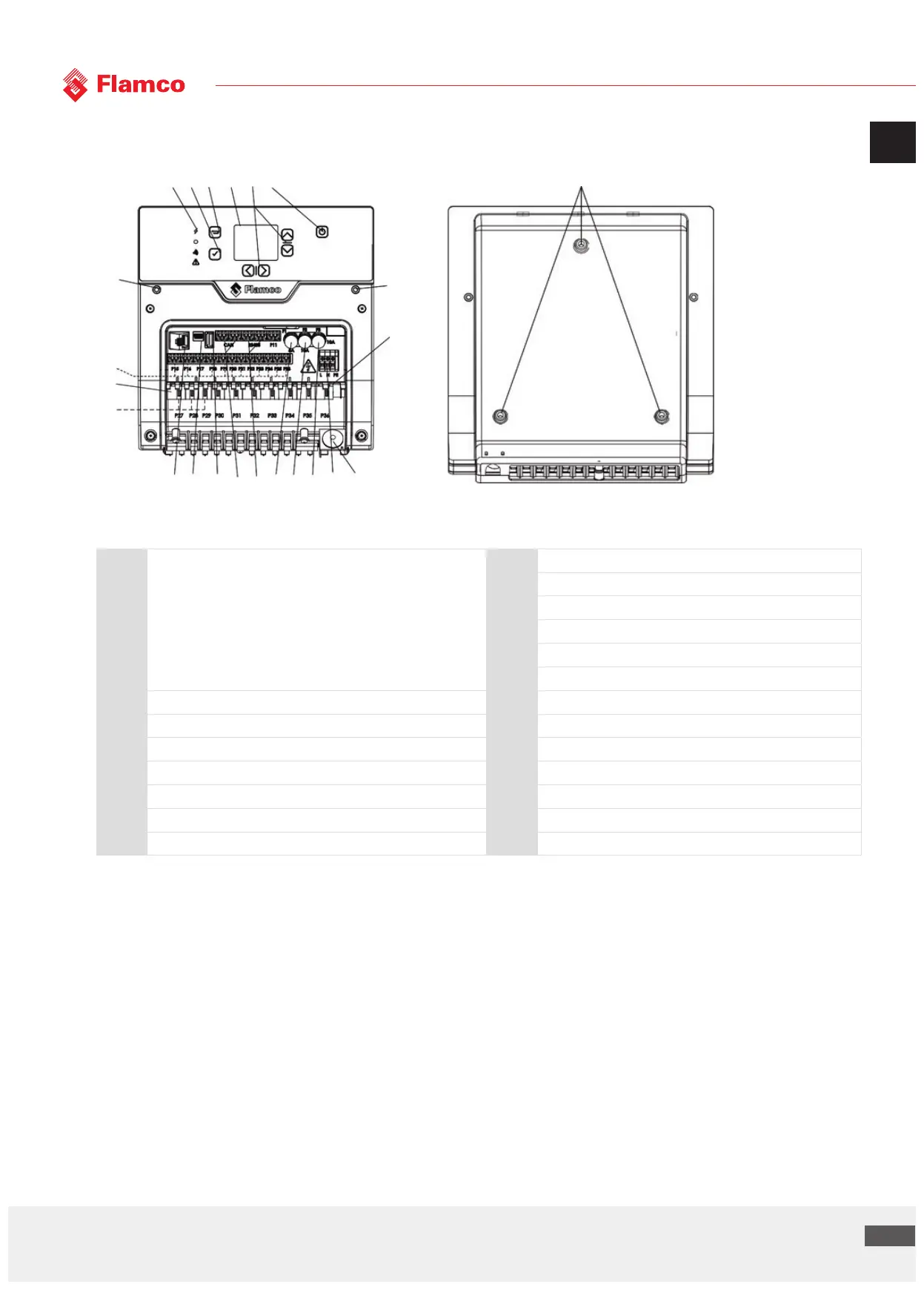

1 2 3 4 5
6
20
20
19
17
18
17
161514131211
10
98
7
21
1 LED indicator lights
- LED, yellow on: Flextronic is powered.
- LED, Green on: No errors, Automat is running correctly
- LED, Blue on: Bluetooth is active
- LED, Red on: Error occurred.
9 USB
10 CANbus port
11 RS485 port
12 F1, Fuse one (1) 5x20, 5A
13 F2, Fuse two (2) 5x20, 10A
14 F3, Fuse three (3) 5x20, 10A
2 Acceptance button 15 MAINS connection (L, N, PE)
3 Back button 16 MAINS grommet
4 Full colour display 17 Relay outputs
5 Navigation buttons 18 Potential free outputs
6 ON/OFF button 19 Sensor and switch inputs/outputs
7 Ethernet port 20 Mounting holes (Flamcomat, Vacumat
8 Micro-USB 21 Mounting holes (ENA, MK-U/C)
