7.2 Commissioning, volume level and operating temperature
Advice: If a dierent volume level is required than the self-established minimum level aer start (operational ready and
installed top-up), the vessel should be filled according to the minimum required level needed for the actual system
temperature, aer completing the commissioning procedure on the control unit. For better understanding study the
diagram below and the paragraph on maintenance, vessel draining and re-filling later in this document.

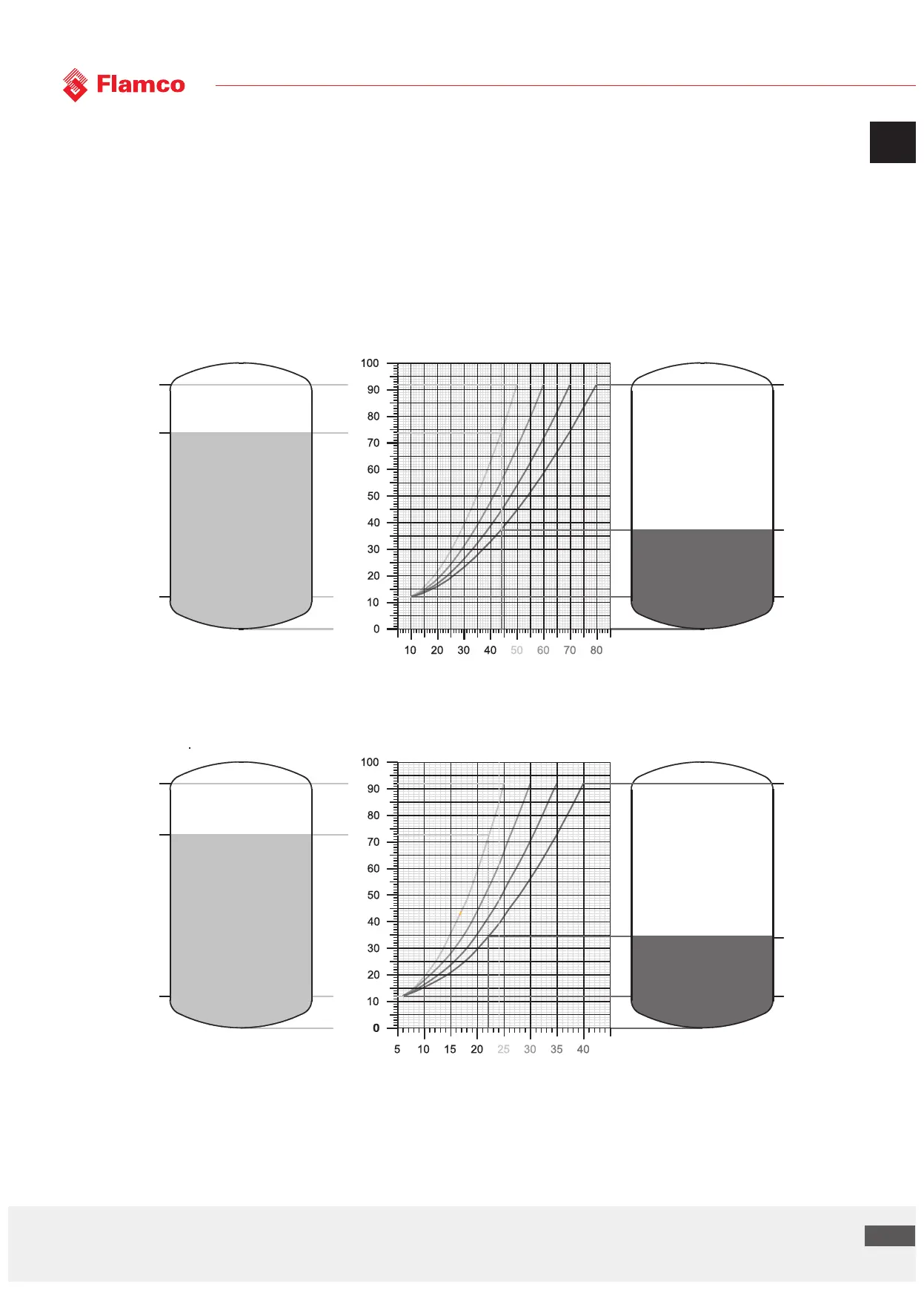

Fig. FM.037.V01.15
Example 1
Max. design temp.: 50 °C
Max. fill level: 92 %
Water feed, top-up: 12 %
Min. design temp.: 10 °C
Example 3
Max. design temp.: 25 °C
Max. fill level: 92 %
Water feed, top-up: 12 %
Min. design temp.: 6 °C
Example 4
Max. design temp.: 40 °C
Max. fill level: 92 %
Water feed, top-up: 12 %
Min. design temp.: 6 °C
Example 2
Max. design temp. 80 °C
Max. fill level: 92 %
Water feed, top-up: 12 %
Min. design temp.: 10 °C
Vessel target volume [%] (control unit display)
Vessel target volume [%] (control unit display)
Actual temperature [°C]
Actual temperature [°C]
max. 50˚C
92%*
max. 80˚C
92%*
44˚C
~74%
(73.7%)
44˚C
~37%
(37.2%)
min 10˚C
12%
min 10˚C
12%
max. 25˚C
92%*
max. 40˚C
92%*
224˚C
~73%
(72.6%)
22˚C
~35%
(34.5%)
min 6˚C
12%
min 6˚C
12%
