Fleck 9500 Service Manual

Printed in U.S.A.
Page 10
MODEL 9500 ECONOMINDER


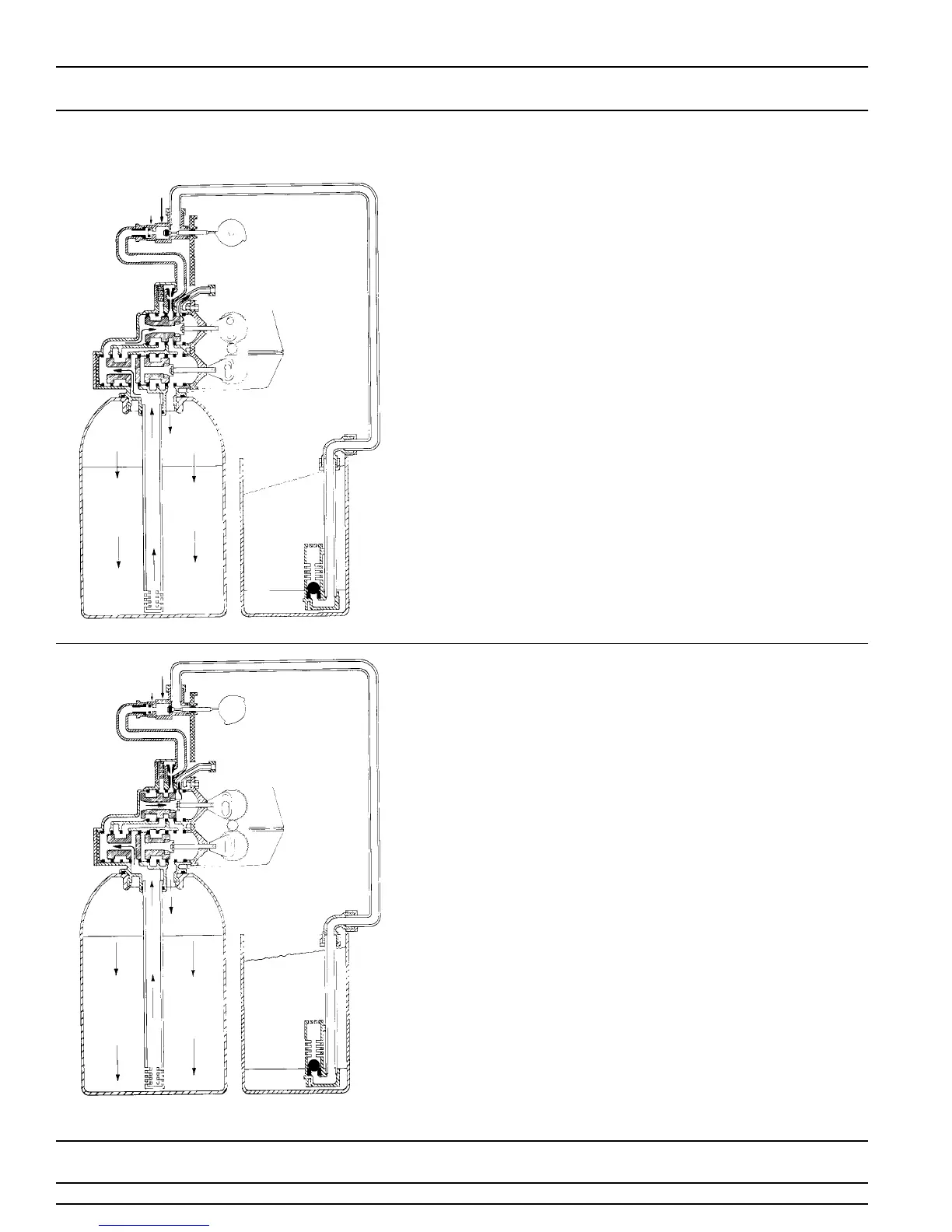

5 - SLOW RINSE
Conditioned water from the second mineral tank flows
around the lower piston, around the upper piston, into
the injector housing, down through the nozzle and
throat, around the upper piston, down through the
mineral, into the center tube through the bottom
distributor, up the center tube, through the center of the
lower piston, through the center of the upper piston,
and out through the drain line.
6 - RAPID RINSE
Conditioned water from the second mineral tank flows
around the lower piston, around the upper piston, and
down through the mineral in the first tank. Rinse water
from the mineral bed enters the center tube through the
bottom distributor, flows up the center tube, through the
center of the lower piston, through the center of the
upper piston, and out through the drain line.
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK
