Fleck 9500 - 2 Tank Wiring & Control Dimensions

Printed in U.S.A.
Page 26
MODEL 9500 ECONOMINDER


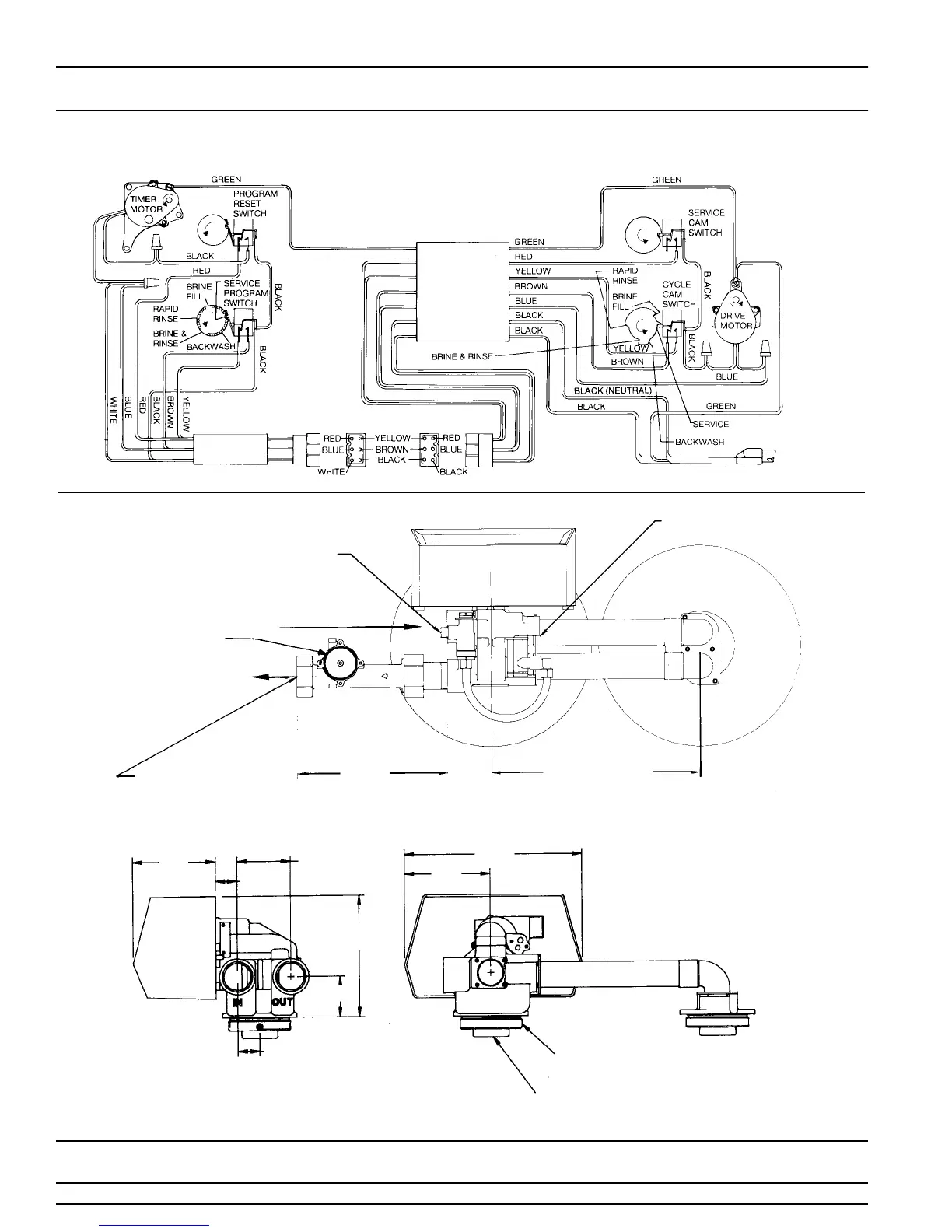

2 Tank Wiring & Control Dimensions
1600 BRINE VALVE 3/8 O.D. TUBE
1700 BRINE VALVE 1/2 O.D. TUBE
METER DOME
MUST FACE UP
1.50″ -11 NPT INTERNAL
TYPICAL
1″-11.5 NPT DRAIN PORT
10.5 3.06
16″ PIPE = 19.7″
24″ PIPE = 27.7″
5.4
1.37
3.44
7.8
2.63
1.41
11.4
5.5
4″-8 UN-2A THREAD
DISTRIBUTOR TUBE
1-1/2″ PVC 1.90 O.D.
