Printed in U.S.A.
Page 11
MODEL 9500 ECONOMINDER

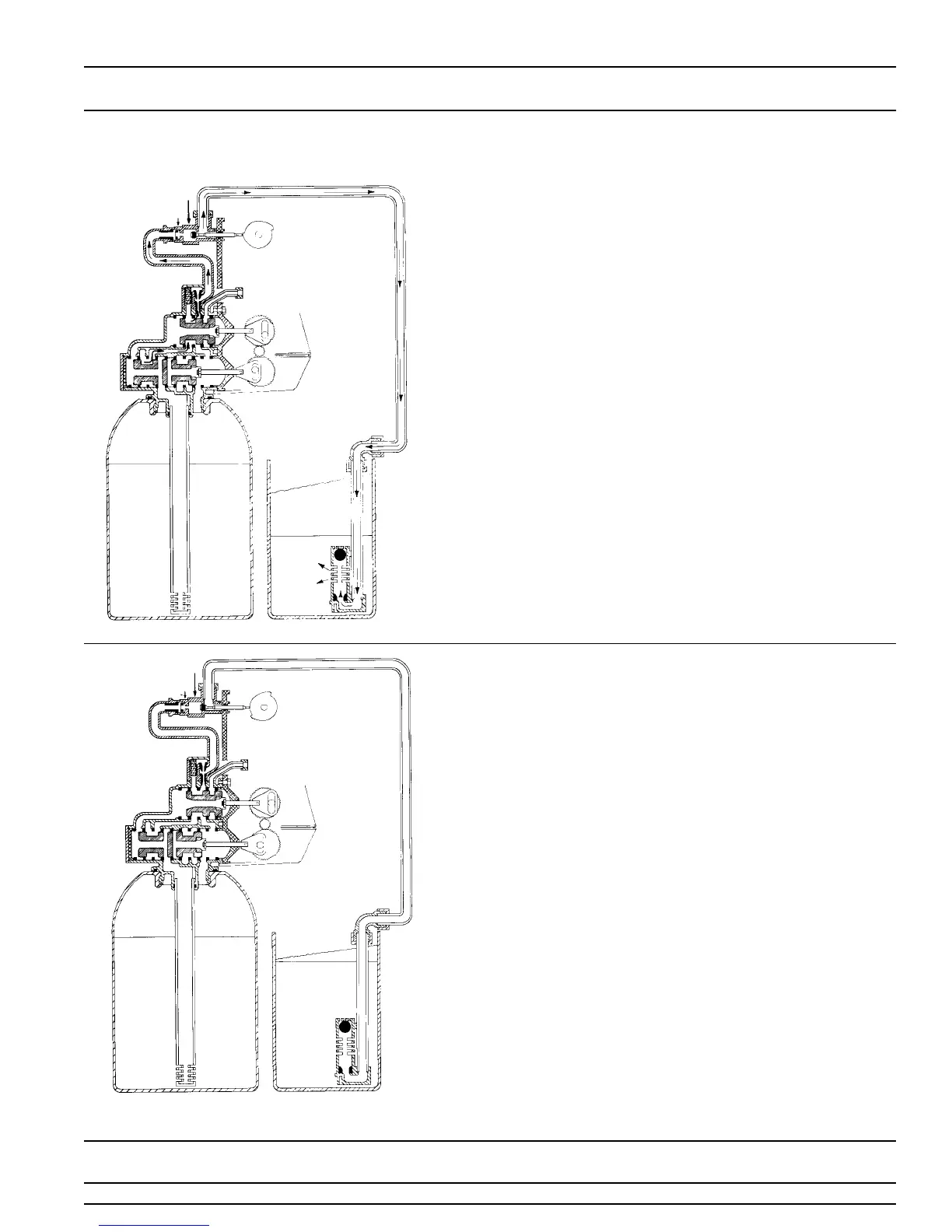

7 - BRINE TANK FILL POSITION
Conditioned water from the second mineral tank flows
around the lower piston, around the upper piston, into
the injector housing, through the brine line flow control,
through the brine valve, and into to brine tank. No water
flows through the first mineral tank.
8 - SERVICE (TANKS SWITCHED)
Hard water enters the unit at the valve inlet, flows
around the lower piston, through the pipe leading to the
second mineral tank, and down through the mineral in
the second tank. Conditioned water enters the center
tube of the second tank through the bottom distributor,
flows up through the center tube, through the pipe
leading back to the main valve, around the lower piston,
through the meter, and out the valve outlet. The
regenerated first mineral tank is out of the flow path,
and ready for use when the second mineral tank
becomes depleted.
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK
