MODEL 9500 ECONOMINDER

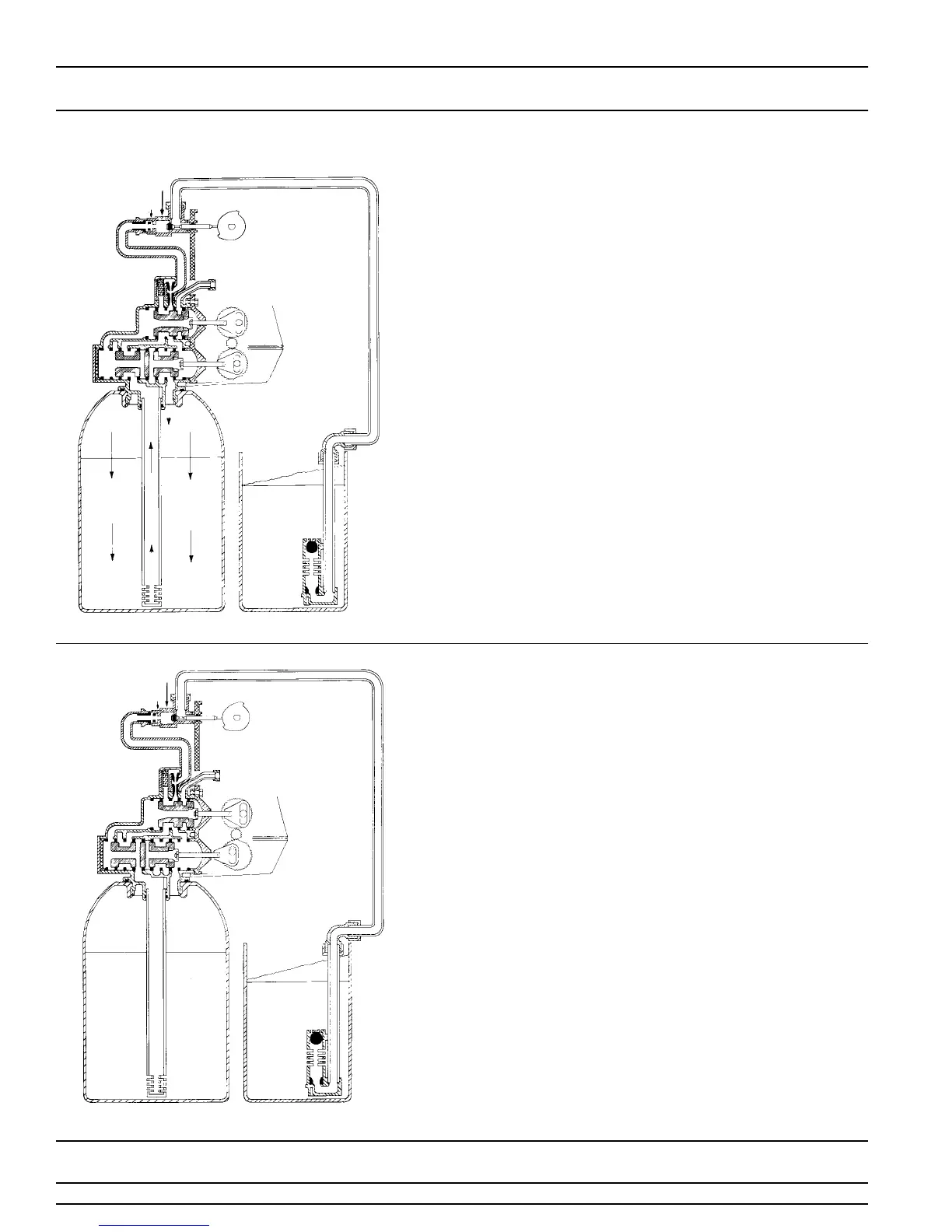

1 - SERVICE POSITION
Hard water enters the unit at the valve inlet, flows
around the lower piston, and down through the mineral
in the first tank. Conditioned water enters the center
tube through the bottom distributor, flows up through
the center tube, around the lower piston, through the
meter, and out the valve outlet. The second mineral
tank is regenerated and on standby.
2 - TANKS SWITCHING
(the meter has initiated a regeneration)
Hard water enters the unit at the valve inlet, flows
around the lower piston, through the pipe leading to the
second mineral tank, and down through the mineral in
the second tank. Conditioned water enters the center
tube of the second tank through the bottom distributor,
flows up through the center tube, through the pipe
leading back to the main valve, around the lower piston,
through the meter, and out the valve outlet. The
depleted first mineral tank is out of the flow path, and
ready for regeneration.
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK
