Printed in U.S.A.
Page 19

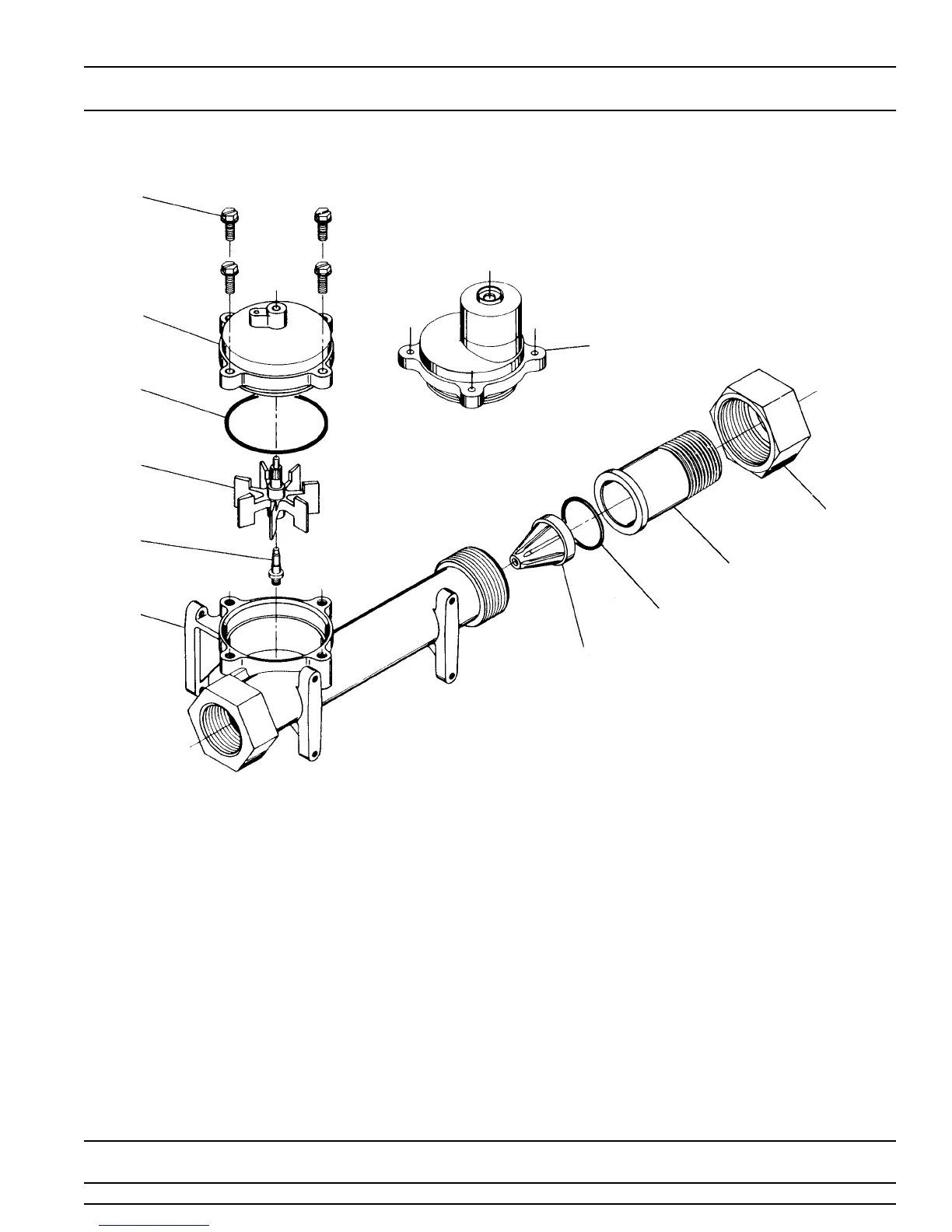

MODEL 9500 ECONOMINDER
1-1/2 Meter Assembly
PARTS LIST
Item No. Quantity Part No. Description
1. . . . . . . . . . . 1 . . . . . . . . . . . 17569 . . . . . . . . . . . . . . . Meter Body
2. . . . . . . . . . . 1 . . . . . . . . . . . 13882 . . . . . . . . . . . . . . . Impeller Post
3. . . . . . . . . . . 1 . . . . . . . . . . . 13509 . . . . . . . . . . . . . . . Impeller
4. . . . . . . . . . . 1 . . . . . . . . . . . 13847 . . . . . . . . . . . . . . . O-Ring - Meter Cover
5A . . . . . . . . . . 1 . . . . . . . . . . . 15218 . . . . . . . . . . . . . . . Meter Cover Assembly (St.d)
5B . . . . . . . . . . 1 . . . . . . . . . . . 15237 . . . . . . . . . . . . . . . Meter Cover Assembly (Extended Range)
6. . . . . . . . . . . 4 . . . . . . . . . . . 12112 . . . . . . . . . . . . . . . Screw - Meter Cover
7. . . . . . . . . . . 1 . . . . . . . . . . . 17542 . . . . . . . . . . . . . . . Flow Straightener
8. . . . . . . . . . . 1 . . . . . . . . . . . 12733 . . . . . . . . . . . . . . . O-Ring
9. . . . . . . . . . . 1 . . . . . . . . . . . 17544 . . . . . . . . . . . . . . . Nipple - Quick Connect
10 . . . . . . . . . . 1 . . . . . . . . . . . 17543 . . . . . . . . . . . . . . . Nut - Quick Connect
1
2
3
4
5A
6
5B
10
7
9
8
