FT-112(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 26 of 170
The PC connection cabling will be done via cross cable as shown below. IP address blocks and gateway
address of weighing indicator and PC should be the same in cross connection.

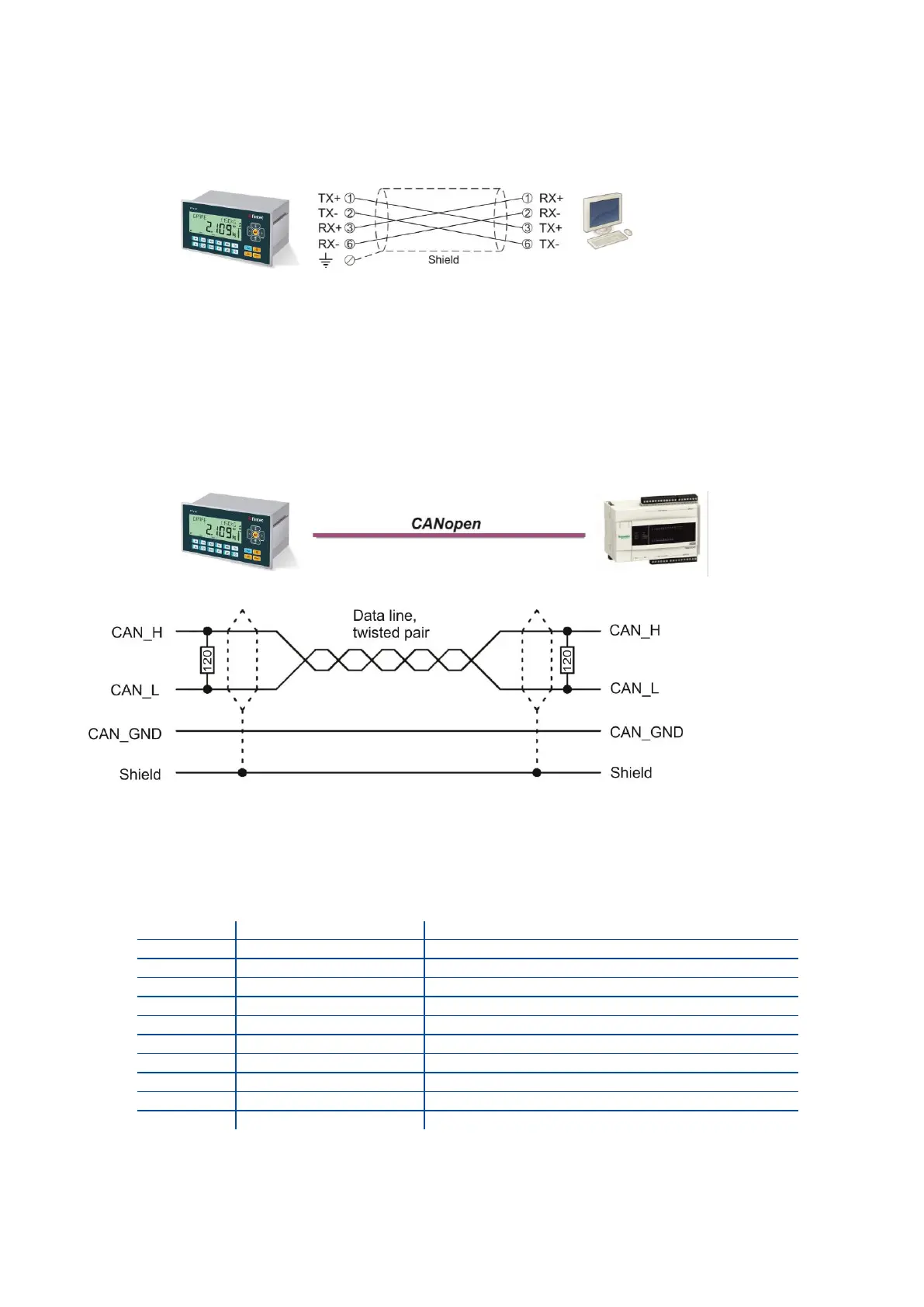

Figure 4.17 - Cross PC connection
4.6.9 CANopen
CANopen connection is done with four wire as indicated below in Figure 4.18. The data line ends must be
terminated with 120 ohm resistors.
Figure 4.18 - PLC Connection
CANopen Connector pin configuration (DB9M)
