The Front View and Key Functions

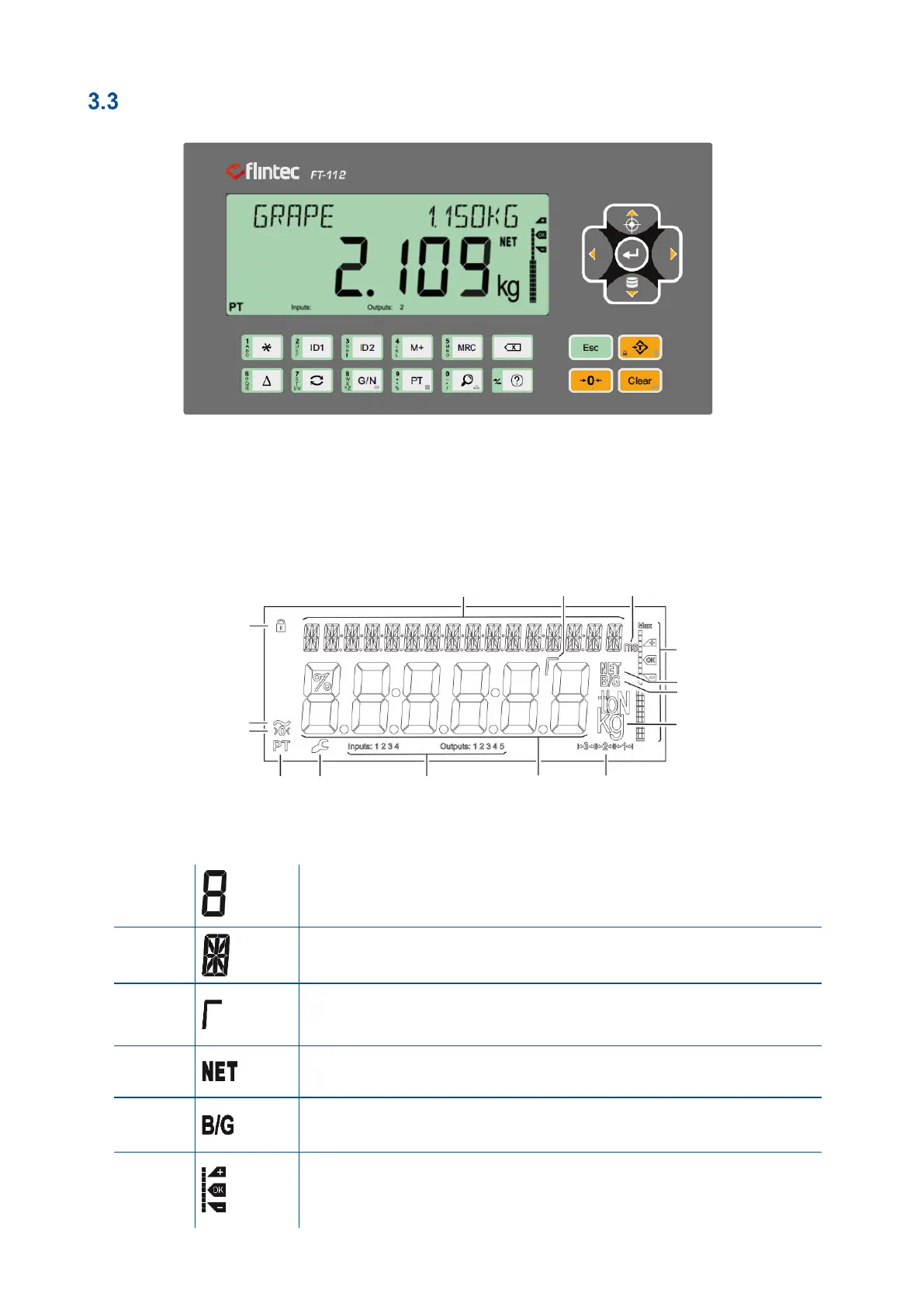

Figure 3.1 – Front view of FT-112(D) Panel
3.3.1 Display
The bright and wide-angle LCD display of the FT-112(D) Panel instruments is shown below.
The meanings of the announcement symbols on the display:
1
6-digit 22 mm height big weighing display with sign
2
16-digit 8 mm height alphanumeric information display
3
High resolution digit separator.
4
Announces the indicated value is the net weight.
5
Announces the indicated value is the gross weight.
6
Bar graph
1
3
4
5
6
2
7
8
9
10
11
12
13
14
15
