FT-112(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 27 of 170
4.6.10 EtherNET/IP

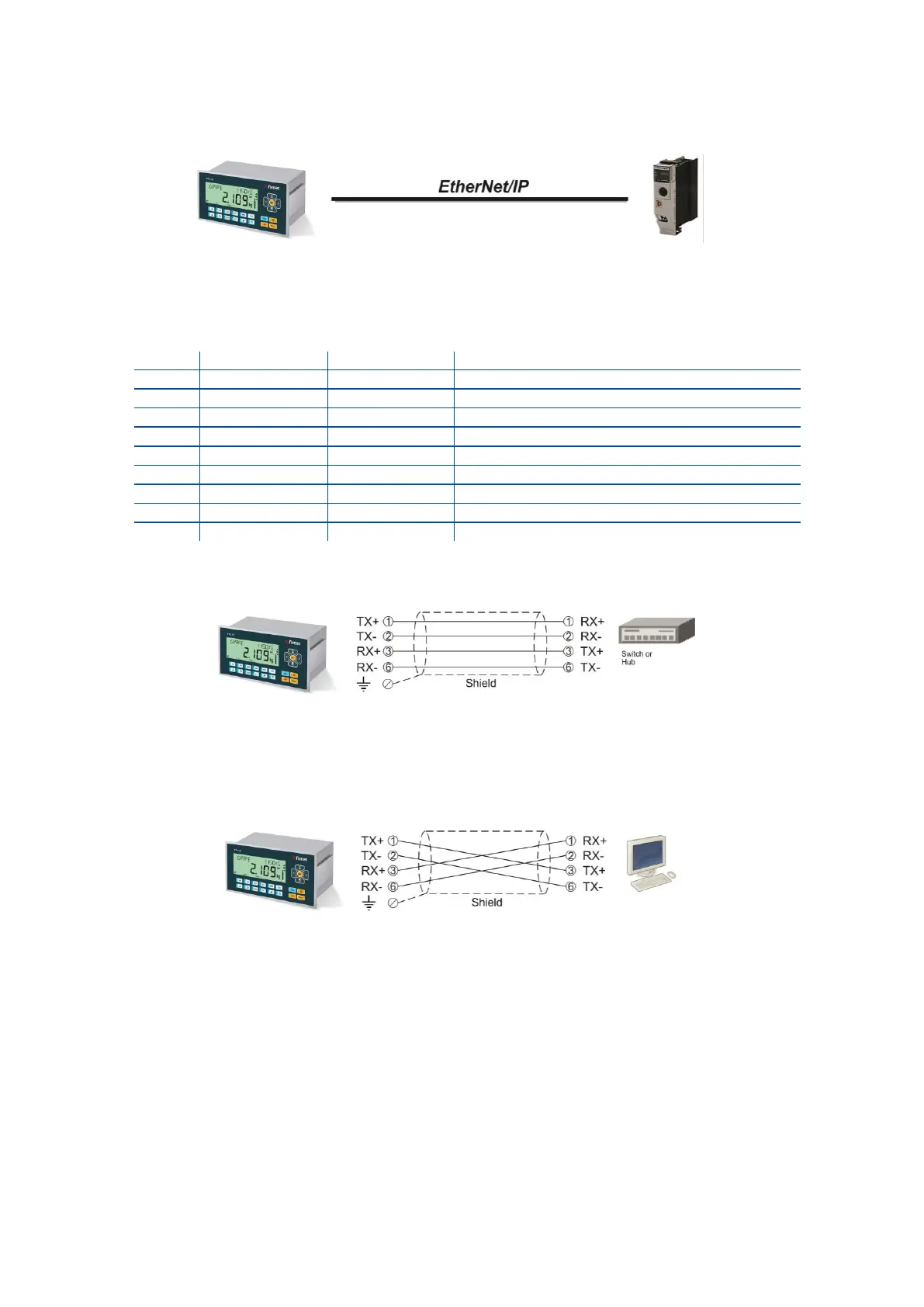

Figure 4.19 – PLC Connection
EtherNet/IP Connector pin configuration (RJ45)
Pin
Signal
DIR
Description
1
TX+
Out
Differential Ethernet transmit data +
2
TX−
Out
Differential Ethernet transmit data −
3
RX+
In
Differential Ethernet receive data +
6
RX−
In
Differential Ethernet receive data −
4
Not used
Terminated
5
Not used
Terminated
7
Not used
Terminated
8
Not used
Terminated
Shield
Chassis ground
The HUB connection cabling will be a direct connection as shown below:
Figure 4.20 - HUB connection
The PC connection cabling will be done via cross cable as shown below. IP address blocks and gateway
address of weighing indicator and PC should be the same in cross connection.
Figure 4.21 - Cross PC connection
