Programming and Parameters
FT-112(D) Panel weighing indicator is programmed in seven main blocks, which are serial interface,
configuration, application, scale, calibration, metrology and diagnostic.

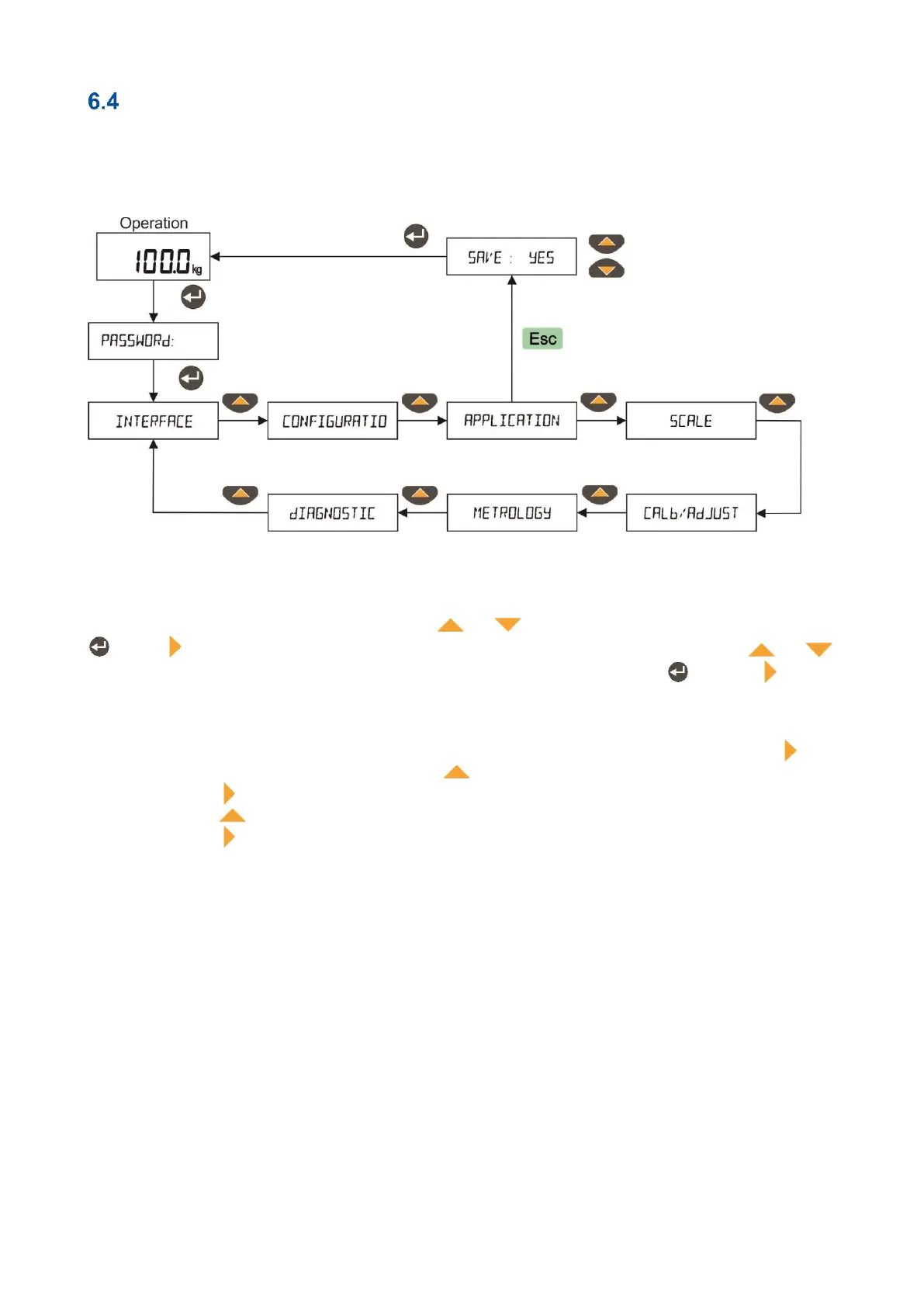

Main blocks in the programming menu are displayed like [1-- INTERFACE ] and sub-blocks are displayed
like [11- RS232C ]. Parameters are located in the sub-blocks like [111 FORMAT: CONT ].
You can navigate between the blocks by pressing or keys. After reaching the desired block, press
key or key to enter. After arriving a parameter, you may change its function by pressing or
keys. If the value will be entered to the parameter press numerical keys, then press key and key to
enter the next parameter.
For example, to change the Baud rate of RS422 serial interface to 57600;
1. After entering the programming, the [1-- INTERFACE ] sub-block prompt appears. Press key.
2. [11- RS232C ] prompt appears. Press key until [13- RS422 ] appears.
3. Press key until [132 BAUD: 9600 ] appears.
4. Press key to change to [132 BAUD: 57K6 ].
5. Press key to enter the next parameter.
Legally related parameters can be changed if the calibration dip switch is at ON position. The values of these
parameters limited according to the OIML against wrong set up. Legally related parameters are marked with M
symbol in the table below.
