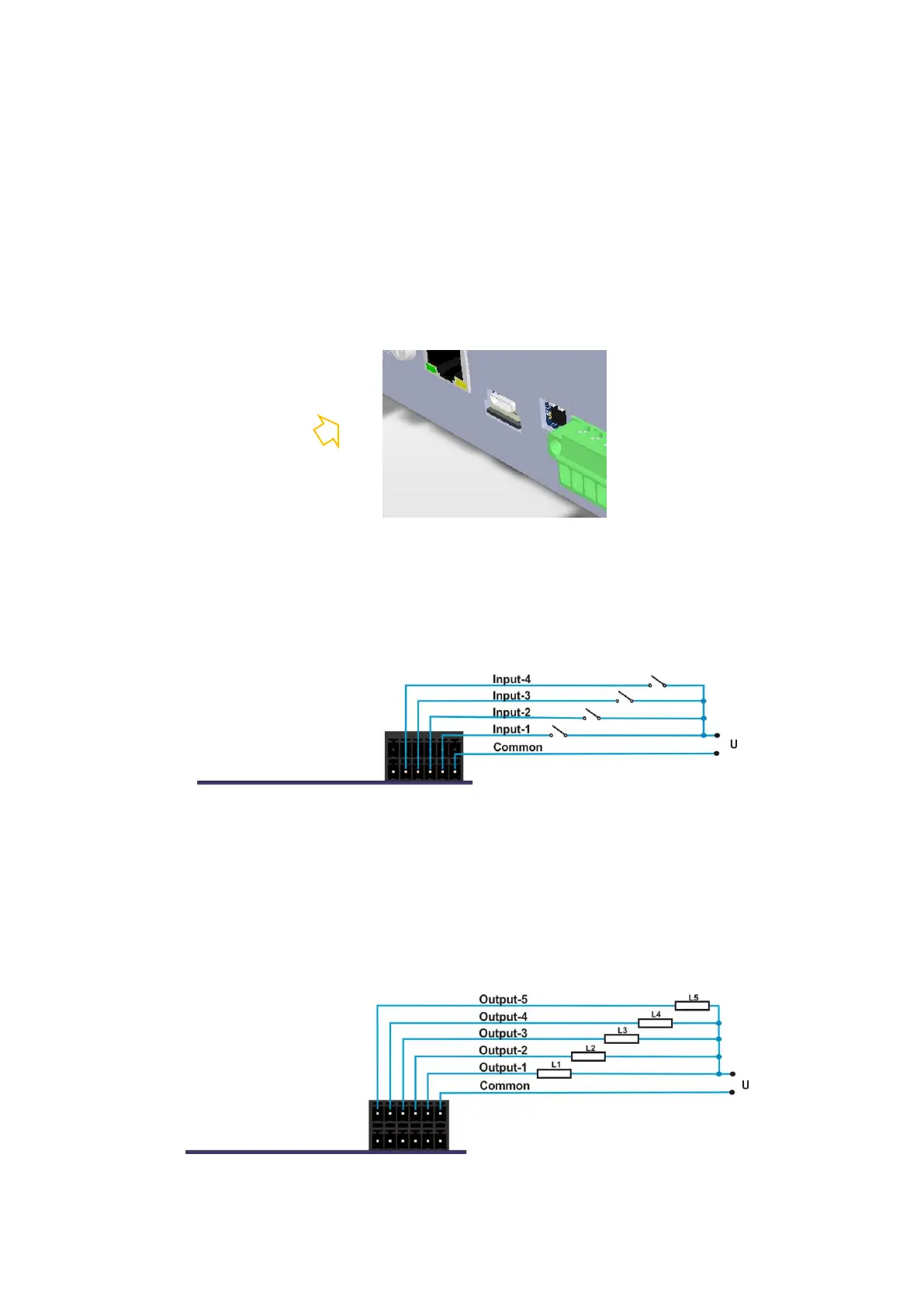

FT-112(D) Panel Weighing Indicator, Technical Manual, Rev.1.0.0, May 2019 Page 31 of 170
4.6.17 Installation of SD Card
Some features of the FT-112(D) Panel requires SD card like Modbus RTU / TCP. Its slot is located on the rear
of the instrument. These SD cards should be ordered for your use.
Insert the SD card
1. Deenergize the instrument and wait 30 seconds.
2. Insert the SD card into the slot until it locks into place.
3. Energize the instrument. FT-112(D) Panel read the SD card at power on to initiate its function.
Remove the SD card
1. Deenergize the instrument.
2. Gently press on the SD card to release the lock, then carefully pull the card out.
3. Insert the new SD card as described above, if needed.
4. Energize the instrument 30 seconds later power off.
4.6.18 Digital Inputs
Inputs connection diagram is shown in Figure 4.29.
Figure 4.29 - Connection diagram of digital inputs
4.6.19 Digital Outputs:
FT-112(D) Panel instrument’s digital outputs can be programmed as a free setpoint, as a control output or as a
remote output at basic weighing.
Figure 4.30 - Outputs connection diagram
