Inspection Route18
Figure 18.1

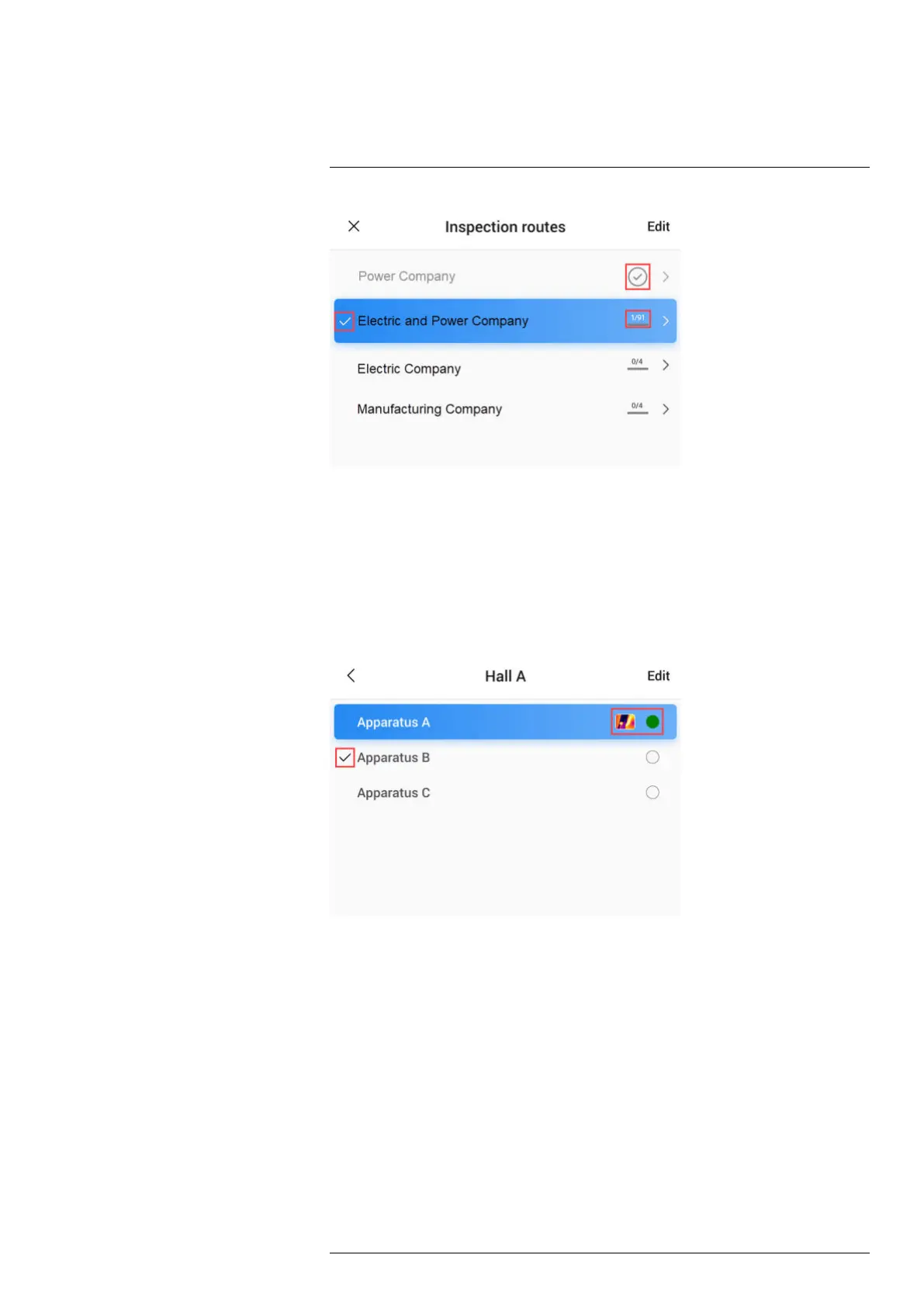

Figure 18.1 shows an example of the inspection list:
• The first inspection route is completed and locked, which is indicated by the check
mark to the right.
• The second inspection route has started. It includes a total of 91 inspection points,
and one of them has been inspected. The second inspection route includes the cur-
rent inspection point in live view, which is indicated by the check mark to the left.
To display the next level in the inspection route structure, tap an item in the list.
Figure 18.2
Figure 18.2 shows an example of a level with inspection points:
• The first inspection point has one or more images and the status is set to “green.”
• The second inspection point is the current inspection point in live view, which is indi-
cated by the check mark to the left.
18.3 Performing an inspection
18.3.1 Preparation
Note This procedure assumes that an inspection route file has been created. For more
information, see section 18.5 Creating an inspection route.
1. Add the inspection route file to the root folder on the memory card.
2. Insert the memory card into the camera.
3. Start the camera.
#T810587; r. AD/90967/90989; en-US
98

FLIR E54 Specifications

General

Resolution	320 x 240 pixels
Accuracy	±2°C (±3.6°F) or ±2% of reading
Field of View	24° × 18°
Focus	Manual
Digital Camera	5 MP
Laser Distance Meter	No
Image Modes	MSX, Picture-in-Picture
Connectivity	Wi-Fi, Bluetooth
Battery Life	4 hours
Storage Media	SD card
Weight	1 kg
Minimum Focus Distance	0.15 m
Spectral Range	7.5 – 14 µm
Operating Temperature Range	-15°C to 50°C
Storage Temperature Range	-40°C to 70°C
Thermal Sensitivity	< 0.04°C (40 mK)
