FLIR E54 User Manual

Handling the camera
7

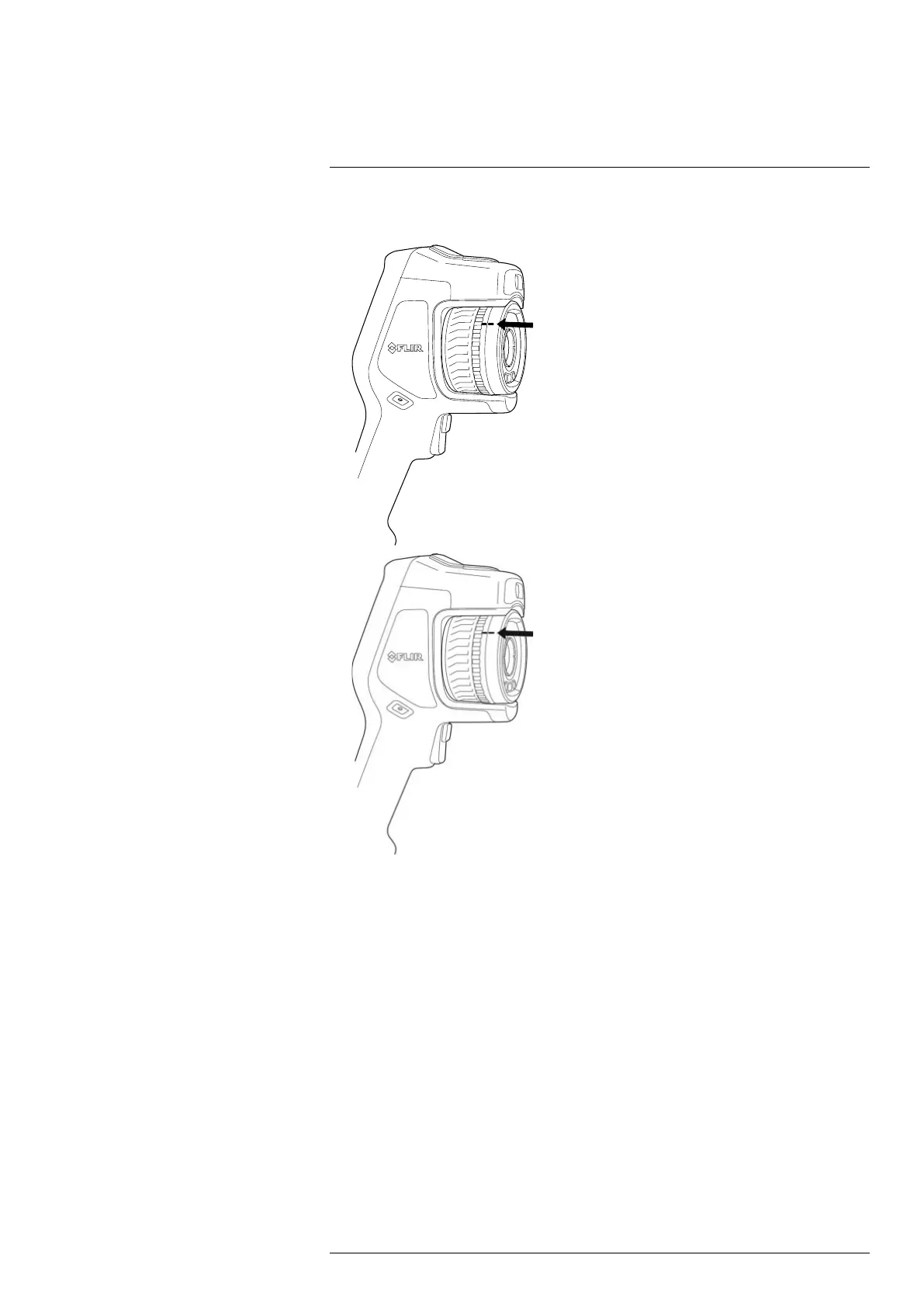

7. Make sure that the two index marks are aligned, indicating that the lens is locked in
place.
7.16 Calibrating the lens–camera combination
Applicability: Camera models with an exchangeable lens.
7.16.1 Introduction
Before a new lens can be used with the camera, the lens–camera combination must be
calibrated.
This is a process that previously had to be performed by a FLIR service department, but
for the FLIR Exx series the calibration can be performed by the user. This feature is
called AutoCal. The AutoCal procedure requires a calibration target, which is included in
the lens package.
Note For lenses that ship with the camera, the lens–camera combination is factory
calibrated.
#T810587; r. AD/90967/90989; en-US
53

FLIR E54 Specifications

General

Resolution	320 x 240 pixels
Accuracy	±2°C (±3.6°F) or ±2% of reading
Field of View	24° × 18°
Focus	Manual
Digital Camera	5 MP
Laser Distance Meter	No
Image Modes	MSX, Picture-in-Picture
Connectivity	Wi-Fi, Bluetooth
Battery Life	4 hours
Storage Media	SD card
Weight	1 kg
Minimum Focus Distance	0.15 m
Spectral Range	7.5 – 14 µm
Operating Temperature Range	-15°C to 50°C
Storage Temperature Range	-40°C to 70°C
Thermal Sensitivity	< 0.04°C (40 mK)
