Working with color alarms and
isotherms
14
14.1 Color alarms
By using color alarms (isotherms), anomalies can easily be discovered in an infrared im-
age. The isotherm command applies a contrasting color to all pixels with a temperature
above, below, or between the set temperature levels. The camera also features isotherm
types that are specific to the building trade: condensation and insulation alarms.
You can make the camera trigger the following types of color alarms:
Above alarm: This will apply a contrasting color to all pixels with a temperature above
the specified temperature level.
Below alarm: This will apply a contrasting color to all pixels with a temperature below
the specified temperature level.
Interval alarm: This will apply a contrasting color to all pixels with a temperature be-
tween two specified temperature levels.
Condensation alarm: Triggers when the camera detects a surface where the relative
humidity exceeds a preset value.
Insulation alarm: Triggers when there is an insulation deficiency in a wall.

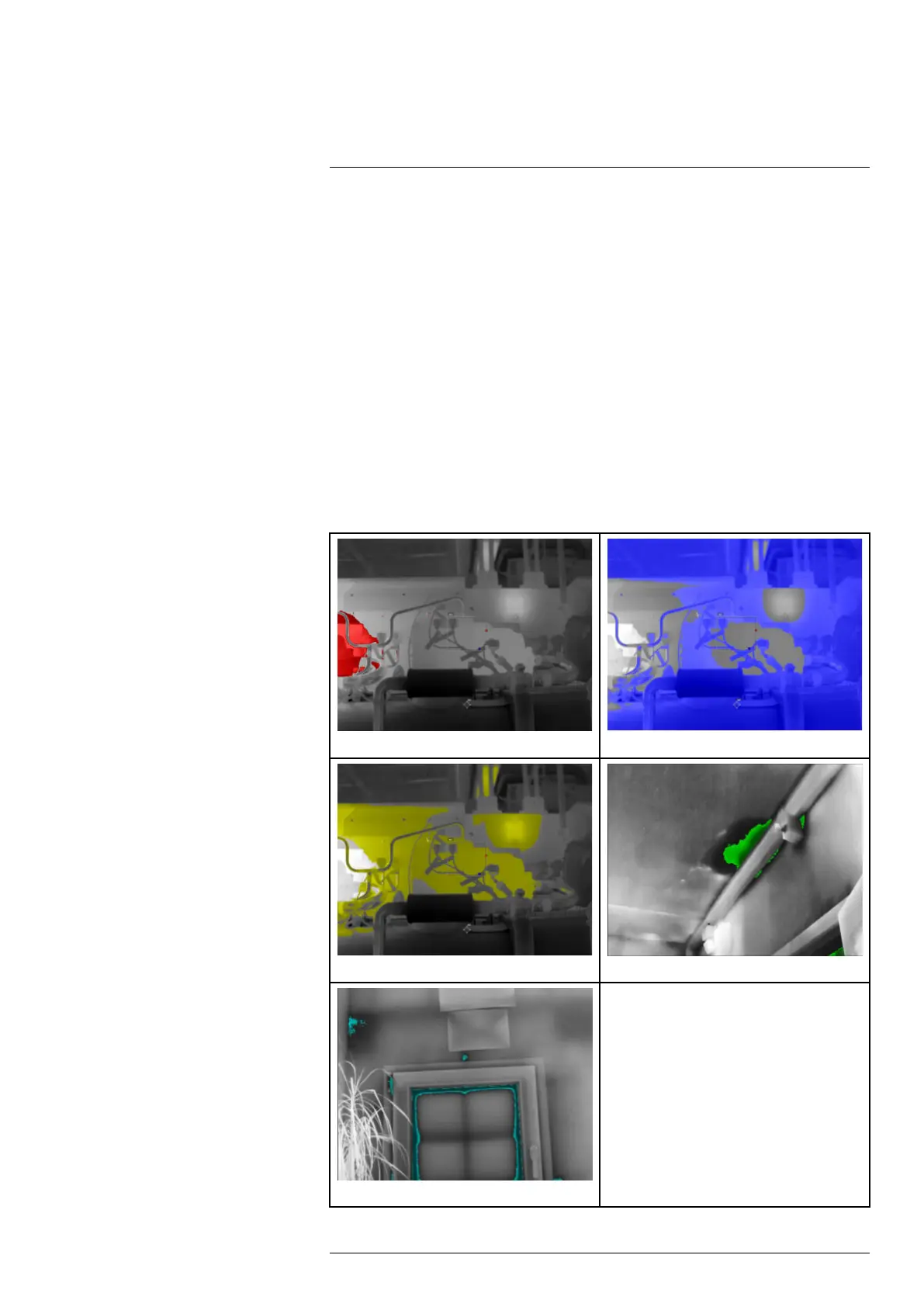

This table explains the different color alarms (isotherms).
Above alarm
Below alarm
Interval alarm
Condensation alarm
Insulation alarm
