Handling the camera
7
7.6 Measuring areas
7.6.1 General
Note The availability of this feature is dependent on the camera model.
The distance measured by the laser distance meter can be used as the basis for area
calculations. A typical application is to estimate the size of a damp stain on a wall.
To measure the area of a surface, you need to lay out a box or circle measurement tool
on the screen. The camera calculates the area of the surface enclosed by the box or
circle tool. The calculation is an estimate of the surface area, based on the measured
distance to the target.

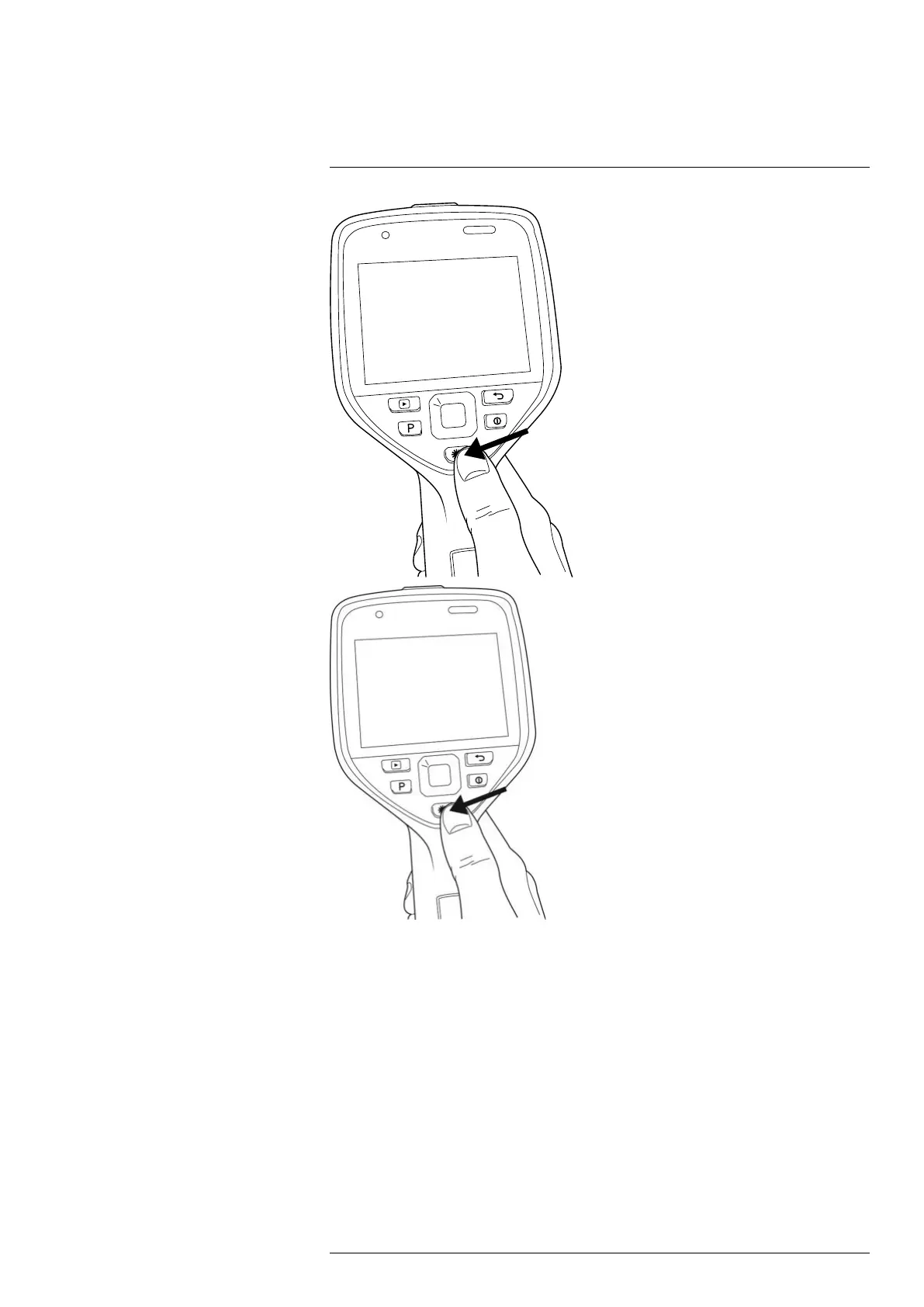

When the laser distance meter is on, you will see a laser dot approximately at the target.
The laser distance meter measures the distance to that target. The camera assumes that
this distance is valid for the entire box or circle tool.
#T810587; r. AD/90967/90989; en-US
31

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the FLIR E54 and is the answer not in the manual?

FLIR E54 Specifications

General IconGeneral
Resolution320 x 240 pixels
Accuracy±2°C (±3.6°F) or ±2% of reading
Field of View24° × 18°
FocusManual
Digital Camera5 MP
Laser Distance MeterNo
Image ModesMSX, Picture-in-Picture
ConnectivityWi-Fi, Bluetooth
Battery Life4 hours
Storage MediaSD card
Weight1 kg
Minimum Focus Distance0.15 m
Spectral Range7.5 – 14 µm
Operating Temperature Range-15°C to 50°C
Storage Temperature Range-40°C to 70°C
Thermal Sensitivity< 0.04°C (40 mK)
