Handling the camera

7.16.2 AutoCal procedure

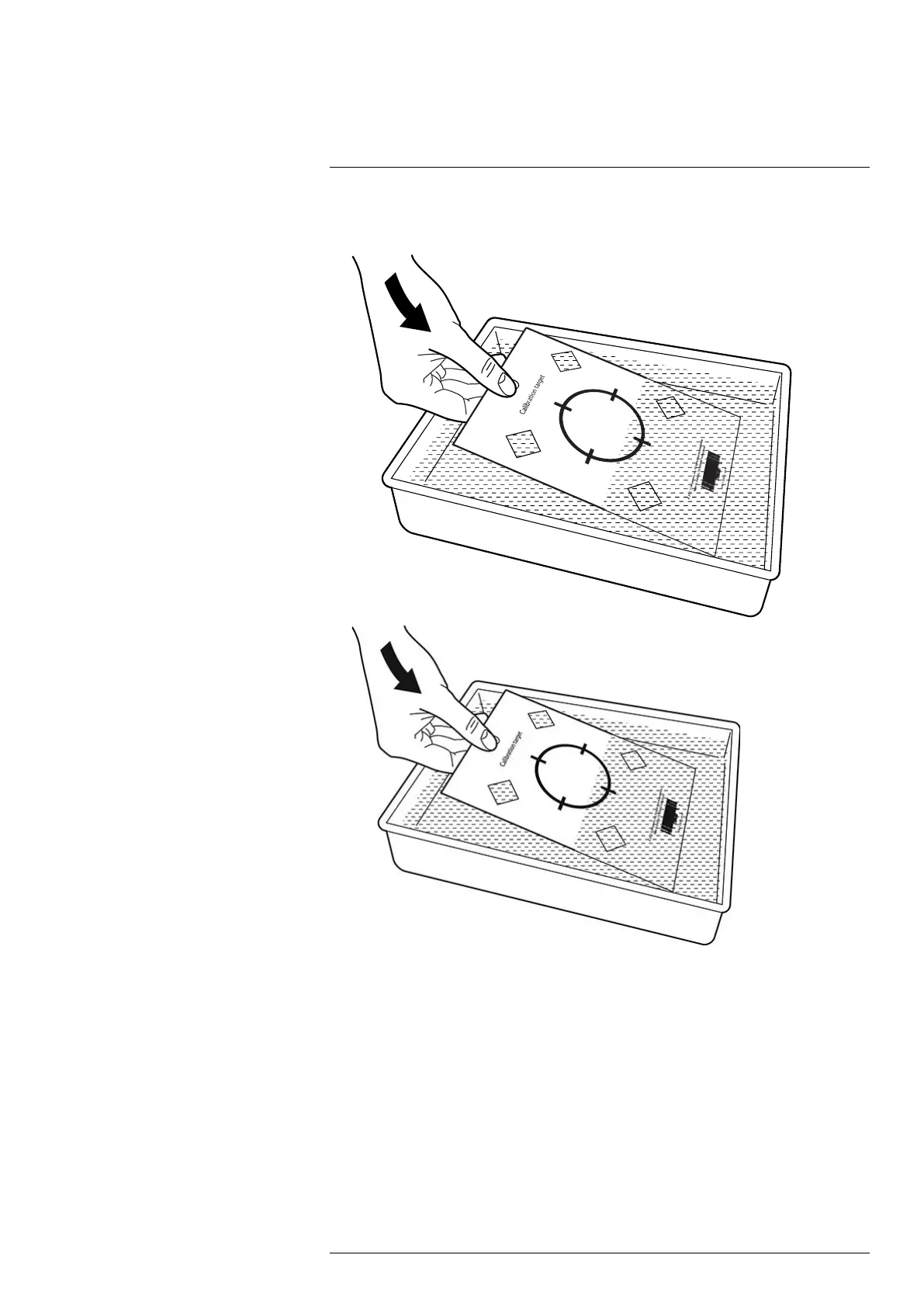

1. Dip the calibration target in water for 1 second and let the excess drip off.

#T810587; r. AD/90967/90989; en-US
