FLIR E54 User Manual

Camera overview
6

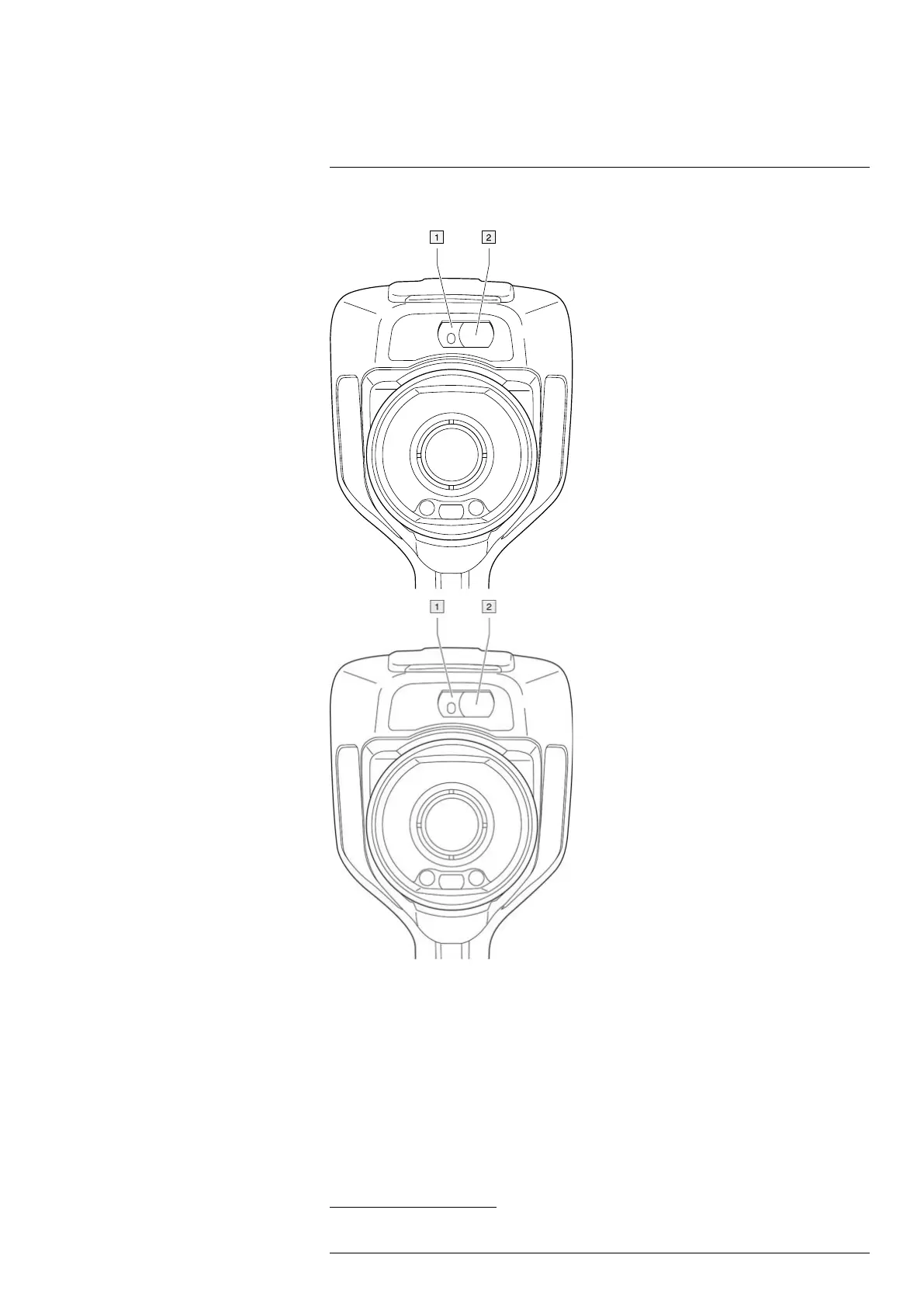

6.3.1 Laser transmitter and receiver
1. Laser transmitter.
2. Laser receiver.
2
6.3.2 Difference in position
This figure shows the difference in position between the laser transmitter and the optical
center of the infrared lens.
#T810587; r. AD/90967/90989; en-US
15
2. This item is dependent on the camera model.

FLIR E54 Specifications

General

Resolution	320 x 240 pixels
Accuracy	±2°C (±3.6°F) or ±2% of reading
Field of View	24° × 18°
Focus	Manual
Digital Camera	5 MP
Laser Distance Meter	No
Image Modes	MSX, Picture-in-Picture
Connectivity	Wi-Fi, Bluetooth
Battery Life	4 hours
Storage Media	SD card
Weight	1 kg
Minimum Focus Distance	0.15 m
Spectral Range	7.5 – 14 µm
Operating Temperature Range	-15°C to 50°C
Storage Temperature Range	-40°C to 70°C
Thermal Sensitivity	< 0.04°C (40 mK)
