Saving and working with images
8
Some FLIR Thermography software has the ability to process UltraMax images. Other
FLIR software will treat the image as a regular image.
To configure the camera for UltraMax, select
(Settings) > Save options & storage >
Image resolution = UltraMax.
8.2 Saving an image
When you save an image, the camera stores the image file in the camera memory.
Note You can also set up the camera to upload images for storage online, see section
9 Cloud connectivity.

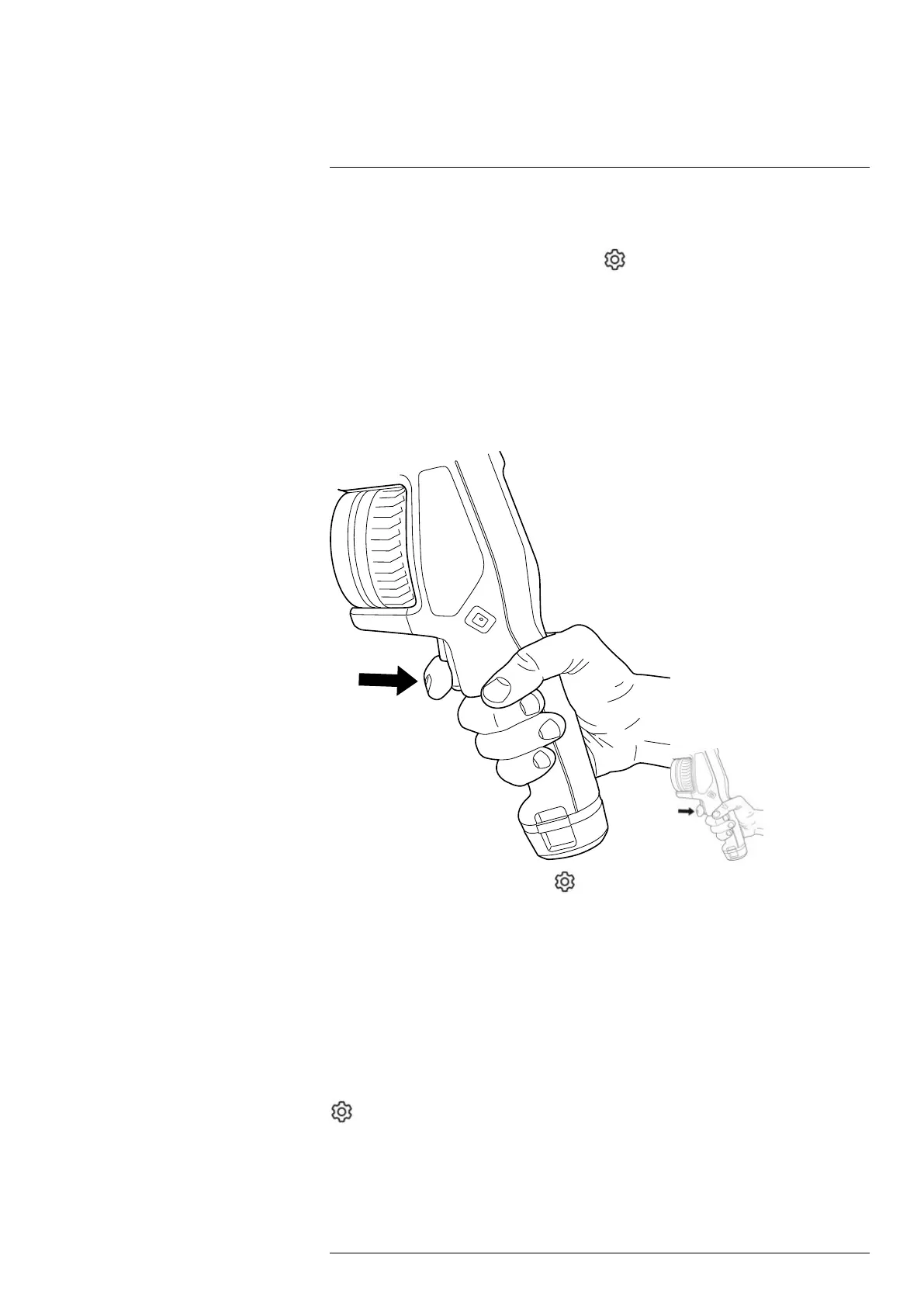

To save an image, pull the trigger.
Note Depending on the settings in (Settings) > Save options & storage, the follow-
ing may also happen:
A preview image is displayed before the image is saved.
An annotation tool or the annotation menu is displayed when the image has been
saved.
8.3 Previewing an image
You can preview an image before you save it. This enables you to see if the image con-
tains the information you want before you save it. You can also adjust and edit the image.
Note The camera must be configured to display a preview image before saving. Select
(Settings) > Save options & storage > Preview image before saving = On.
To preview an image, do the following:
1. To preview an image, pull the trigger. This displays the preview.
2. Manual image adjustment mode is now active. For image adjustment instructions,
see section 11.3 Adjusting the infrared image.
#T810587; r. AD/90967/90989; en-US
59
