Camera overview
6

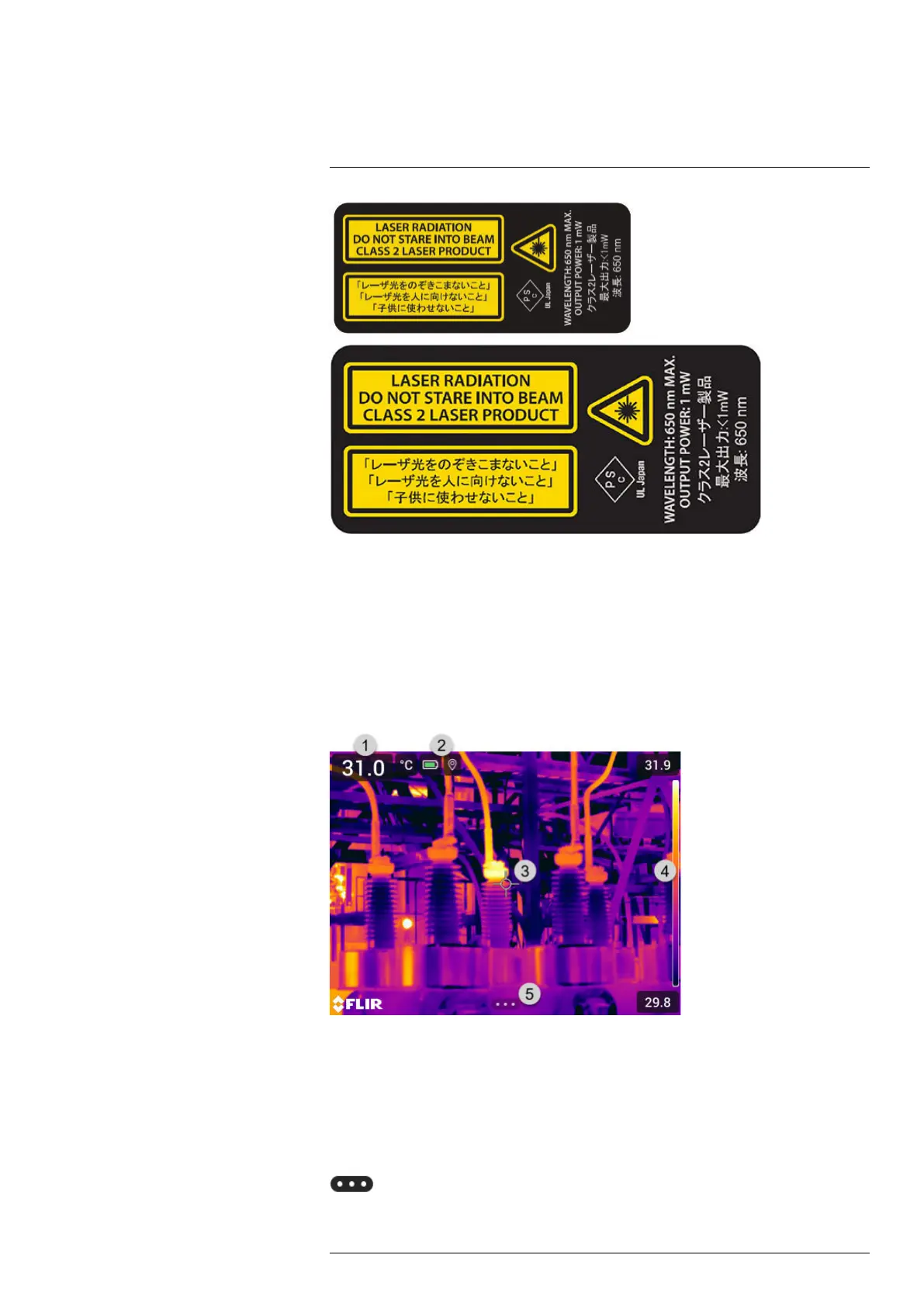

6.3.4 Laser rules and regulations
Wavelength: 650 nm. Maximum output power: 1 mW.
This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant
to Laser Notice No. 50, dated June 24, 2007.
6.4 Screen elements
6.4.1 General
1. Result table.
2. Status icons.
3. Measurement tool (e.g., spotmeter).
4. Temperature scale.
5. Menu system button.
6.4.2 Menu system
To display the menu system, push the navigation pad or tap the menu system button
.
#T810587; r. AD/90967/90989; en-US
17

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the FLIR E54 and is the answer not in the manual?

FLIR E54 Specifications

General IconGeneral
Resolution320 x 240 pixels
Accuracy±2°C (±3.6°F) or ±2% of reading
Field of View24° × 18°
FocusManual
Digital Camera5 MP
Laser Distance MeterNo
Image ModesMSX, Picture-in-Picture
ConnectivityWi-Fi, Bluetooth
Battery Life4 hours
Storage MediaSD card
Weight1 kg
Minimum Focus Distance0.15 m
Spectral Range7.5 – 14 µm
Operating Temperature Range-15°C to 50°C
Storage Temperature Range-40°C to 70°C
Thermal Sensitivity< 0.04°C (40 mK)
