Achieving a good image11
You can choose to hide all camera overlay by pressing the programmable button.

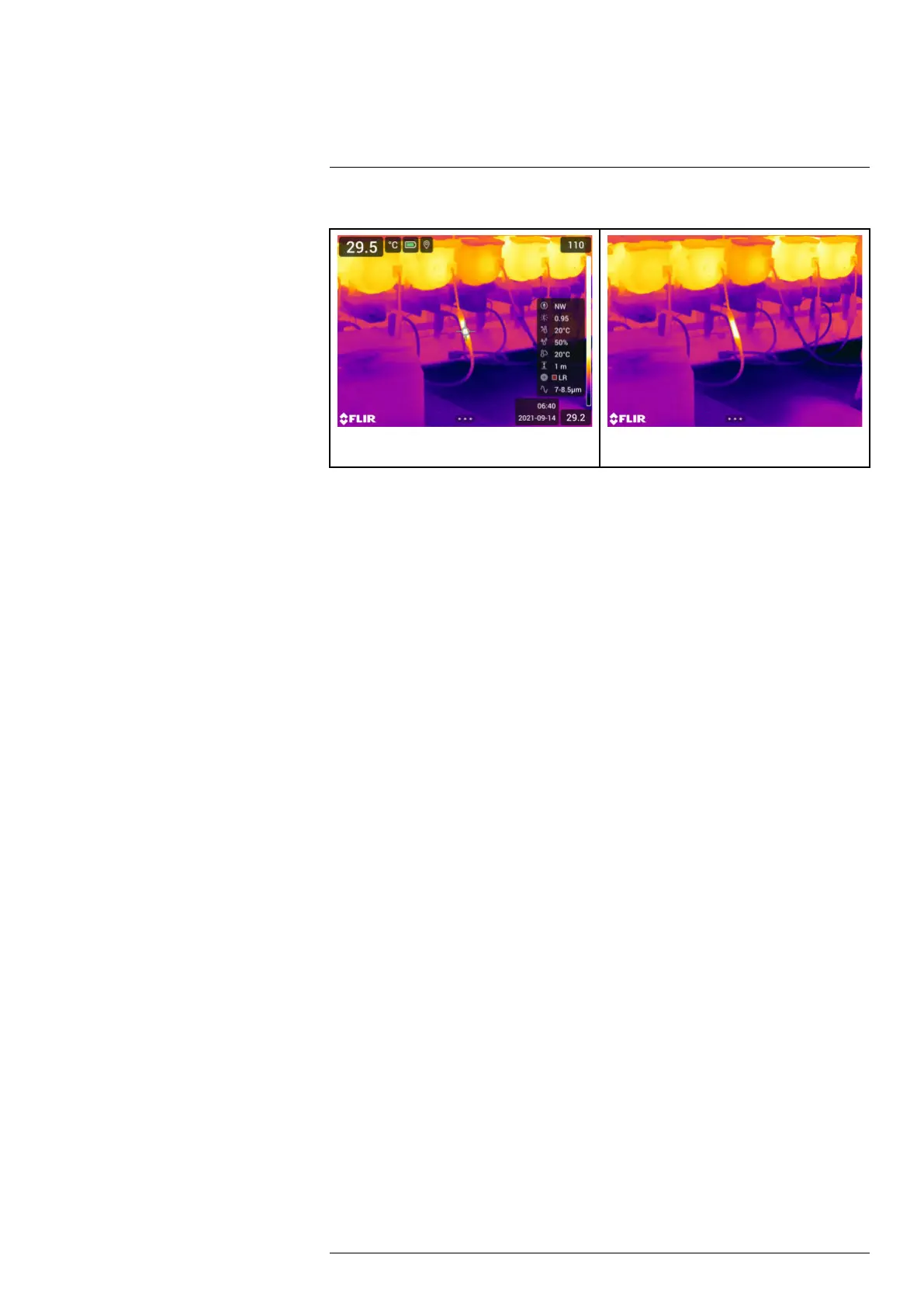

Image with camera overlay and image overlay
information.
Image with all overlay hidden.
Follow this procedure:
1. Push and hold the programmable button. This displays the Programmable button
menu.
2. Push the navigation pad up/down to select the function Hide image overlay graphics .
3. Push the navigation pad to confirm and exit the menu mode.
#T810587; r. AD/90967/90989; en-US
76

FLIR E54 Specifications

General

Resolution	320 x 240 pixels
Accuracy	±2°C (±3.6°F) or ±2% of reading
Field of View	24° × 18°
Focus	Manual
Digital Camera	5 MP
Laser Distance Meter	No
Image Modes	MSX, Picture-in-Picture
Connectivity	Wi-Fi, Bluetooth
Battery Life	4 hours
Storage Media	SD card
Weight	1 kg
Minimum Focus Distance	0.15 m
Spectral Range	7.5 – 14 µm
Operating Temperature Range	-15°C to 50°C
Storage Temperature Range	-40°C to 70°C
Thermal Sensitivity	< 0.04°C (40 mK)
