FLIR E60 User Manual

38,8mm
1,53in
49mm
1,93in
17,2mm
0,68in
2,62in
66,5mm
61,1mm
2,41in
184,7mm
7,27in
116,5mm
4,59in
51,6mm
2,03in
271,8mm
10,7in
55mm
2,17in
0,55in
14mm
7,09in
180,2mm
Tripod Spacer Optional
UNC 1/4"-20
Optical axis
40,5mm
1,59in
20mm
0,79in
20mm
0,79in
67,5mm
2,66in
38,1mm
1,5in
51,6mm
2,03in
37,2mm
1,46in
245,9mm
9,68in
96,2mm
3,79in
Optical axis
0,15in
3,9mm
1,5in
38,1mm
1,53in
38,9mm
Camera with built-in IR lens f=18 mm (25°)
1 2 3 4 5 6 7 8 9 10
1 632 54
A B
C
D
E
F
G
H
F
C
E
G
D
A B
-
Scale
1:2
B
Size
Modified
R&D Thermography
2015-10-28
JOHG

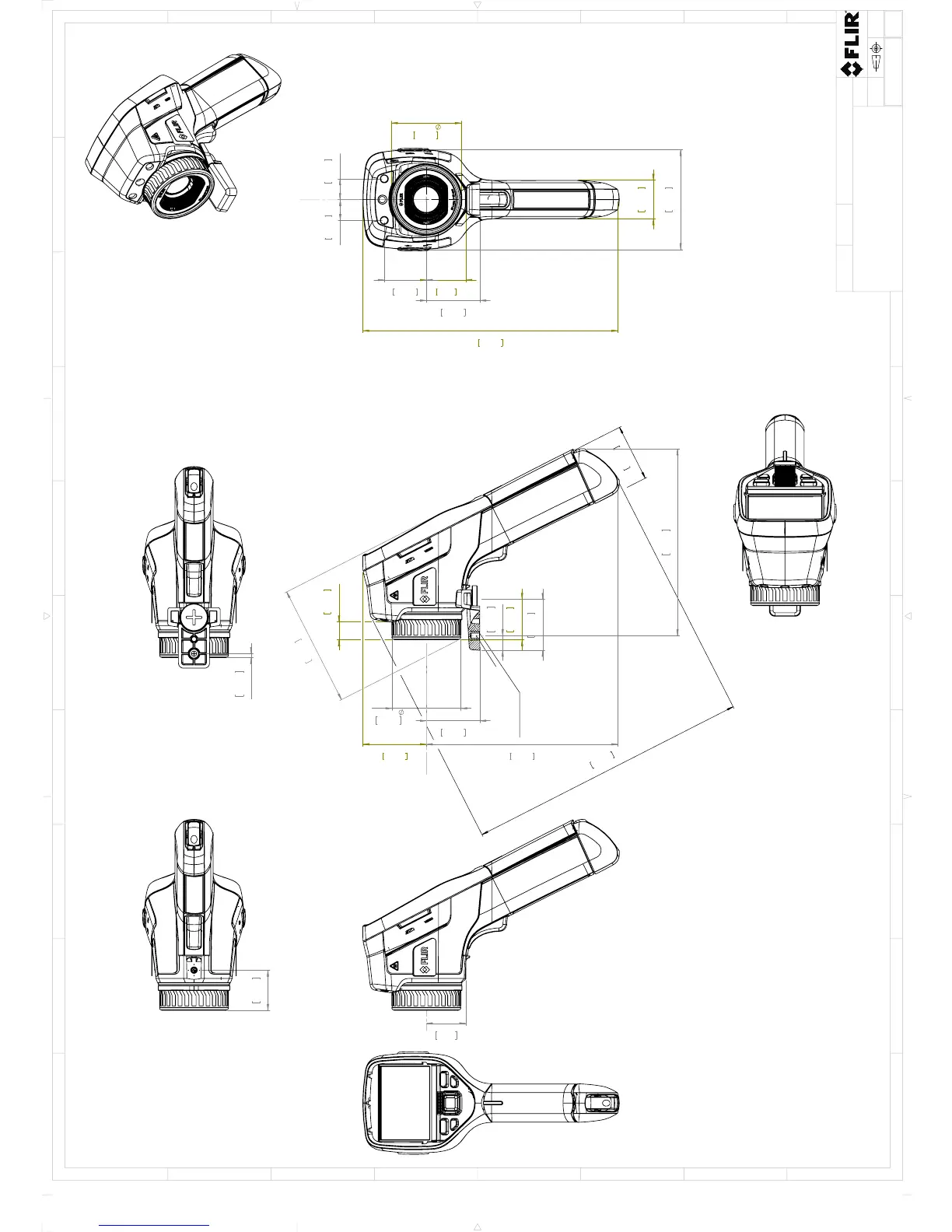

Basic dimensions Flir Exx series
T127869
1(5)
A3
Denomination
Drawn by
Check
Size
Drawing No.
Sheet
7
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.

FLIR E60 Specifications

General

Resolution	320 x 240 pixels
Thermal Sensitivity	<0.05°C at 30°C
Field of View	25° x 19°
Battery Life	4 hours
Spatial Resolution	1.36 mrad
Image Frequency	60 Hz
MeterLink	Yes
Laser Pointer	Yes
Text Annotation	Yes
Storage Media	SD card
Spectral Range	7.5 – 13 µm
Temperature Range	-20°C to +650°C
Display	3.5" LCD touchscreen
Focus	Manual
Accuracy	±2°C or ±2% of reading
Image Modes	Thermal, visual, MSX
Voice Annotation	Yes
Battery Type	Li-Ion battery
Minimum Focus Distance	0.4 m
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Connectivity	Wi-Fi, USB
Image Storage	JPEG
