FLIR E60 User Manual

Application examples27
27.3 Oxidized socket
27.3.1 General
Depending on the type of socket and the environment in which the socket is installed, ox-
ides may occur on the socket's contact surfaces. These oxides can lead to locally in-
creased resistance when the socket is loaded, which can be seen in an infrared image
as local temperature increase.
A socket’s construction may differ dramatically from one manufacturer to another. For
this reason, different faults in a socket can lead to the same typical appearance in an in-
frared image.
Local temperature increase can also result from improper contact between a wire and
socket, or from difference in load.
27.3.2 Figure

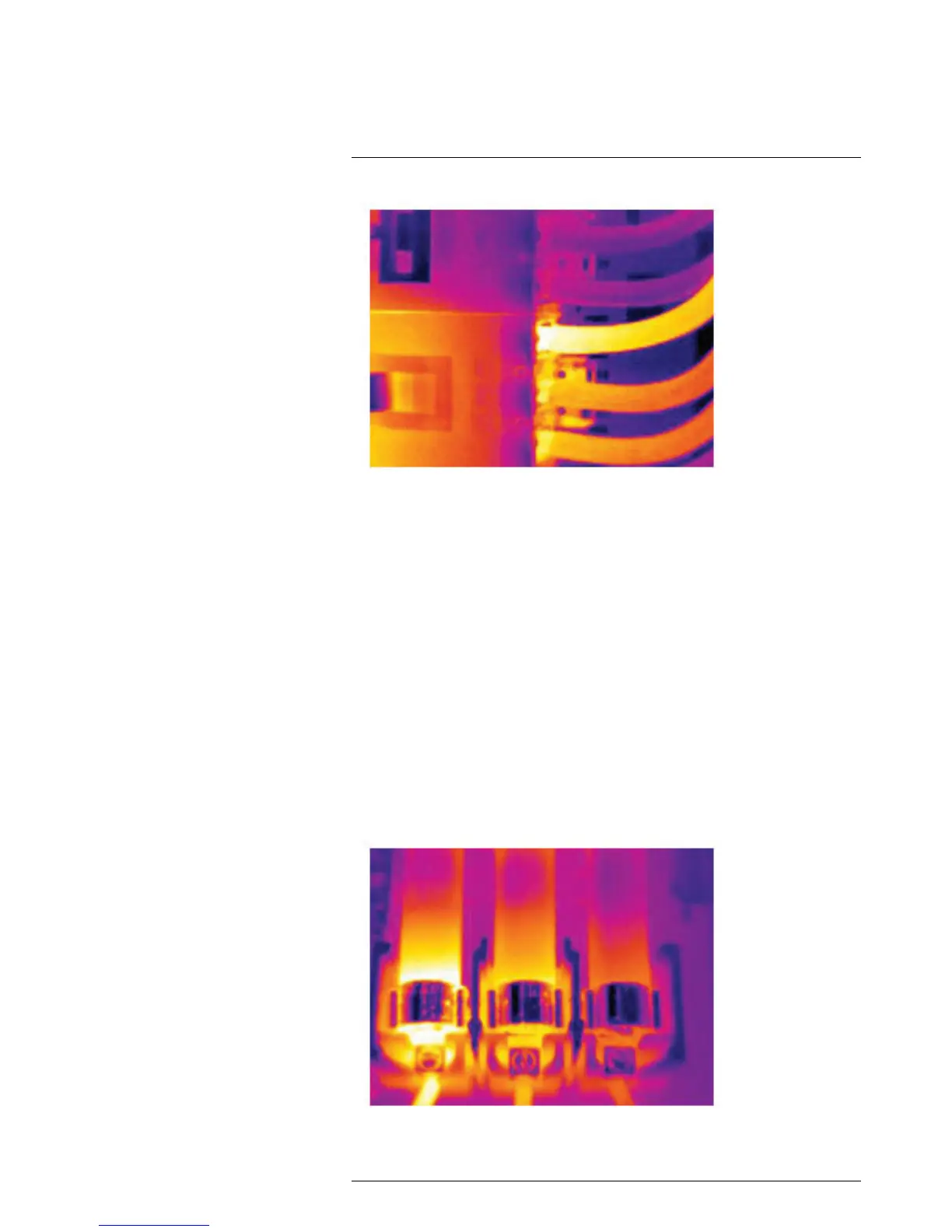

The image below shows a series of fuses where one fuse has a raised temperature on
the contact surfaces against the fuse holder. Because of the fuse holder’s blank metal,
the temperature increase is not visible there, while it is visible on the fuse’s ceramic
material.
#T559845; r. AJ/37554/37554; en-US
134

FLIR E60 Specifications

General

Resolution	320 x 240 pixels
Thermal Sensitivity	<0.05°C at 30°C
Field of View	25° x 19°
Battery Life	4 hours
Spatial Resolution	1.36 mrad
Image Frequency	60 Hz
MeterLink	Yes
Laser Pointer	Yes
Text Annotation	Yes
Storage Media	SD card
Spectral Range	7.5 – 13 µm
Temperature Range	-20°C to +650°C
Display	3.5" LCD touchscreen
Focus	Manual
Accuracy	±2°C or ±2% of reading
Image Modes	Thermal, visual, MSX
Voice Annotation	Yes
Battery Type	Li-Ion battery
Minimum Focus Distance	0.4 m
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Connectivity	Wi-Fi, USB
Image Storage	JPEG
