FLIR E60 User Manual

Handling the camera13
13.3 Adjusting the infrared camera focus

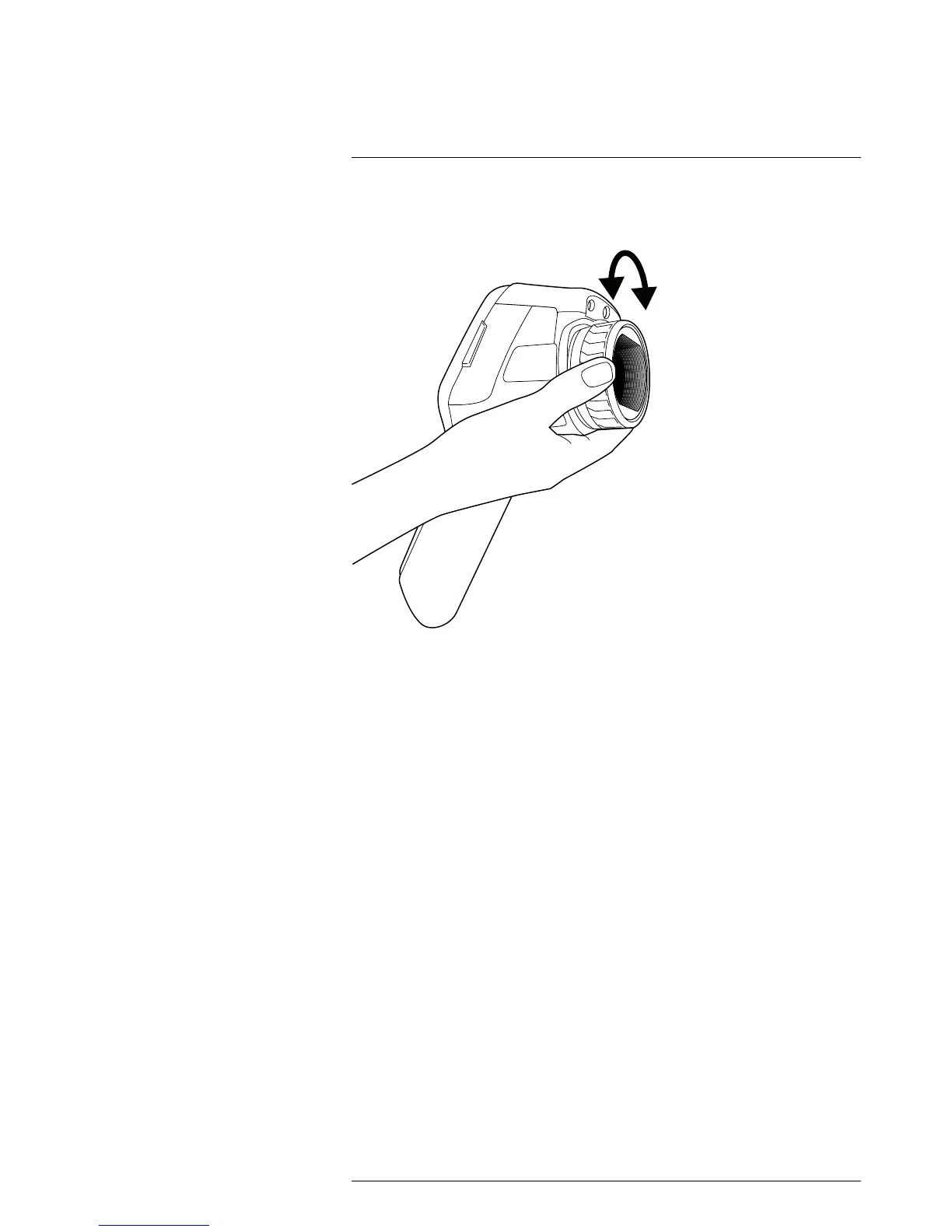

13.3.1 Figure
13.3.2 Procedure
Follow this procedure:
1. Do one of the following:
• For far focus, rotate the focus ring clockwise (with the touch-screen LCD facing to-
ward you).
• For near focus, rotate the focus ring counter-clockwise (with the touch-screen
LCD facing toward you).
Note Do not touch the lens surface when you adjust the infrared camera focus man-
ually. If this happens, clean the lens according to the instructions in 26.2 Infrared lens,
page 132.
Note It is very important to adjust the focus correctly. Incorrect focus adjustment affects
how the image modes Thermal MSX, Thermal, and Picture-in-picture work. It also affects
the temperature measurement.
#T559845; r. AJ/37554/37554; en-US
26

FLIR E60 Specifications

General

Resolution	320 x 240 pixels
Thermal Sensitivity	<0.05°C at 30°C
Field of View	25° x 19°
Battery Life	4 hours
Spatial Resolution	1.36 mrad
Image Frequency	60 Hz
MeterLink	Yes
Laser Pointer	Yes
Text Annotation	Yes
Storage Media	SD card
Spectral Range	7.5 – 13 µm
Temperature Range	-20°C to +650°C
Display	3.5" LCD touchscreen
Focus	Manual
Accuracy	±2°C or ±2% of reading
Image Modes	Thermal, visual, MSX
Voice Annotation	Yes
Battery Type	Li-Ion battery
Minimum Focus Distance	0.4 m
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Connectivity	Wi-Fi, USB
Image Storage	JPEG
