Handling the camera unit8
8.3 Adjusting the position of the camera unit

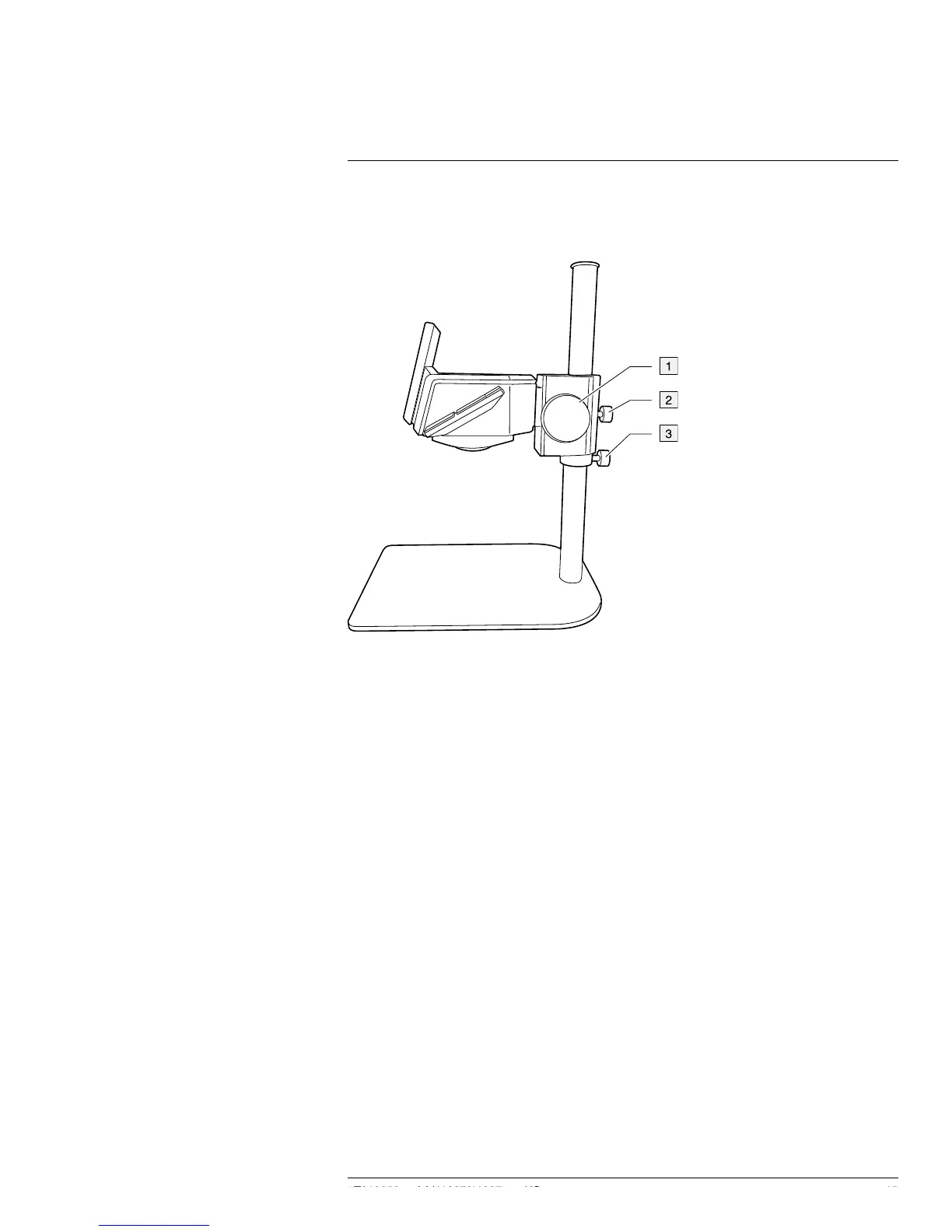

8.3.1 Figure
8.3.2 Explanation
1. Fine-adjustment knob.
2. Stand mount knob.
3. Supporting ring knob.
8.3.3 Procedure
Note Do not touch the lens surface. If this happens, clean the lens according to the in-
structions in 12.2 Infrared lens, page 36.
Follow this procedure:
1. For fine adjustments, turn the fine-adjustment knob.
2. For coarse adjustments, do the following:
2.1. Loosen the stand mount knob and move the stand mount to the desired posi-
tion. Tighten the stand mount knob.
2.2. Loosen the supporting ring knob and move the supporting ring near the stand
mount. Tighten the supporting ring knob.
8.4 Removing the stand mount from the camera
unit
Note Do not touch the lens surface. If this happens, clean the lens according to the in-
structions in 12.2 Infrared lens, page 36.
