5.3Cameracontrol

Pan,tiltandzoom

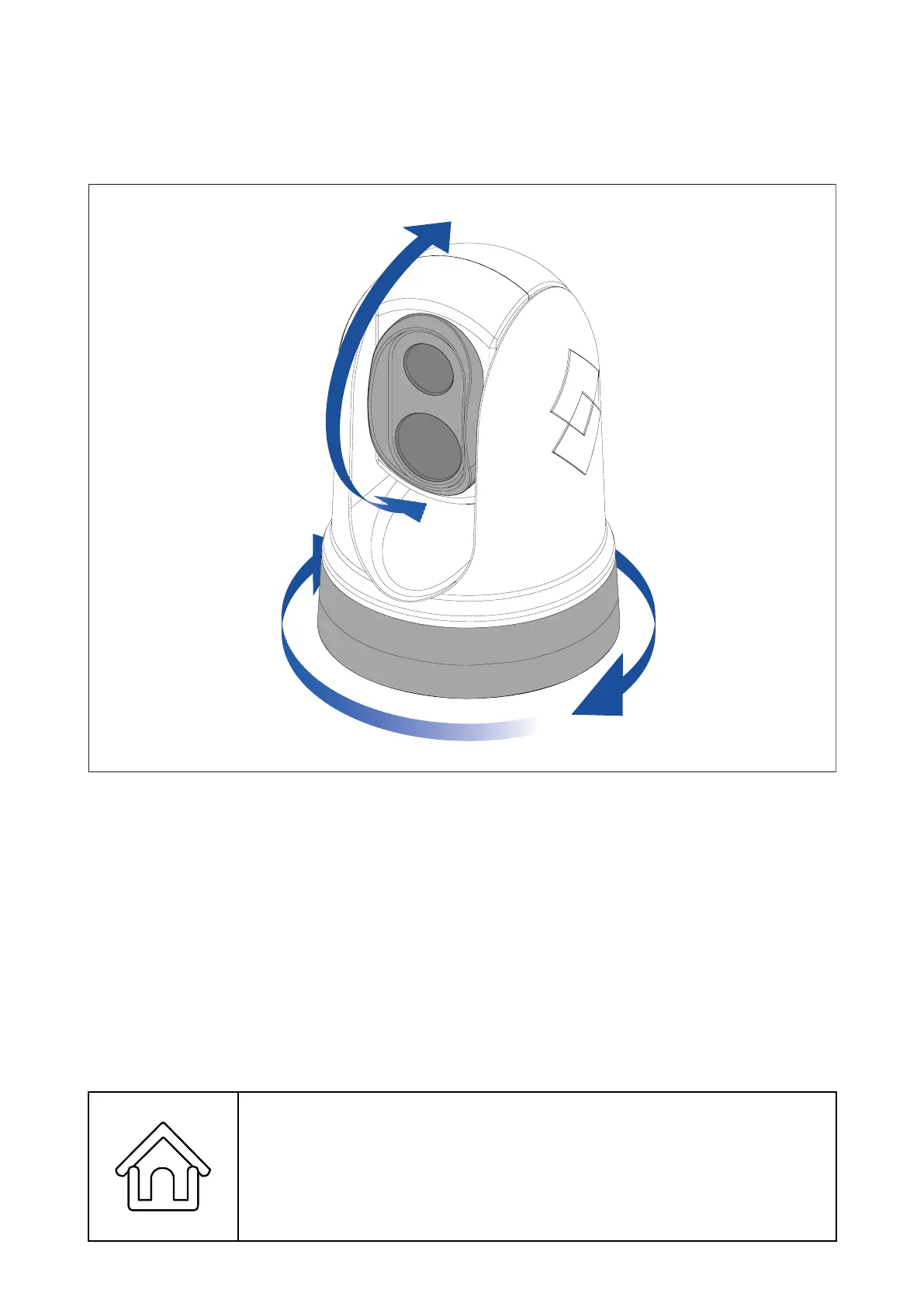

Thecameracontrolsallowforpan(azimuth)andtilt(elevation)ofthecamera,aswellas

zoom(magnication)ofthethermalimage.

•Pancontinuouslythrough360°.

•Tiltto+110°/-90°relativetothecamerabase.

•Zoomthethermalcameraimage.

Y oucancontrolpan,tilt,andzoom,using:

•thecamera’swebbrowserinterface:seep.75—Webinterfaceoperation

•theJoystickonaJCUremotekeypad:seep.82—JCU–2controlsoverview

•thetouchscreenofacompatibleRaymarineMFD:seethe“Videoapp”sectioninthe

documentationsuppliedwithyourMFD.

Homeposition

Thehomepositionisapresetpositionforthecamera.

Thehomepositionusuallydenesausefulreferencepoint—forexample,straightahead

andlevelwiththehorizon.

•Thehomeiconisdisplayedmomentarilywhenyoucommandthe

cameratomovetoitshomeposition.

•Thehomeiconashes3timeswhenyousetthecamera’shome

position.

Cameracontroloptionsandstatusicons

FLIR M300C User Manual
