FLIR M3200 Series User Manual

Using the Main Menu17

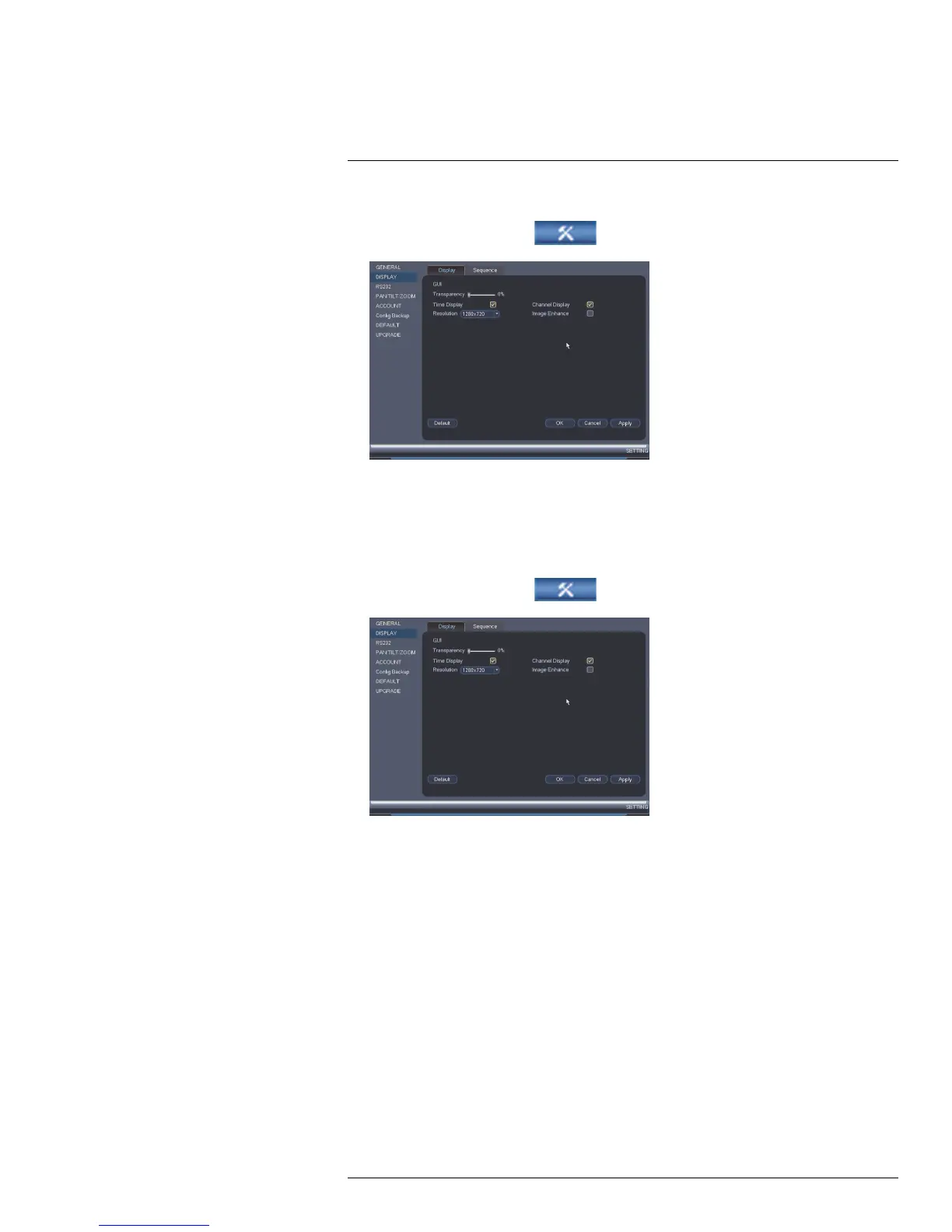

To set the monitor resolution:
1. From the Main Menu, click
and then click Setting>Display>Display.
2. Under Resolution, select the correct resolution for your monitor: 1920x1080,
1280x1024, 1280x720, or 1024x768.
3. Click OK to save changes. Click OK again to restart the system using the new
resolution.
To configure other display settings:
1. From the Main Menu, click
and then click Setting>Display>Display.
2. Configure the following:
• Transparency: Select the menu transparency.
• Time Display: Check to show the time on the monitor.
• Channel Display: Check to show the channel names on the monitor.
• Image Enhance: Check for the system to digitally improve the video quality on the
live display. This setting does not affect recordings.
3. Click OK to save changes.
17.3.23 Configuring RS232 for a PTZ Keyboard
You can use the RS232 connector on the system to connect to a FLIR PTZ keyboard (not
included) via RS232.
#LX400051; r. 1.0/23100/23101; en-US
70
